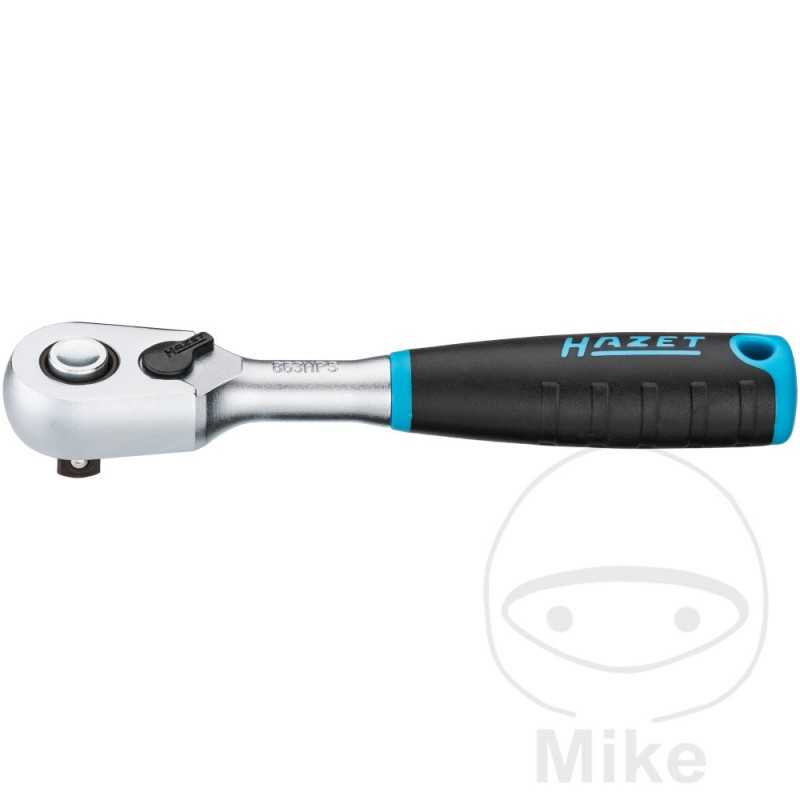

HAZET Rattle 1/4 HIPER 605.08.04

The small drive angle (4°) allows it to be used in the tightest installation spaces, e.g. motors, mechanical engineering, agricultural vehicles and equipment, renewable energy (solar, wind turbines)

Extremely superior performance to ratchet of comparable dimensions

Shifter lockout feature offers protection against inadvertent shifting

Longer useful life thanks to the use of last generation lubricants in the ratchet mechanism

Tight manufacturing tolerances ensure protection against penetrating contamination

HAZET's internal quality standards guarantee a load capacity well above the norm

High quality, easy to clean, corrosion resistant

Suspension option integrated into the handle

Static tightening torque tested by VPA according to DIN 3122: 100 Nm (DIN: 62 Nm)

Quick release safety connection

Removable locking of socket inserts

Quick release of the inserted tool by pressing the release button with one hand

Technical data

Number of teeth: 90

Actuation angle: 4

with ball closure

2-component HAZET handle

Surface finish: chrome

DIN 3122, ISO 3315

Made in Germany

Outlet: 6.3 mm (1/4 inch) square

Dimensions / length: 116 mm

For manual operation

Hiper - The Original

Developed and produced "Made in Germany

Static AND dynamic - double precision in perfection

High continuous load for longevity

Lever lock function: protection against inadvertent switching

Extremely high performance with the same dimensions

Tight manufacturing tolerances ensure protection against dirt ingress

Ergonomic switch lever

Suspension option integrated in the handle
