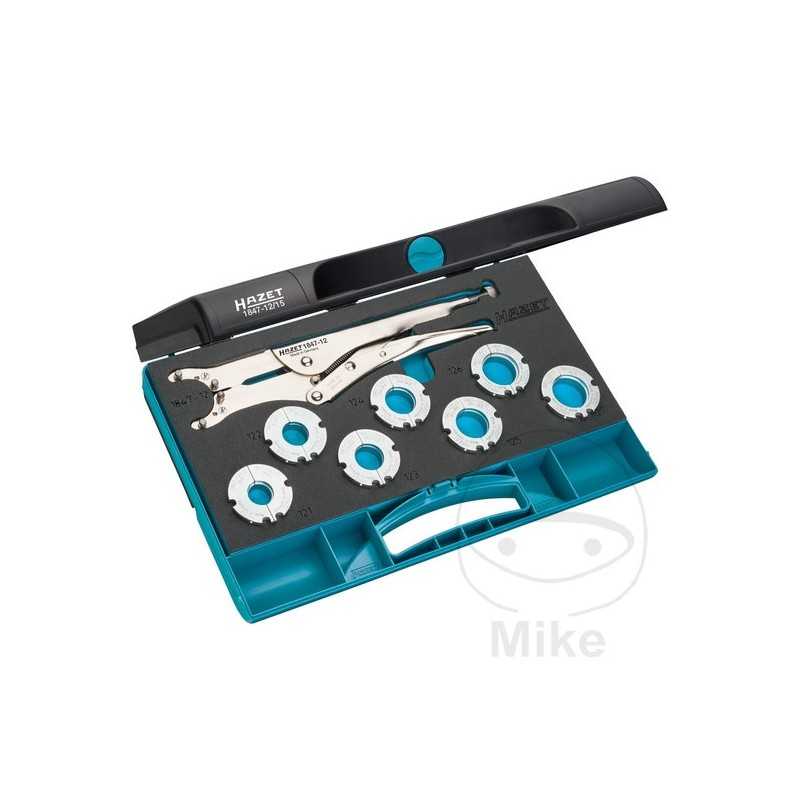

HAZET circular pliers set 617.02.89

circular pliers set

App:

Professional, centered locking ring insertion,

For example, during the assembly of the joint on the drive shaft.

Easier, damage-free driveshaft seal installation:

The damages to the teeth of the joint and the axis are during the assembly.

Articulation of the drive shaft with internal circlip prevented.

Easy fixing of the locking pliers on the circlip.

When you hit the joint, the tongs automatically slide down.

Safe work without damaging the bellows.

Suitable for drive shafts of all manufacturers.

One-handed operation of the pliers, no more auxiliary tools needed.



A tip for the application:

Insert the matching half shells into pliers depending on the diameter of the shaft.

Place the pliers on the serration with a pre-assembled circlip and tighten.

The pre-positioning of the joint by the conical shape of the pliers allows

Facilitates the insertion of teeth without damage.

Suitable for almost all common vehicles registered in Europe.



Contents:

Number of tools: 15



1 ring clamp 1847-12

2 half shells 1847-121 / 2 (Ø 19.0 mm)

2 half shells 1847-122 / 2 (Ø 21.4 mm)

2 half shells 1847-123 / 2 (Ø 22.3 - 23.0 mm)

2 half shells 1847-124 / 2 (Ø 23.8 - 24.6 mm)

2 half shells 1847-125 / 2 (Ø 26.2 - 26.9 mm)

2 half shells 1847-126 / 2 (Ø 28.5 - 29.2 mm)

2 half shells 1847-127 / 2 (Ø 30.0 mm)

Smart Case (1/3) 165-L

Safety insert system, 2-component soft foam insert. Insert also suitable for HAZET Wizard



Made in Germany
