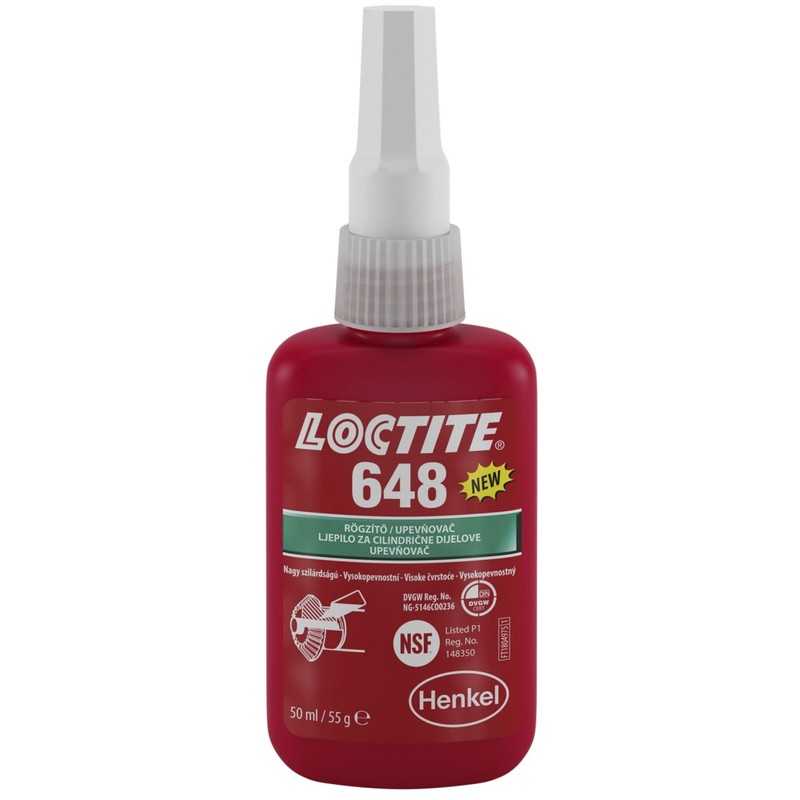

LOCTITE Low viscosity high strength retainer compound bottle 648 50 ML 648 50 ML 1109403

LOCTITE 648 is a high strength, low viscosity retaining compound commonly used for holding gears and sprockets to drive shafts and rotors on electric motor shafts.

LOCTITE® 648 is a high-strength, low-viscosity, fluorescent green, urethane methacrylate acrylic anaerobic retaining compound designed for bonding tight-fitting cylindrical components. Prevents loosening and leakage due to shock and vibration. Commonly used to fasten gears and sprockets to drive shafts and rotors on electric motor shafts. Provides solid curing performance.

Recommended for the permanent union of cylindrical parts that do not require disassembly.

For example, in retention of transmission shafts, assembly of keys, and fixation of bearings, transmission systems, bearings, bushings, shafts.

It offers high resistance on all metals, including passive substrates (for example, stainless steel).

Ideal for retaining mounts with clearance or interference.

DVGW approval (EN 751-1): NG 5146C00236

P1 NSF Reg. No.: 148350

WRAS (BS 6920) approval: 0808532

technical information

Main Characteristics Suitable for Lightly Oiled Surfaces, Resistance: High Resistance, Temperature Resistant

GREEN COLOR

Shear Strength, Steel 27.0 N/mm² (3900.0 psi )

Approvals / Certificates / Specifications DVGW approval (EN 751-1): NG 5146C00236, NSF P1 Reg No: 148350, WRAS (BS 6920): 0808532

Gap filler 0.15 mm

Substrates Metal: Steel

Operating temperature -55.0 - 180.0 °C (-65.0 - 355.0 °F )

Fixation time 3.0 min

Viscosity 500.0 mPa.s (cP)
