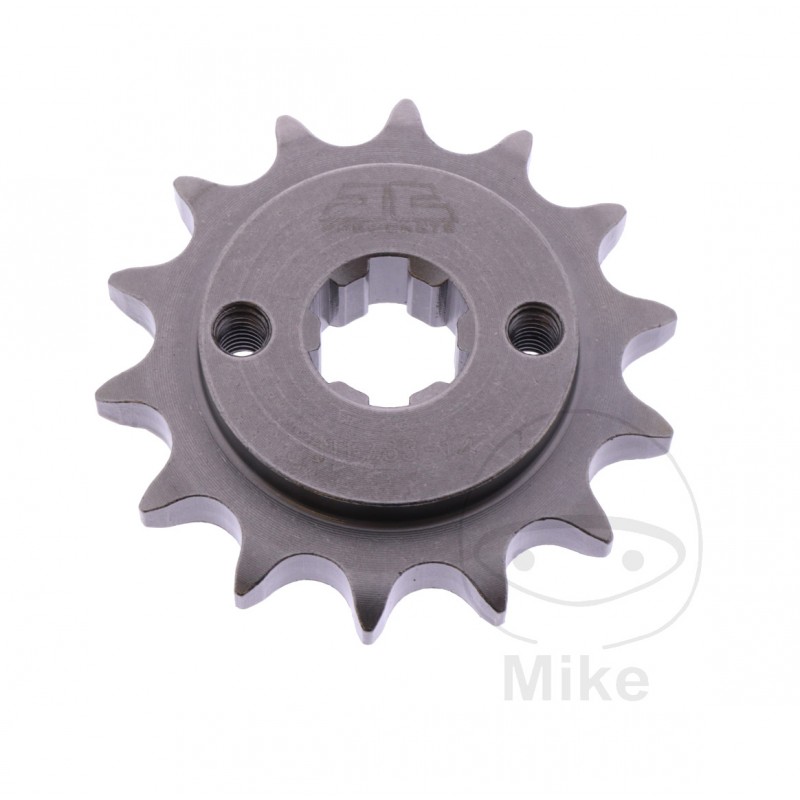

JT SPROCKETS Transmission drive pinion DIV 428 7260774

JT Sprockets' production plant is currently the largest and most modern sprocket and pinion production plant in the world.
equipped with state-of-the-art CNC production machines.
JT Sprockets produces the full range of sprockets and sprockets for the aftermarket and original equipment.

Each sprocket and chain wheel goes through 25 production stages and undergoes more than ten individual quality checks before successfully leaving the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.
After post heat treatment, each item is checked by hand - this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 14 MM
MAX INTERNAL DIAMETER: 17 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 30 MM
WIDTH: 11.8MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Benelli BN 125 CBS 2018-2025
COMPATIBLE WITH QJMotor TRX 125 CBS 2024-2025
