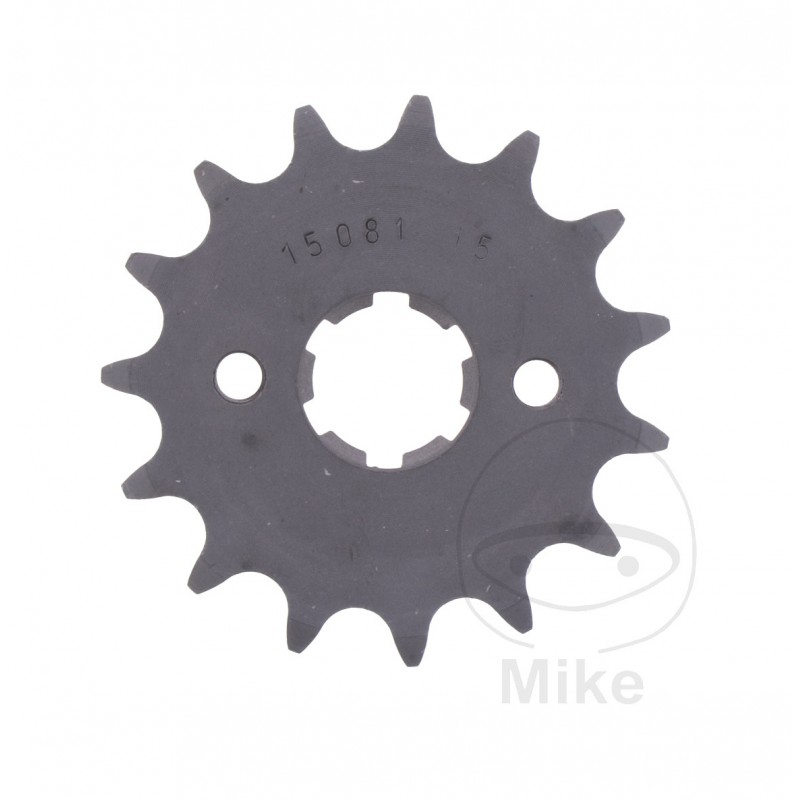

ESJOT DIV 428 Transmission Drive Pinion 7260775

ESJOT sprockets have been specially developed to meet the high requirements of original equipment manufacturers and are among the best sprockets on the global market. Special steel, high-quality case hardening, and precise meshing ensure exceptionally high strength and durability, ideal for intensive wear conditions in all areas.

- 16MnCR 5 steel - Machined on CNC automatic lathes - Case hardened to 700 HV 40 with an insertion depth of 0.4 mm - Modern broaching machines ensure a precise fit on the drive shaft - Concentricity and axial runout tolerance less than 0.1 mm - 100% Made in Germany - OEM quality
DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 9.1MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH Keeway K-Light 125 ie CBS 2023-2025
COMPATIBLE WITH Keeway K-Light 125 ie Sport Scrambler CBS 2018-2022
COMPATIBLE WITH Keeway Speed 125 2006-2012
COMPATIBLE WITH Keeway Superlight 125 2006-2011
COMPATIBLE WITH Motorhispania NKR 125 CBS 2020-2021
COMPATIBLE WITH Motorhispania NKZ 125 CBS 2017-2021
COMPATIBLE WITH Motorhispania Revenge 125 CBS 2018-2024
COMPATIBLE WITH Motorhispania Revenge 125 Bravo Edition CBS 2020-2024
COMPATIBLE WITH Motorhispania WYN 125 CBS 2017-2021
COMPATIBLE WITH Online VT 125 ABS Euro5 2024-2025
COMPATIBLE WITH Online VT 125 CBS Euro5 2022-2025
