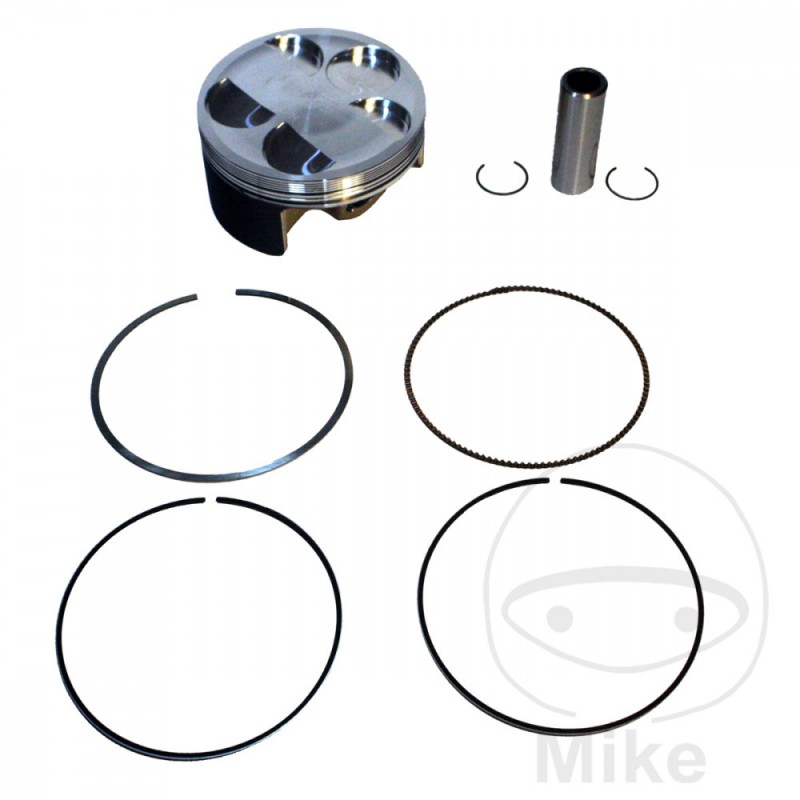

ATHENA forged piston kit 76.97 MM B 756.65.81

Athena piston set

For over 10 years Athena has worked with the best motocross racing teams in the world to develop pistons.

All piston models are made from aluminum alloys and have a perfect blend of nickel, copper and silicon.

Designed and manufactured with the best technology available.

The careful selection of top quality raw materials, together with the latest mechanical engineering techniques, guarantee the lightness and resistance of the pistons,

to improve engine performance and durability. Forged pistons are more temperature resistant and durable than cast ones.

Athena piston sets are supplied complete with rings, pins and clips.

Piston diameter: 76.97 mm (B)

Piston Material: Forged

Piston pin diameter: 16 mm

Compression Ratio: 12.5:1
VERSION: EXORBITANCE
PISTON DIAMETER: 76.97 MM
PISTON PIN: 16MM
QUALITY: FORGED
COMPRESSION RATIO: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG11W 5PH2 Bastidores: CG11W henceforth00101-- 2001
COMPATIBLE WITHYamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG11W 5PH6 Bastidores: CG11W henceforth04395-- 2002
COMPATIBLE WITHYamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG16W 5UM2 Bastidores: CG16W henceforth00029-- 2003
COMPATIBLE WITHYamaha WR 250 F 38,7/28,6 CV, 28,5/21 kw 1cil. CG16W 5UM6 Bastidores: CG16W henceforth06110-- 2004
COMPATIBLE WITHYamaha YZ 250 F 4T 41,5 CV, 30,5 kw 1cil. CG10C 5NL2 Bastidores: CG10C henceforth04386-- 2001
COMPATIBLE WITHYamaha YZ 250 F 4T 41,5 CV, 30,5 kw 1cil. CG10C 5SG2 Bastidores: CG10C henceforth08691-- 2002
COMPATIBLE WITHYamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG14C 5UL2 Bastidores: CG14C henceforth00240-- 2003
COMPATIBLE WITHYamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG18C 5XC2 Bastidores: CG18C henceforth00211-- 2004
COMPATIBLE WITHYamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG21C 5XC6 Bastidores: CG21C henceforth00101-- 2005
COMPATIBLE WITHYamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG25C 5XCA Bastidores: CG25C henceforth00175-- 2006
COMPATIBLE WITHYamaha YZ 250 F 4T 42 CV, 31 kw 1cil. CG27C 5XCH Bastidores: CG27C henceforth00451-- 2007
