JT SPROCKETS Front pinion fine gear 15 TEETH 520 Ø24/28 726.35.77

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry. ,

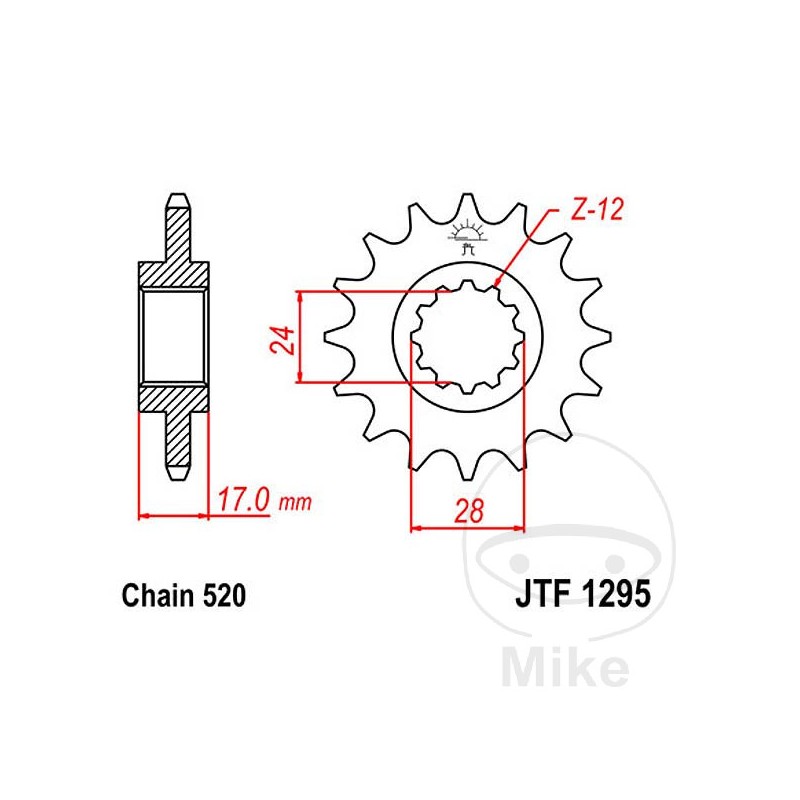

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 24 MM
MAX INTERNAL DIAMETER: 28 MM
INNER GEAR (QUANTITY OF TEETH): 12
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 17MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
HONDA CBR 600 F 100 CV, 74 KW 4CIL. PC25 M BASTIDORES: PC25-2000055-PC25-2011277 1991
COMPATIBLE WITHHONDA CBR 600 F 100 CV, 74 KW 4CIL. PC25 N BASTIDORES: PC25-2101435-PC25-2115035 1992
COMPATIBLE WITHHONDA CBR 600 F 27 CV, 20 KW 4CIL. PC25 M BASTIDORES: PC25-4000001-PC25-4000400 1991
COMPATIBLE WITHHONDA CBR 600 F 27 CV, 20 KW 4CIL. PC25 N BASTIDORES: PC25-4100001-PC25-4100780 1992
COMPATIBLE WITHHONDA CBR 600 F 27 CV, 20 KW 4CIL. PC25 P BASTIDORES: PC25-4200001-PC25-4200735 1993
COMPATIBLE WITHHONDA CBR 600 F 34 CV, 25 KW 4CIL. PC25 R BASTIDORES: PC25-6000001-PC25-6000660 1994
COMPATIBLE WITHHONDA CBR 600 F 34 CV, 25 KW 4CIL. PC31 S BASTIDORES: PC31-6000001-PC31-6000400 1995
COMPATIBLE WITHHONDA CBR 600 F 34 CV, 25 KW 4CIL. PC31E T BASTIDORES: PC31E-TM000001-- 1996
COMPATIBLE WITHHONDA CBR 600 F 34 CV, 25 KW 4CIL. PC31E V BASTIDORES: PC31E-VM100001-- 1997
COMPATIBLE WITHHONDA CBR 600 F 34 CV, 25 KW 4CIL. PC31E W BASTIDORES: PC31E-WM200001-- 1998
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC25 M BASTIDORES: PC25-3000001-PC25-3000036 1991
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC25 N BASTIDORES: PC25-3100001-PC25-3100371 1992
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC25 P BASTIDORES: PC25-3200001-PC25-3200406 1993
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC25 R BASTIDORES: PC25-3300001-PC25-3300029 1994
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC31 S BASTIDORES: PC31-3000001-PC31-3000061 1995
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC31C T BASTIDORES: PC31C-TM000001-- 1996
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC31C V BASTIDORES: PC31C-VM100001-- 1997
COMPATIBLE WITHHONDA CBR 600 F 50 CV, 37 KW 4CIL. PC31C W BASTIDORES: PC31C-WM200001-- 1998
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC25 P BASTIDORES: PC25-2200003-PC25-2213156 1993
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC25 R BASTIDORES: PC25-2300691-PC25-2312054 1994
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC31 S BASTIDORES: PC31-2000057-PC31-2010707 1995
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC31B T BASTIDORES: PC31B-TM000001-- 1996
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC31B V BASTIDORES: PC31B-VM100001-- 1997
COMPATIBLE WITHHONDA CBR 600 F 98 CV, 72 KW 4CIL. PC31B W BASTIDORES: PC31B-WM200001-- 1998
