JT SPROCKETS Front pinion fine gear 17 TEETH 520 Ø26/30 726.00.38

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

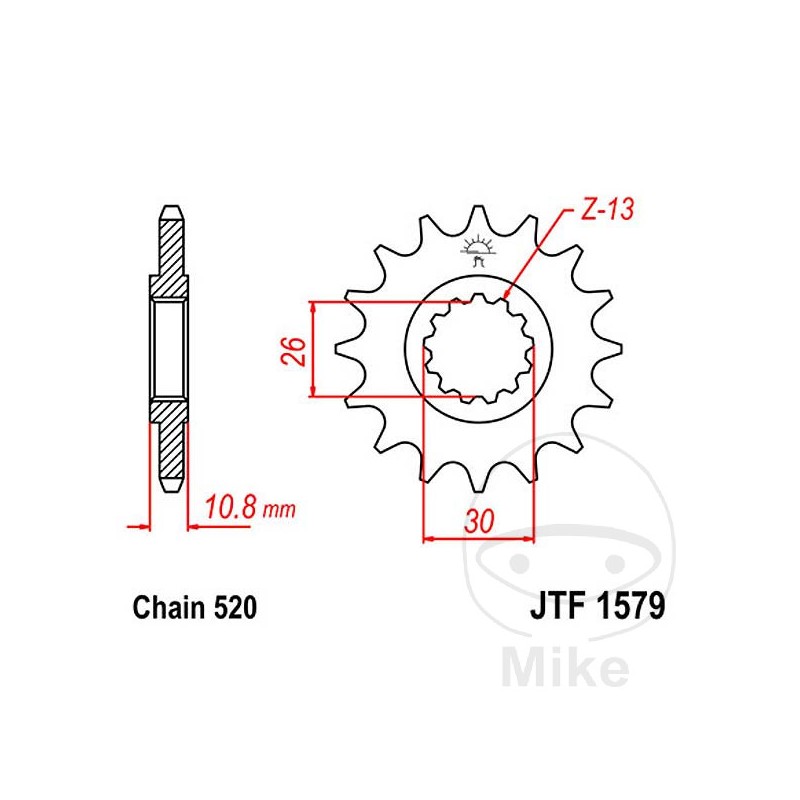

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 26 MM
MAX INSIDE DIAMETER: 30 MM
INNER GEAR (QUANTITY OF TEETH): 13
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10.8MM
VERSION: STANDARD
QTY TEETH: 17


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN011 4XV1 Bastidores: RN011 henceforth00301-- 1998
COMPATIBLE WITHYamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN011 4XV7 Bastidores: RN011 henceforth09302-- 1999
COMPATIBLE WITHYamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN041 5JJ1 Bastidores: RN041 henceforth00301-- 2000
COMPATIBLE WITHYamaha YZF-R1 1000 150 CV, 110 kw 4cil. RN041 5JJ8 Bastidores: RN041 henceforth24488-- 2001
COMPATIBLE WITHYamaha YZF-R1 1000 152 CV, 112 kw 4cil. RN091 5PW1 Bastidores: RN091 henceforth00301-- 2002
COMPATIBLE WITHYamaha YZF-R1 1000 152 CV, 112 kw 4cil. RN095 5PW7 Bastidores: RN095 henceforth00301-- 2003
COMPATIBLE WITHYamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY1 Bastidores: RN121 henceforth00301-- 2004
COMPATIBLE WITHYamaha YZF-R1 1000 172 CV, 126 kw 4cil. RN121 5VY7 Bastidores: RN121 henceforth16418-- 2005
COMPATIBLE WITHYamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYE Bastidores: RN126 henceforth00301-- 2006
COMPATIBLE WITHYamaha YZF-R1 1000 175 CV, 129 kw 4cil. RN126 5VYR Bastidores: RN126 henceforth03661-- 2006
COMPATIBLE WITHYamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C81 Bastidores: RN191 henceforth00301-- 2007
COMPATIBLE WITHYamaha YZF-R1 1000 180 CV, 132 kw 4cil. RN191 4C88 Bastidores: RN191 henceforth13277-- 2008
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14B1 Bastidores: RN221 henceforth00301-- 2009
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BC Bastidores: RN221 henceforth06659-- 2010
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN221 14BR Bastidores: RN221 henceforth09717-- 2011
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KB8 Bastidores: RN225 henceforth00301-- 2012
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 1KBT Bastidores: RN225 henceforth02227-- 2013
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG1 Bastidores: RN225 henceforth03557-- 2014
COMPATIBLE WITHYamaha YZF-R1 1000 182 CV, 134 kw 4cil. RN225 2SG5 Bastidores: RN225 henceforth03779-- 2014
COMPATIBLE WITHYamaha YZF-R1 1000 200 CV, 147 kw 4cil. RN321 2CR1 Bastidores: RN321 henceforth00301-- 2015
COMPATIBLE WITHYamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN012 4XV2 Bastidores: RN012 henceforth00301-- 1998
COMPATIBLE WITHYamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN012 4XV8 Bastidores: RN012 henceforth04773-- 1999
COMPATIBLE WITHYamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN042 5JJ7 Bastidores: RN042 henceforth00301-- 2000
COMPATIBLE WITHYamaha YZF-R1 1000 98 CV, 72 kw 4cil. RN042 5JJA Bastidores: RN042 henceforth00864-- 2001
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN321 2CRC Bastidores: RN321 henceforth03306-- 2016
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN491 BX41 Bastidores: RN491 henceforth00301-- 2017
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX46 Bastidores: RN497 henceforth00301-- 2018
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN497 BX4D Bastidores: RN497 henceforth02249-- 2019
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3L1 Bastidores: RN651 henceforth00301-- 2020-2021
COMPATIBLE WITHYamaha YZF-R1 1000 ABS 200 CV, 147 kw 4cil. RN651 B3LG Bastidores: RN651 henceforth04712-- 2022
COMPATIBLE WITHYamaha YZF-R1 1000 Anniversary 182 CV, 134 kw 4cil. RN225 1KBJ Bastidores: RN225 henceforth00376-- 2012-2013
COMPATIBLE WITHYamaha YZF-R1 1000 Anniversary ABS 200 CV, 147 kw 4cil. RN321 2CRJ Bastidores: RN321 henceforth03246-- 2016
COMPATIBLE WITHYamaha YZF-R1 1000 M 200 CV, 147 kw 4cil. RN326 2KS1 Bastidores: RN326 henceforth00301-- 2015
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN326 2KSC Bastidores: RN326 henceforth01168-- 2016
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN494 2KSF Bastidores: RN494 henceforth00301-- 2017
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN499 2KSM Bastidores: RN499 henceforth00301-- 2018-2019
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2020
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4S1 Bastidores: RN655 henceforth00301-- 2021
COMPATIBLE WITHYamaha YZF-R1 1000 M ABS YZF1000D 200 CV, 147 kw 4cil. RN655 B4SD Bastidores: RN655 henceforth01145-- 2022-2023
COMPATIBLE WITHYamaha YZF-R1 1000 SP 175 CV, 129 kw 4cil. RN129 4B11 Bastidores: RN129 henceforth00301-- 2006
COMPATIBLE WITHYamaha YZF-R1 1000 World GP 60th Anniversary ABS 200 CV, 147 kw 4cil. RN651 B3LS Bastidores: RN651 henceforth04734-- 2022-2023
