JT SPROCKETS transmission sprocket 14T P-520 ALTN: 7260374 726.31.89

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

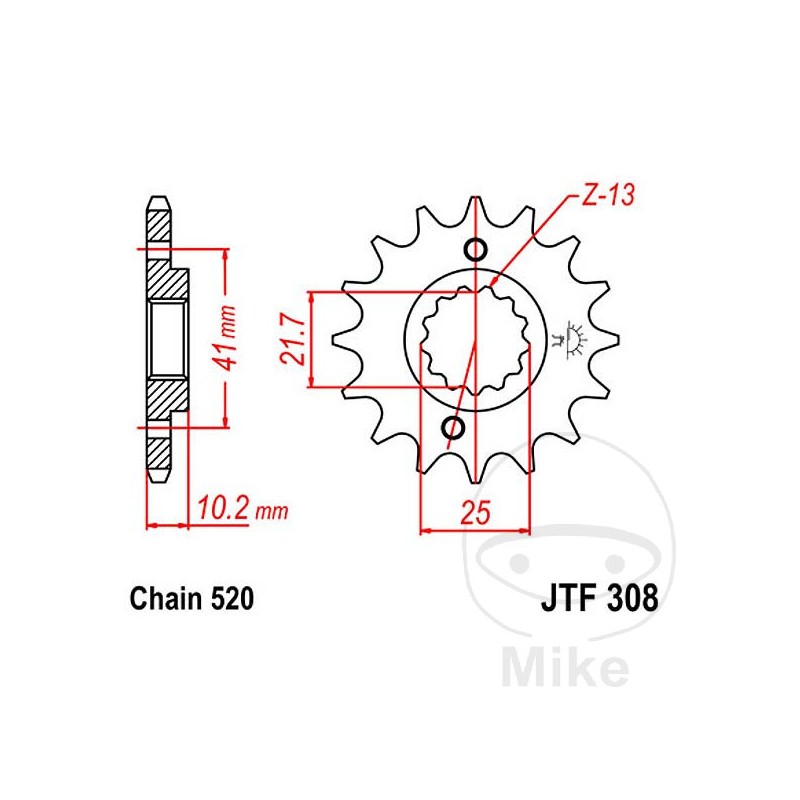

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 13
HOLES QUANTITY: 2
HOLES DISTANCE: 41 MM
WIDTH: 10.2MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia Pegaso 650 ie Factory 34 CV, 25 kw 1cil. VDE00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Factory 48 CV, 35 kw 1cil. VDE00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Strada 34 CV, 25 kw 1cil. VD000 Bastidores: --- 2005-2006
COMPATIBLE WITHAprilia Pegaso 650 ie Strada 34 CV, 25 kw 1cil. VDB00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Strada 48 CV, 35 kw 1cil. VD000 Bastidores: --- 2005-2006
COMPATIBLE WITHAprilia Pegaso 650 ie Strada 48 CV, 35 kw 1cil. VDB00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Trail 34 CV, 25 kw 1cil. VDA00 Bastidores: --- 2006
COMPATIBLE WITHAprilia Pegaso 650 ie Trail 34 CV, 25 kw 1cil. VDD00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Trail 48 CV, 35 kw 1cil. VDA00 Bastidores: --- 2006
COMPATIBLE WITHAprilia Pegaso 650 ie Trail 48 CV, 35 kw 1cil. VDD00 Bastidores: --- 2007-2010
COMPATIBLE WITHAprilia Pegaso 650 ie Tundra 48/34 CV, 35/25 kw 1cil. VD Bastidores: --- 2007-2008
COMPATIBLE WITHDerbi 659 660 Mulhacen Cafe Gussrad 48 CV, 35 kw 1cil. - Bastidores: --- 2010-2011
COMPATIBLE WITHDerbi 659 660 Mulhacen Nieto Gussrad 48 CV, 35 kw 1cil. - Bastidores: --- 2011
COMPATIBLE WITHDerbi 659 660 Mulhacen Speichenrad 48 CV, 35 kw 1cil. - Bastidores: --- 2007-2010
COMPATIBLE WITHHonda FMX 650 34 CV, 25 kw 1cil. RD12B 5 Bastidores: VTM RD12B henceforth5E000001-VTM RD12B henceforth5E099999 2005
COMPATIBLE WITHHonda FMX 650 34 CV, 25 kw 1cil. RD12B 6 Bastidores: VTM RD12B henceforth6E010001-- 2006-2007
COMPATIBLE WITHHonda FMX 650 38 CV, 28 kw 1cil. RD12A 5 Bastidores: VTM RD12A henceforth5E000023-VTM RD12A henceforth5E099999 2005
COMPATIBLE WITHHonda FMX 650 38 CV, 28 kw 1cil. RD12A 6 Bastidores: VTM RD12A henceforth6E210001-- 2006-2007
COMPATIBLE WITHHonda FX 650 Vigor 34 CV, 25 kw 1cil. RD09C X Bastidores: VTM RD09C henceforthXE110002-- 1999-2000
COMPATIBLE WITHHonda FX 650 Vigor 39 CV, 29 kw 1cil. RD09A X Bastidores: VTM RD09A henceforthXE420004-- 1999-2000
COMPATIBLE WITHHonda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 2L Bastidores: RD02-6300002-- 1990
COMPATIBLE WITHHonda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 L Bastidores: RD02-6200001-RD02-6200550 1990
COMPATIBLE WITHHonda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 M Bastidores: RD02-6400001-- 1991
COMPATIBLE WITHHonda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 N Bastidores: RD02-3500001-RD02-3500740 1992
COMPATIBLE WITHHonda NX 650 Dominator 27 CV, 20 kw 1cil. RD02 P Bastidores: RD02-3600001-- 1993
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD02 R Bastidores: RD02-7000001-- 1994
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD087 S Bastidores: ZDC RD087-1SF000396-- 1995
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B T Bastidores: ZDC RD08B henceforthTF100001-- 1996
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B V Bastidores: ZDC RD08B henceforthVF200001-- 1997
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B W Bastidores: ZDC RD08B henceforthWF300001-- 1998
COMPATIBLE WITHHonda NX 650 Dominator 34 CV, 25 kw 1cil. RD08B X Bastidores: ZDC RD08B henceforthXF300001-- 1999-2000
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 M Bastidores: RD02-5400001-- 1991
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 N Bastidores: RD02-5500015-RD02-5508074 1992
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 P Bastidores: RD02-5600354-- 1993
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD02 R Bastidores: RD02-5700005-- 1994
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD087 S Bastidores: ZDC RD087 henceforthSF000276-- 1995
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A T Bastidores: ZDC RD08A henceforthTF100001-- 1996
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A V Bastidores: ZDC RD08A 0VF200001-- 1997
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A W Bastidores: ZDC RD08A henceforthWF300001-- 1998
COMPATIBLE WITHHonda NX 650 Dominator 44 CV, 32 kw 1cil. RD08A X Bastidores: ZDC RD08A henceforthXF300001-- 1999-2000
COMPATIBLE WITHHonda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 2L Bastidores: RD02-5300009-- 1990
COMPATIBLE WITHHonda NX 650 Dominator 45 CV, 33 kw 1cil. RD02 L Bastidores: RD02-5200136-RD02-5205987 1990
COMPATIBLE WITHHonda NX 650 Dominator piñón engranaje fino 45 CV, 33 kw 1cil. RD02 K Bastidores: RD02-5100088-RD02-5105732 1989
COMPATIBLE WITHHonda SLR 650 34 CV, 25 kw 1cil. RD09C V Bastidores: VTM RD09C henceforthVE000001-VTM RD09C henceforthVE001381 1997
COMPATIBLE WITHHonda SLR 650 34 CV, 25 kw 1cil. RD09C W Bastidores: VTM RD09C henceforthWE000002-- 1998
COMPATIBLE WITHHonda SLR 650 39 CV, 29 kw 1cil. RD09A V Bastidores: VTM RD09A henceforthVE100001-VTM RD09A henceforthVE101384 1997
COMPATIBLE WITHHonda SLR 650 39 CV, 29 kw 1cil. RD09A W Bastidores: VTM RD09A henceforthWE100002-VTM RD09A henceforthWE100301 1998
COMPATIBLE WITHSuzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C K Bastidores: GV73C-100001-GV73C-102566 1989
COMPATIBLE WITHSuzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C L Bastidores: GV73C-102567-GV73C-104826 1990
COMPATIBLE WITHSuzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C M Bastidores: GV73C-104827-GV73C-107721 1991
COMPATIBLE WITHSuzuki GSX-R 1100 100 CV, 74 kw 4cil. GV73C N Bastidores: GV73C-107722-- 1992
COMPATIBLE WITHSuzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C P Bastidores: GU75C-100001-GU75C-103514 1993
COMPATIBLE WITHSuzuki GSX-R 1100 W 155/98 CV,114/72kw 4cil. GU75C R Bastidores: GU75C-103515-GU75C-104538 1994
COMPATIBLE WITHYamaha MT03 660 H 45 CV, 33 kw 1cil. RM021 5YK1 Bastidores: RM021 henceforth00051-- 2006
COMPATIBLE WITHYamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK2 Bastidores: RM024 henceforth00051-- 2007
COMPATIBLE WITHYamaha MT03 660 H 45 CV, 33 kw 1cil. RM024 5YK5 Bastidores: RM024 henceforth08001-- 2008
COMPATIBLE WITHYamaha MT03 660 H 48 CV, 35 kw 1cil. RM024 5YK7 Bastidores: RM024 henceforth25153-- 2009-2010
COMPATIBLE WITHYamaha MT03 660 H 48 CV, 35 kw 1cil. RM027 5YK9 Bastidores: RM027 henceforth00001-- 2011
COMPATIBLE WITHYamaha MT03 660 H 48 CV, 35 kw 1cil. RM051 2BF1 Bastidores: RM051 henceforth00597-- 2012-2014
COMPATIBLE WITHYamaha MT03 660 N 34 CV, 25 kw 1cil. RM022 5YK3 Bastidores: RM022 henceforth00301-- 2006
COMPATIBLE WITHYamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK4 Bastidores: RM025 henceforth00301-- 2007
COMPATIBLE WITHYamaha MT03 660 N 34 CV, 25 kw 1cil. RM025 5YK6 Bastidores: RM025 henceforth00501-- 2008
COMPATIBLE WITHYamaha XT 660 R 34 CV 25 kw 1cil. DM016 3S62 Bastidores: DM016 henceforth00275-- 2006
COMPATIBLE WITHYamaha XT 660 R 34 CV, 25 kw 1cil. - 3S61 Bastidores: --- 2005
COMPATIBLE WITHYamaha XT 660 R 34 CV, 25 kw 1cil. - 3S63 Bastidores: --- 2007
COMPATIBLE WITHYamaha XT 660 R 34 CV, 25 kw 1cil. - 3S64 Bastidores: --- 2008
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK1 Bastidores: DM011 henceforth00166-- 2004
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK4 Bastidores: DM011 henceforth09701-- 2005
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM011 5VK6 Bastidores: DM011 henceforth14113-- 2006
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VK8 Bastidores: DM018 henceforth00166-- 2007
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKA Bastidores: DM018 henceforth03348-- 2008
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKC Bastidores: DM018 henceforth07086-- 2009
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKE Bastidores: DM018 henceforth07405-- 2010
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKG Bastidores: DM018 henceforth20001-- 2011-2013
COMPATIBLE WITHYamaha XT 660 R 48 CV, 35 kw 1cil. DM018 5VKL Bastidores: DM018 henceforth22001-- 2014-2016
COMPATIBLE WITHYamaha XT 660 X 34 CV, 25 kw 1cil. - 11B1 Bastidores: --- 2007
COMPATIBLE WITHYamaha XT 660 X 34 CV, 25 kw 1cil. - 11B2 Bastidores: --- 2008
COMPATIBLE WITHYamaha XT 660 X 34 CV, 25 kw 1cil. - 3S71 Bastidores: --- 2005
COMPATIBLE WITHYamaha XT 660 X 34 CV, 25 kw 1cil. DM017 3S72 Bastidores: DM017 henceforth00270-- 2006
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D21 Bastidores: DM014 henceforth00151-- 2004
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D24 Bastidores: DM014 henceforth09730-- 2005
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM014 1D26 Bastidores: DM014 henceforth15350-- 2006
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S1 Bastidores: DM01B henceforth00101-- 2007
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S3 Bastidores: DM01B henceforth05021-- 2008
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S5 Bastidores: DM01B henceforth10286-- 2009
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S7 Bastidores: DM01B henceforth11402-- 2010
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10S9 Bastidores: DM01B henceforth30001-- 2011-2013
COMPATIBLE WITHYamaha XT 660 X 48 CV, 35 kw 1cil. DM01B 10SC Bastidores: DM01B henceforth32001-- 2014-2016
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D1 Bastidores: DM021 henceforth00051-- 2008
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM021 11D2 Bastidores: DM021 henceforth08922-- 2009
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D6 Bastidores: DM025 henceforth00328-- 2010
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D8 Bastidores: DM025 henceforth01151-- 2011
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM025 11D9 Bastidores: DM025 henceforth02151-- 2012
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD3 Bastidores: DM041 henceforth05101-- 2013-2014
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD6 Bastidores: DM041 henceforth07101-- 2015-2016
COMPATIBLE WITHYamaha XT 660 Z Tenere 48 CV, 35 kw 1cil. DM041 2BD7 Bastidores: DM041 henceforth07102-- 2015-2016
COMPATIBLE WITHYamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM024 2BE1 Bastidores: --- 2012
COMPATIBLE WITHYamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM024 56P1 Bastidores: DM024 henceforth00001-- 2011
COMPATIBLE WITHYamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM042 2BE2 Bastidores: DM042 henceforth05101-- 2013-2014
COMPATIBLE WITHYamaha XT 660 ZA Tenere ABS 48 CV, 35 kw 1cil. DM042 2BE3 Bastidores: DM042 henceforth10252-- 2015-2016
