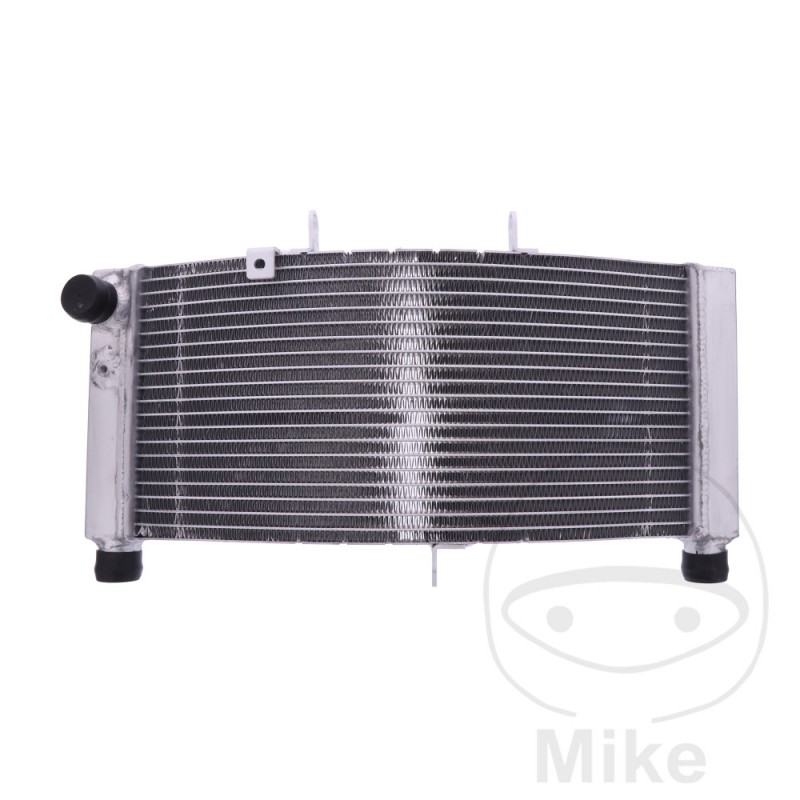

JMP Upper water radiator 776.03.67

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
YAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2CE9 BASTIDORES: RP211 henceforth03149-- 2015
COMPATIBLE WITHYAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2CEL BASTIDORES: RP211 henceforth03580-- 2016
COMPATIBLE WITHYAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2S35 BASTIDORES: RP211 henceforth00301-- 2009
COMPATIBLE WITHYAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2S3C BASTIDORES: RP211 henceforth02058-- 2010
COMPATIBLE WITHYAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2S3J BASTIDORES: RP211 henceforth02670-- 2011
COMPATIBLE WITHYAMAHA VMX-17 1700 A VMAX ABS 200 CV, 147 KW 4CIL. RP211 2S3R BASTIDORES: RP211 henceforth02792-- 2012-2014
