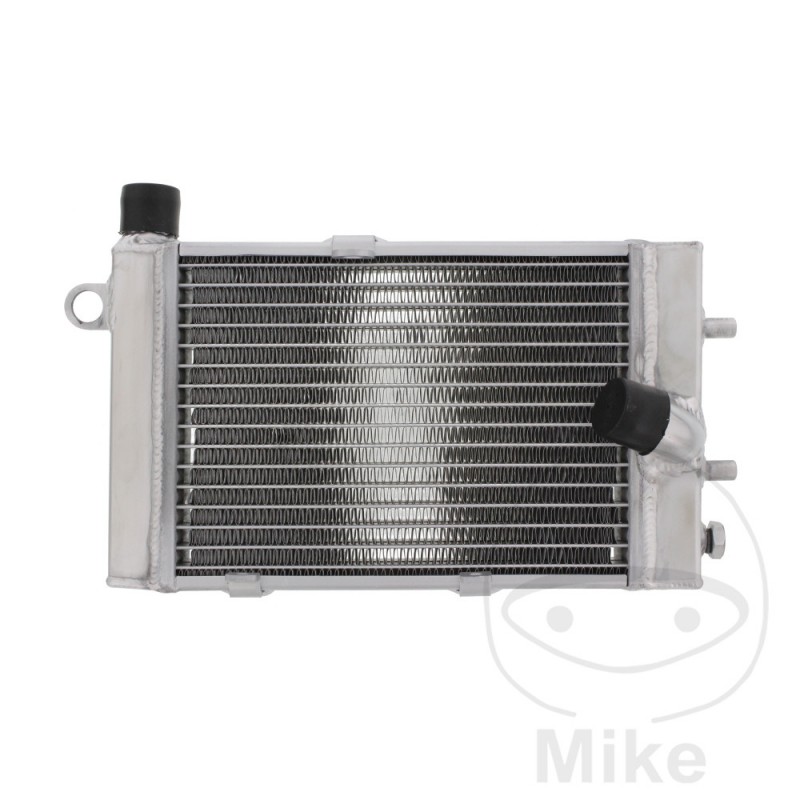

JMP left water radiator 776.01.25

JMP water cooler

>>> Optimum cooling performance and durability <<<<

JMP Advantages:

- Better cooling performance thanks to special fin technology

- Ideal for motors with high thermal loads

- Hand welded, polished and pressure tested

- Can be swapped directly for the original equipment radiator

When the engine is running, friction and heat are automatically generated. Therefore, the motor must be cooled in the best possible way to avoid overheating.

Water coolers are made up of tubes with fins between them. Coolant flows through these tubes. A continuous flow of air cools the fluid and thus prevents the motor from overheating.

Variants of the water cooler:

- Radiator mechanically clogged

- Brazed radiator

Mechanically Plugged Cooler:

- Production that saves costs and energy

- Round tubes fully inserted through the fins

- Less air space between tubes and fins

- Lower heat transfer / cooling capacity

Brazed Fin Cooler:

- Tubes and fins are welded in the furnace

- Creation of a metallic joint

- Optimum heat transfer

- Flattened tubes

- Larger cooling surface

- Up to 60% more cooling capacity


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RST 1000 Mille Futura 113 CV, 84 kw 2cil. PW003 Bastidores: ZD4PW00301S000001-- 2001-2004
COMPATIBLE WITHAprilia RST 1000 Mille Futura 98 CV, 72 kw 2cil. PW003 Bastidores: ZD4PW00301S000001-- 2001-2004
COMPATIBLE WITHAprilia RSV 1000 Mille 118 CV, 87 kw 2cil. ME000 Bastidores: ZD4ME0000XS000767-- 2000
COMPATIBLE WITHAprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP000 Bastidores: ZD4RP00001S000001-- 2001-2002
COMPATIBLE WITHAprilia RSV 1000 Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
COMPATIBLE WITHAprilia RSV 1000 Mille 98 CV, 72 kw 2cil. MEA00 Bastidores: ZD4MEA000XS000845-- 2000
COMPATIBLE WITHAprilia RSV 1000 Mille 98 CV, 72 kw 2cil. RP001 Bastidores: ZD4RP00101S000001-- 2001-2002
COMPATIBLE WITHAprilia RSV 1000 R Mille 118 CV, 87 kw 2cil. ME001 Bastidores: ZD4ME0010XS000001-- 2000
COMPATIBLE WITHAprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RP012 Bastidores: ZD4RP01202S000001-- 2003
COMPATIBLE WITHAprilia RSV 1000 R Mille 125 CV, 92 kw 2cil. RPA00 Bastidores: ZD4RPA000YS000006-- 2001-2002
COMPATIBLE WITHAprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. MEA01 Bastidores: --- 2000
COMPATIBLE WITHAprilia RSV 1000 R Mille 98 CV, 72 kw 2cil. RPA01 Bastidores: ZD4RPA0101S000001-- 2001-2002
COMPATIBLE WITHAprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB00 Bastidores: --- 2003
COMPATIBLE WITHAprilia RSV 1000 R Tuono 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
COMPATIBLE WITHAprilia RSV 1000 R Tuono Factory 125 CV, 92 kw 2cil. RPB09 Bastidores: --- 2004-2005
COMPATIBLE WITHAprilia SL 1000 Falco 118 CV, 87 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
COMPATIBLE WITHAprilia SL 1000 Falco 95 CV, 70 kw 2cil. PA000/PAS00 Bastidores: --- 1999-2004
COMPATIBLE WITHAprilia Tuono 1000 R 133 CV, 98 kw 2cil. RR100 Bastidores: --- 2007-2011
COMPATIBLE WITHAprilia Tuono 1000 R Factory 139 CV, 102 kw 2cil. RR100 Bastidores: --- 2007-2011
