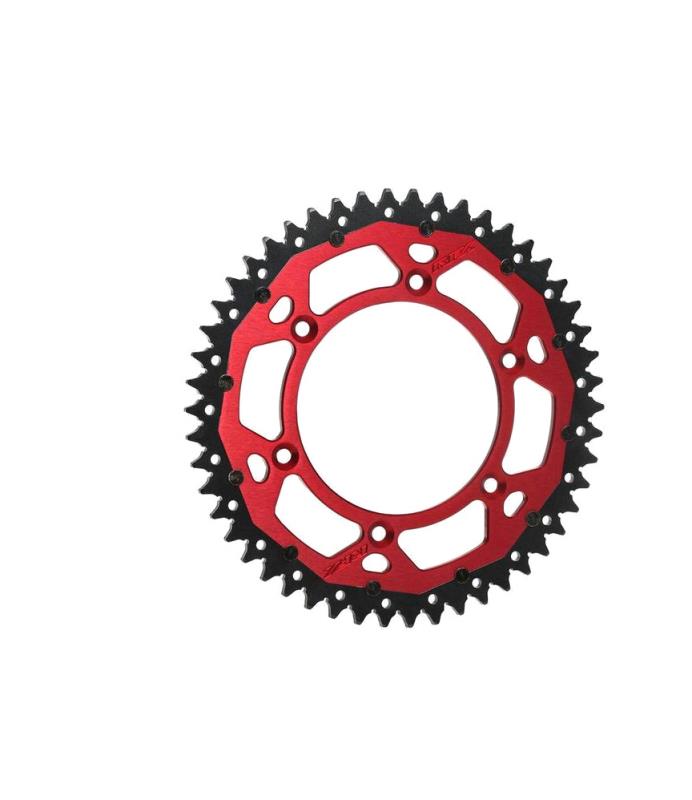

RFX Aluminum transmission chainring PRO SERIES ARMALITE - 420 1123220004

RFX Pro Series Armalite Crowns are designed and tested to the highest level by the best British and World Championship racing teams.


The double ring design provides maximum crown performance, low weight thanks to the 7075-T6 aluminum center and long tooth life thanks to the high carbon steel exterior.


Armalite crowns also incorporate a hex drive interface between the inner and outer ring, a revolutionary technology that maximizes drive between the two parts and reduces force on rivets to zero, unlike the competition.


Characteristic:


CNC 7075 Aerospace Aluminum Inner Ring


HCS outer ring


Hex-Drive location between inner and outer ring


CAD designed profile for lightness


New style of mud clearance grooves to reduce wear


Rigid design increases torsion resistance


Color anodized to give it that factory bike look


Assembly instructions:


Place the bike on a kickstand with the rear wheel off the ground


Remove the chain and wheel from the motorcycle


Hold the hex key and loosen the nuts with a spanner


Remove all the nuts and the old crown


Clean around the hub making sure it is clean and free of debris


Take the new crown and place it on the hub making sure it is snug and the screw holes are in place


Clean the crown bolts and nuts


Apply Blue Loctite to each screw and insert them into the holes


Thread the nuts onto the bolts by hand, making sure the retainers are intact and in good condition.


Hold the hex key and tighten the nuts in an even pattern


Tighten the nuts and bolts according to the owner's manual.


Refit the wheel making sure the chain is properly aligned and tightened to manufacturer's specifications

NUMBER OF TEETH OF THE CROWN: 56

COMPOSITION: ALUMINUM

REAR SPROCKET VERSION: STANDARD

PASO DE CADENA: 420


APPLICATIONS OF THIS PRODUCT:

According to the data provided by the manufacturer, this item is compatible with the following makes, models and years:
COMPATIBLE WITH HONDA CR 80 R BIG WHEELS 16/19 (HE04) 80 1996-2002
COMPATIBLE WITH HONDA CR 80 R BIG WHEELS 18/21 (HE04) 80 1985-1986
COMPATIBLE WITH HONDA CR 80 R STD WHEELS 14/17 (HE04) 80 1987-2002
COMPATIBLE WITH HONDA CR 85 R BIG WHEELS 16/19 (HE07) 85 2003-2007
COMPATIBLE WITH HONDA CR 85 R STD WHEELS 14/17 (HE07) 85 2003-2007
COMPATIBLE WITH HONDA CRF 150 R BIG WHEELS 16/19 (KE03) 150 2007-2022
COMPATIBLE WITH HONDA CRF 150 R STD WHEELS 14/17 (KE03) 150 2007-2020
