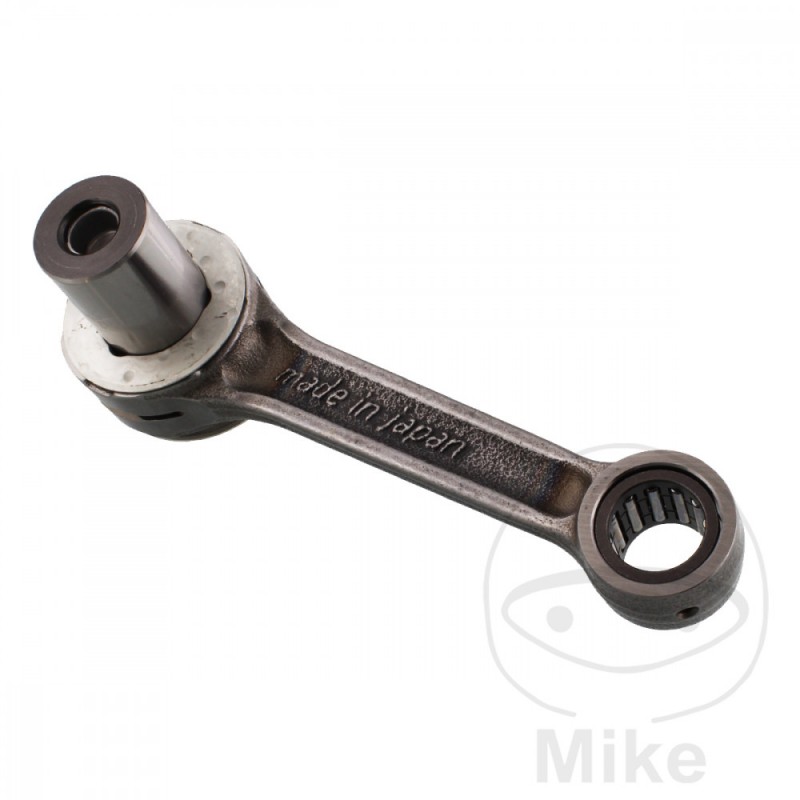

ATHENA Crankshaft Rod Kit 7561375

Athena crankset



Made from similar materials to the original parts to provide the same performance.

The cranksets are of excellent quality, they are light, durable and capable of reducing rotations and stresses.

Athena cranksets include the connecting rod, needle bearing and connecting rod bolt and, if necessary, also the small pin and shims.



- Made in Japan

- High quality, light weight

- Same features as OEM

- High frequency treated surface for greater resistance
SIZE A: 20MM
MEASURE B: 29MM
MEASURE C: 105MM
MEASURE D: 16MM
MEASURE E: 17MM
SIZE F: 138.5 MM
MEASURE G: 80.5MM
SIZE H: 54.5 MM
SIZE I: 22 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YZ 125 1cil. 1LX 1LX Bastidores: 1LX henceforth00101-1LX henceforth30000 1986
COMPATIBLE WITHYamaha YZ 125 1cil. 2HG 2HG Bastidores: 2HG henceforth00101-- 1987
COMPATIBLE WITHYamaha YZ 125 1cil. 2VN 2VN Bastidores: 2VN henceforth00101-2VN henceforth17000 1988
COMPATIBLE WITHYamaha YZ 125 1cil. 3JD 3JD1 Bastidores: 3JD henceforth00101-3JD henceforth22000 1989
COMPATIBLE WITHYamaha YZ 125 1cil. 3SR 3SR1 Bastidores: 3SR henceforth00101-3SR henceforth06000 1990
COMPATIBLE WITHYamaha YZ 125 1cil. 3XJ 3XJ1 Bastidores: 3XJ henceforth00101-3XJ henceforth08000 1991
COMPATIBLE WITHYamaha YZ 125 1cil. 4DB 4DB1 Bastidores: 4DB henceforth00101-4DB henceforth07000 1992
COMPATIBLE WITHYamaha YZ 125 36 CV, 27 kw 1cil. 4EX 4EX1 Bastidores: 4EX henceforth00101-- 1993
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. 4JY 4JY1 Bastidores: 4JY henceforth00101-4JY henceforth08999 1994
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. 4PE 4PE1 Bastidores: 4PE henceforth00101-- 1995
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. 4SS 4SS1 Bastidores: 4SS henceforth00101-- 1996
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. 4XM 4XM1 Bastidores: 4XM henceforth01464-- 1997
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. 4XM 5DH2 Bastidores: 4XM henceforth11530-- 1998
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. CE03C 5ET2 Bastidores: CE03C henceforth00239-- 1999
COMPATIBLE WITHYamaha YZ 125 39 CV, 29 kw 1cil. CE05C 5HD2 Bastidores: CE05C henceforth00239-- 2000
