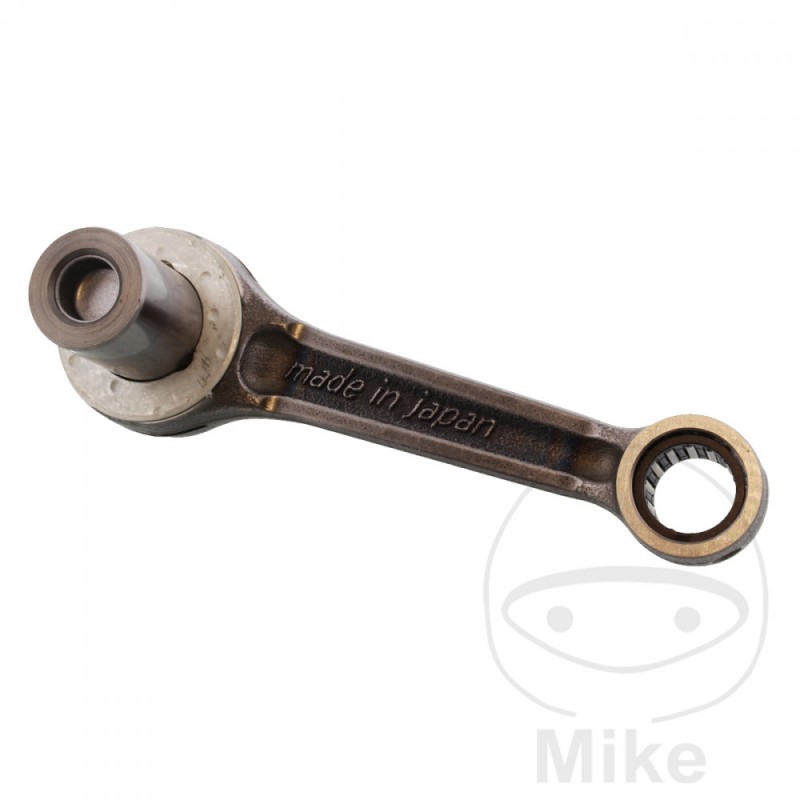

ATHENA Crankshaft Rod Kit 7560409

Athena crankset



Made from similar materials to the original parts to provide the same performance.

The cranksets are of excellent quality, they are light, durable and capable of reducing rotations and stresses.

Athena cranksets include the connecting rod, needle bearing and connecting rod bolt and, if necessary, also the small pin and shims.



- Made in Japan

- High quality, light weight

- Same features as OEM

- High frequency treated surface for greater resistance
SIZE A: 19MM
MEASURE B: 29MM
SIZE C: 107 MM
MEASURE D: 16MM
MEASURE E: 16MM
MEASURE F: 137MM
MEASURE G: 80MM
SIZE H: 54 MM
SIZE I: 22 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CR 125 R 1cil. JE01 J Bastidores: JE01-5900001-JE01-5904696 1988
COMPATIBLE WITHHonda CR 125 R 1cil. JE01 K Bastidores: JE01-5000001-- 1989
COMPATIBLE WITHHonda CR 125 R 1cil. JE01 L Bastidores: JE01-5100531-JE01-5103518 1990
COMPATIBLE WITHHonda CR 125 R 1cil. JE01 M Bastidores: JE01-5200661-JE01-5203405 1991
COMPATIBLE WITHHonda CR 125 R 35 CV, 25,5 kw 1cil. JE01 N Bastidores: JE01-5300001-JE01-5303393 1992
COMPATIBLE WITHHonda CR 125 R 40 CV, 30 kw 1cil. JE01 P Bastidores: JE01-5400001-JE01-5404242 1993
COMPATIBLE WITHHonda CR 125 R 40 CV, 30 kw 1cil. JE01 R Bastidores: JE01-5500001-JE01-5503569 1994
COMPATIBLE WITHHonda CR 125 R 40 CV, 30 kw 1cil. JE01 S Bastidores: JE01-5600001-JE01-5602273 1995
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 1 Bastidores: JH2 JE01A-1M500001-- 2001
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 2 Bastidores: JH2 JE01A-2M600001-JH2 JE01A-2M699999 2002
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 3 Bastidores: JH2 JE01A-3M700001-JH2 JE01A-3M799999 2003
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A 4 Bastidores: JH2 JE01A-4M800001-JH2 JE01A-4M899999 2004
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A T Bastidores: JE01A-TM000006-- 1996
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A V Bastidores: JE01A-VM100001-- 1997
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A W Bastidores: JE01A-WM200001-- 1998
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A X Bastidores: JE01A-XM300001-- 1999
COMPATIBLE WITHHonda CR 125 R 41 CV, 30 kw 1cil. JE01A Y Bastidores: JH2 JE01A-YM400001-- 2000
COMPATIBLE WITHHonda CR 125 R 42 CV, 31 kw 1cil. JE01A 5 Bastidores: JH2 JE01A-5M900001-JH2 JE01A-5M999999 2005
COMPATIBLE WITHHonda CR 125 R 42 CV, 31 kw 1cil. JE01A 6 Bastidores: JH2 JE01A-6M000001-JH2 JE01A-6M099999 2006
COMPATIBLE WITHHonda CR 125 R 42,6 CV, 31,3 kw 1cil. JE01A 7 Bastidores: JH2 JE01A-7M100001-- 2007
