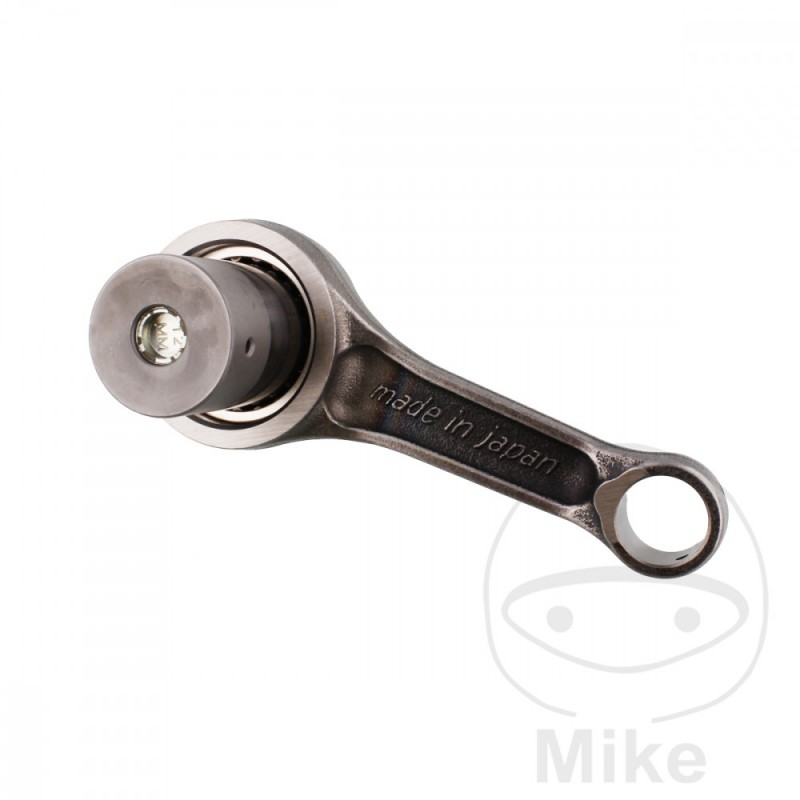

ATHENA Crankshaft Rod Kit 7560285

Athena crankset



Made from similar materials to the original parts to provide the same performance.

The cranksets are of excellent quality, they are light, durable and capable of reducing rotations and stresses.

Athena cranksets include the connecting rod, needle bearing and connecting rod bolt and, if necessary, also the small pin and shims.



- Made in Japan

- High quality, light weight

- Same features as OEM

- High frequency treated surface for greater resistance
SIZE A: 19MM
MEASURE B: 42MM
SIZE C: 106.2 MM
SIZE D: 18.5 MM
MEASURE E: 20MM
SIZE F: 146.8 MM
MEASURE G: 75.7 MM
SIZE H: 61 MM
SIZE I: 34 MM


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM-Z 450 57 CV, 42 kw 1cil. RL41A K7 Bastidores: RL41A henceforth00500177-- 2007
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL41C K5 Bastidores: RL41C-52100001-- 2005
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL41C K6 Bastidores: RL41C-62100001-- 2006
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L3 Bastidores: RL42A henceforth00509746-- 2013
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L4 Bastidores: RL42A henceforth00512422-- 2014
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L5 Bastidores: RL42A henceforth00512452-RL42A henceforth00519999 2015
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L6 Bastidores: RL42A henceforthG0500001-RL42A henceforthG0599999 2016
COMPATIBLE WITHSuzuki RM-Z 450 57 CV, 42 kw 1cil. RL42A L7 Bastidores: RL42A henceforthH0500001-RL42A henceforthH0599999 2017
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z L8 Bastidores: DZ117Z-J2100001-DZ117Z-J2199999 2018
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z L9 Bastidores: DZ117Z-K7100001-DZ117Z-K7199999 2019
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M0 Bastidores: DZ117Z-L7100001-DZ117Z-L7199999 2020
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M1 Bastidores: DZ117Z-M7100001-DZ117Z-M7999999 2021
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M2 Bastidores: DZ117Z-N7100001-DZ117Z-N7199999 2022
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M3 Bastidores: DZ117Z-P7100001-DZ117Z-P7199999 2023
COMPATIBLE WITHSuzuki RM-Z 450 58 CV, 43 kw 1cil. DZ117Z M4 Bastidores: DZ117Z-R7100001-DZ117Z-R7999999 2024
