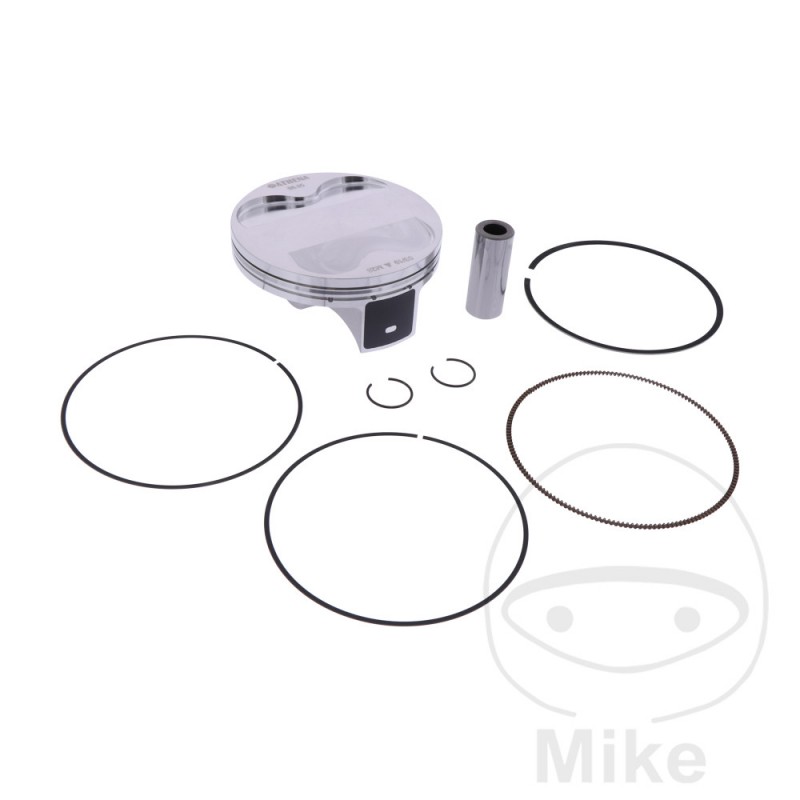

ATHENA Forged Complete Piston Kit 96.95 MM A OFFROAD 756.20.47

Athena Offroad Piston Kits



Athena has developed a new line of "Offroad" piston kits for use on most 4-stroke offroad motorcycles.

Manufactured with special high-performance materials produced by reverse extrusion forging.



Special molybdenum disulfide coating sintered by screen printing process to improve flow/slide, performance and durability and reduce friction and noise.

State-of-the-art stainless steel segments with CrN PVD coating (chrome plating) and wear-resistant reinforcements whose shape has been optimized to improve formability under low tangential load.



Developed in Italy, the pistons undergo rigorous quality testing both on the dynamic bench and on the race track to ensure the highest levels of performance and reliability.



- High performance and flow/slip

- Reduced friction and noise

- Greater resistance and durability

- Stainless steel segments Made in Japan

- Wide range for most 4-stroke off-road motorcycles

- High quality at an affordable price.

Note:

PVD Coating: A process in which bombardment with laser beams, magnetically deflected ions or electrons, and arc discharge vaporize the so-called target material.
VERSION: STANDARD
PISTON DIAMETER: 96.95 MM
PISTON PIN: 18MM
QUALITY: FORGED
COMPRESSION RATIO: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 450 F 1cil. CJ19W 2GC3 Bastidores: CJ19W henceforth00073-- 2016
COMPATIBLE WITHYamaha WR 450 F 1cil. CJ19W 2GC8 Bastidores: CJ19W henceforth02513-- 2017
COMPATIBLE WITHYamaha WR 450 F 1cil. CJ19W 2GCC Bastidores: --- 2018
COMPATIBLE WITHYamaha WR 450 F 1cil. RE451EF 2GC3 Bastidores: RE451EF-600019-- 2016
COMPATIBLE WITHYamaha WR 450 F 1cil. RE451EL 2GC8 Bastidores: RE451EL-700006-- 2017
COMPATIBLE WITHYamaha WR 450 F 1cil. RE451EL 2GCC Bastidores: RE451EL-800010-- 2018
COMPATIBLE WITHYamaha WR 450 F 1cil. RE451W 2GC8 Bastidores: RE451WL-700532-- 2017
COMPATIBLE WITHYamaha YZ 450 F 1cil. CJ18C 1SL2 Bastidores: CJ18C henceforth00045-- 2014
COMPATIBLE WITHYamaha YZ 450 F 1cil. CJ18C 1SL6 Bastidores: CJ18C henceforth07434-- 2015
COMPATIBLE WITHYamaha YZ 450 F 1cil. CJ21C B112 Bastidores: CJ21C henceforth00027-- 2016
COMPATIBLE WITHYamaha YZ 450 F 1cil. CJ21C B119 Bastidores: CJ21C henceforth06144-- 2017
COMPATIBLE WITHYamaha YZ 450 F Anniversary 1cil. CJ21C B116 Bastidores: CJ21C henceforth00317-- 2016
