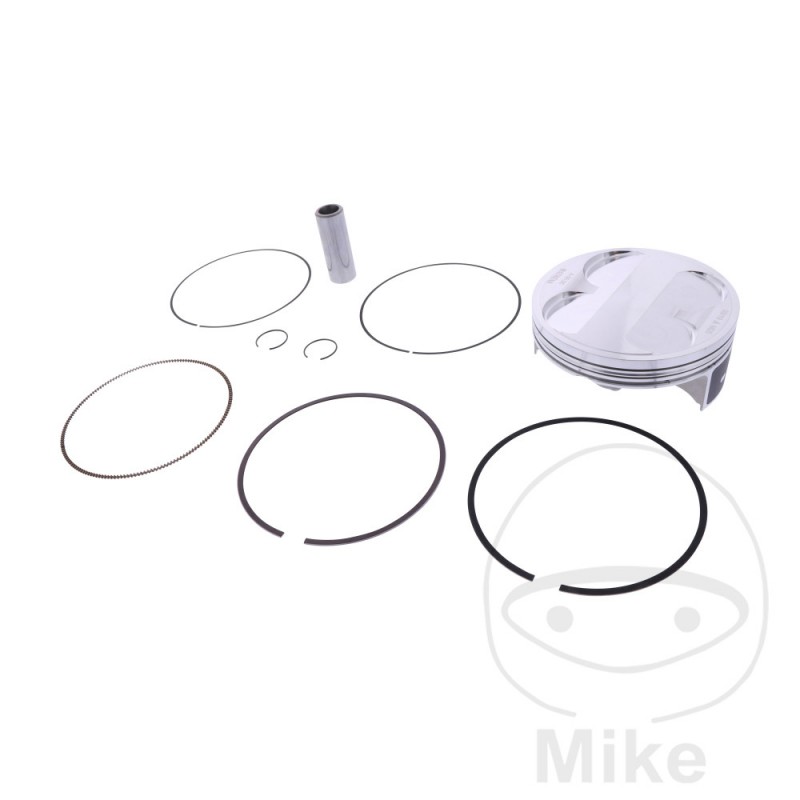

ATHENA Forged Complete Piston Kit 96.95 MM A OFFROAD 756.21.63

Athena Offroad Standard Piston Kits



Athena has developed a new line of "Offroad" piston sets for use in most 4-stroke offroad bikes.

Made with special high performance materials produced by reverse extrusion forging.



Special molybdenum disulfide coating sintered by screen printing process to improve flow/slip, performance and durability and to reduce friction and noise.

Last generation stainless steel segments with CrN PVD coating (chrome plated) and wear resistant reinforcements whose shape is optimized to improve formability under tangential load.



Developed in Italy, the pistons undergo rigorous quality testing both on the dynamic bench and on the race track to ensure the highest levels of performance and reliability.



- High performance and flow/slip

- Reduced friction and noise

- Improved strength and durability

- Stainless steel segments Made in Japan

- Wide range for most 4-stroke off-road bikes

- High quality at an affordable price.

warning:

PVD Coating: A process in which bombardment with laser beams, magnetically deflected ions or electrons, and arc discharge vaporize the so-called target material.
VERSION: STANDARD
PISTON DIAMETER: 96.95 MM
PISTON PIN: 18MM
QUALITY: FORGED
COMPRESSION RATIO: 1


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha WR 450 F 1cil. CJ25W B7R4 Bastidores: CJ25W henceforth00371-- 2019
Yamaha WR 450 F 1cil. CJ25W B7R9 Bastidores: CJ25W henceforth01746-- 2020
Yamaha WR 450 F GP 1cil. - Bastidores: --- 2019
Yamaha YZ 450 F 1cil. CJ22C BR92 Bastidores: CJ22C henceforth00322-- 2018
Yamaha YZ 450 F 1cil. CJ23C BR96 Bastidores: CJ23C henceforth00341-- 2019
Yamaha YZ 450 F 1cil. CJ26C B2W2 Bastidores: CJ26C henceforth00561-- 2020
