JT SPROCKETS coarse gear transmission pinion 15T P-525 6 Ø22/25MM 726.62.40

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

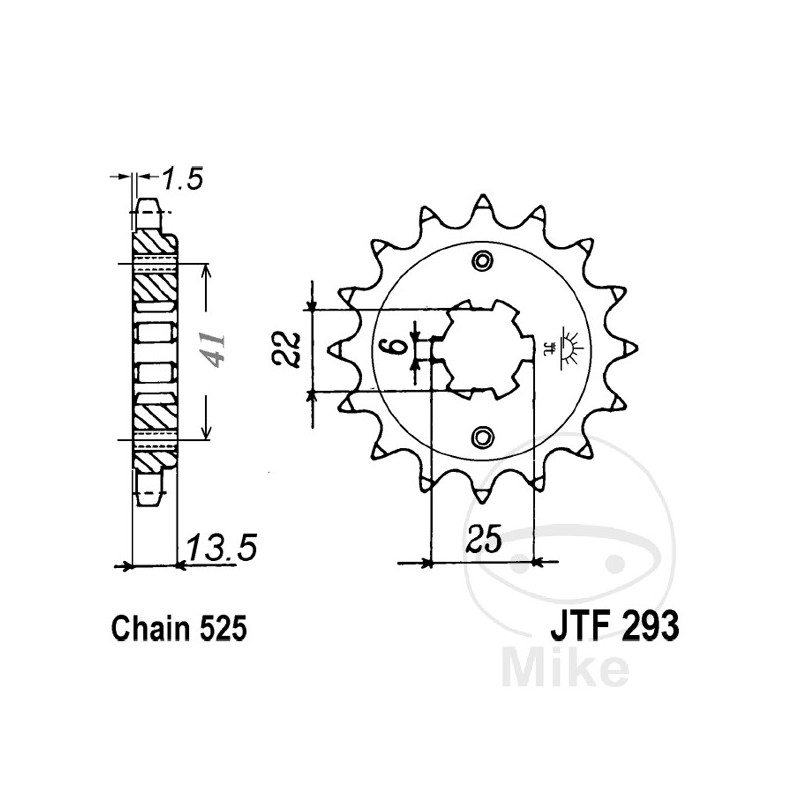

tooth sprocket approx:

To be used with Honda XL 600 V (J)
DIVISION: 525
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 41 MM
WIDTH: 1.5
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda VT 600 C Shadow piñón engranaje grueso 27 CV, 20 kw 2cil. PC21 J Bastidores: PC21-3000001-PC21-3000350 1988
Honda VT 600 C Shadow piñón engranaje grueso 41 CV, 30 kw 2cil. PC21 J Bastidores: PC21-2000001-PC21-2002167 1988
Honda XL 600 V Transalp 27 CV, 20 kw 2cil. PD06 H Bastidores: PD06-3000002-PD06-3000101 1987
Honda XL 600 V Transalp 50 CV, 37 kw 2cil. PD06 H Bastidores: PD06-5000033-PD06-5011960 1987
Honda XL 600 V Transalp piñón engranaje grueso 27 CV, 20 kw 2cil. PD06 J Bastidores: PD06-3100001-PD06-3100200 1988
Honda XL 600 V Transalp piñón engranaje grueso 50 CV, 37 kw 2cil. PD06 J Bastidores: PD06-5103368-PD06-5106124 1988
