JT SPROCKETS coarse gear transmission pinion 15T P-525 6 Ø21/25MM 726.48.23

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

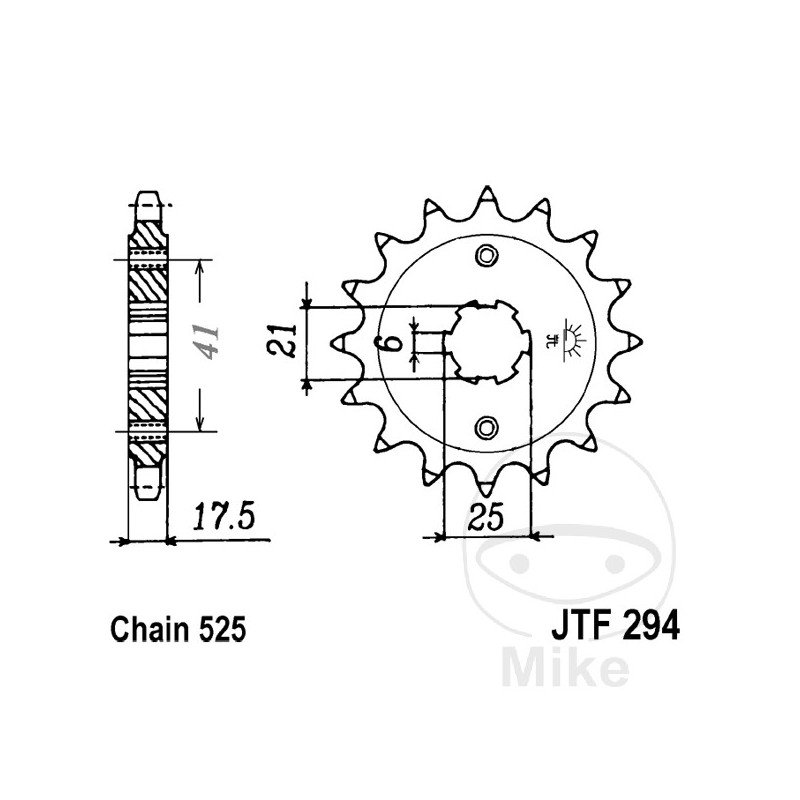

DIVISION: 525
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 41 MM
WIDTH: 17.5MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CBR 400 R 4cil. NC23 G Bastidores: NC23-1000001-NC23-1010690 1986
Honda CBR 400 R 4cil. NC23 H Bastidores: NC23-1015001-NC23-1016160 1987
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 K Bastidores: JH2 PC16-KK000001-JH2 PC16-KK099999 1989
Honda GB 500 Clubman 38/27 CV, 28/20 kw 1cil. PC16 L Bastidores: JH2 PC16-LK100001-JH2 PC16-LK199999 1990
Honda VFR 400 R 60 CV, 44 kw 4cil. NC21 G Bastidores: NC21-1000011-NC21-1015756 1986
Honda VFR 400 R 60 CV, 44 kw 4cil. NC24 H Bastidores: NC24-1000010-NC24-1017050 1987
Honda XBR 500 llanta de fundición 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-6200001-PC15-6200100 1987
Honda XBR 500 llanta de fundición 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-5200005-PC15-5201600 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 H Bastidores: PC15-8000002-PC15-8000201 1987
Honda XBR 500 S llanta de radios 27 CV, 20 kw 1cil. PC15 J Bastidores: PC15-8100003-- 1988-1989
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 H Bastidores: PC15-7000005-PC15-7000940 1987
Honda XBR 500 S llanta de radios 44 CV, 32 kw 1cil. PC15 J Bastidores: PC15-7100005-- 1988-1989
