JT SPROCKETS Fine gear transmission pinion 13T P-520 Ø19.5/22MM 726.47.16

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

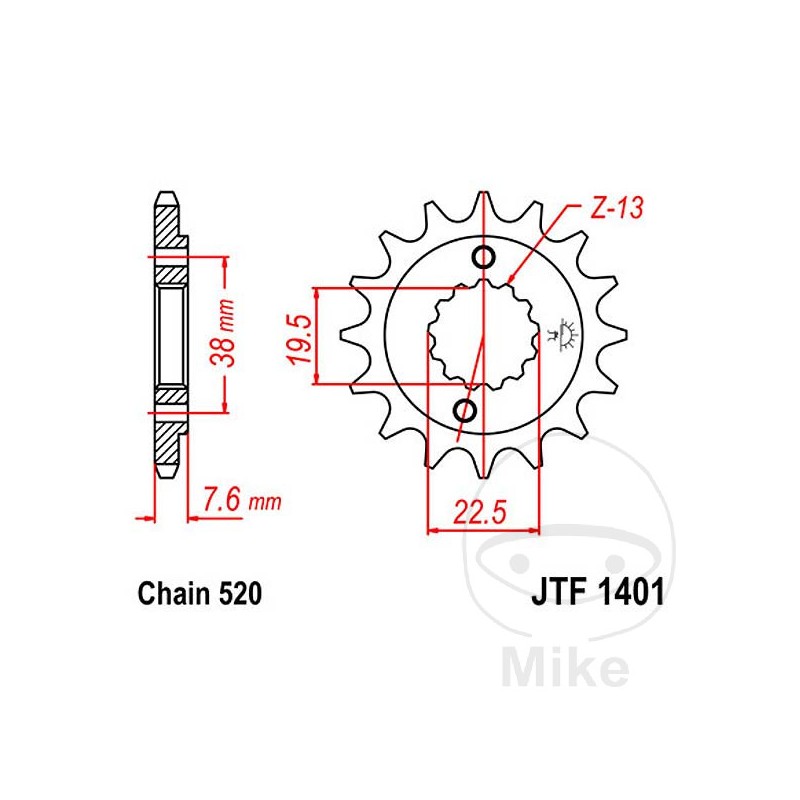

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 19.5 MM
MAX INSIDE DIAMETER: 22.5 MM
INNER GEAR (QUANTITY OF TEETH): 13
HOLES QUANTITY: 2
HOLES DISTANCE: 38 MM
WIDTH: 7.6MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Arctic Cat/Textron DVX 400 2WD 1cil. - Bastidores: --- 2004-2008
Goes G 450 R SM 44/21 CV, 32/15 kw 1cil. - Bastidores: --- 2014-2015
Goes G 450 X 51/20 CV, 38/14 kw 1cil. - Bastidores: --- 2009-2011
Hyosung TE 450 S Sport 51,7/19,3 CV, 38/14,2 kw 1cil. KM4AL42A Bastidores: --- 2007-2009
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 32 1 Bastidores: AK47B 32-100001-AK47B 32-999999 2003
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 42 2 Bastidores: AK47B 42-100001-AK47B 42-999999 2004
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 52 3 Bastidores: AK47B 52-100001-AK47B 52-999999 2005
Kawasaki KFX 400 A KSF 39/20 CV, 29/15 kw 1cil. AK47B 62 6F Bastidores: AK47B 62-100001-AK47B 62-999999 2006
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL41A K6 Bastidores: AL41A-62100001-- 2006
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL41A K7 Bastidores: AL41A-72100001-- 2007
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL43A K8 Bastidores: AL43A-82100001-- 2008
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL43A K9 Bastidores: AL43A-92100001-- 2009
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL43A L0 Bastidores: AL43A-A2100001-- 2010
Suzuki LT-R 450 Quadracer 53 CV, 39 kw 1cil. AL43A L1 Bastidores: AL43A-B2100001-- 2011-2012
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. 4K47A K8 Bastidores: 4K47A-82100001-- 2008
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K3 Bastidores: AK47A-32100001-- 2003
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K4 Bastidores: AK47A-42100001-- 2004
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K5 Bastidores: AK47A-52100001-- 2005
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K6 Bastidores: AK47A-62100001-- 2006
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK47A K7 Bastidores: AK47A-72100001-- 2007
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA K9 Bastidores: AK4AA-92100001-- 2009
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L0 Bastidores: AK4AA-A2100001-- 2010
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L1 Bastidores: AK4AA-B2100001-- 2011
Suzuki LT-Z 400 Quadsport 38 CV, 28 kw 1cil. AK4AA L2 Bastidores: AK4AA-C2100001-- 2012-2017
Triton Baja 400 LOF EFI Supermoto 28 CV, 21 kw 1cil. - Bastidores: --- 2014-2016
Triton Baja 400 LOF EFI Supermoto Black Lizard 28 CV, 21 kw 1cil. - Bastidores: --- 2013-2014
Triton Baja 400 LOF Supermoto 24,5 CV, 18 kw 1cil. - Bastidores: --- 2010-2016
Triton Baja 400 Supermoto 20,4 CV, 15 kw 1cil. - Bastidores: --- 2010-2016
Triton Reactor 450 R 20,4 CV, 15 kw 1cil. - Bastidores: --- 2010-2016
Triton Reactor 450 R 53,7/20,4 CV, 39,5/15 kw 1cil. - Bastidores: --- 2008-2009
Triton Reactor 450 R LOF 38 CV, 28 kw 1cil. - Bastidores: --- 2010-2016
Triton Supermoto 400 LOF EFI 28 CV, 21 kw 1cil. - Bastidores: --- 2012-2016
Triton Supermoto 450 20,4 CV, 15 kw 1cil. - Bastidores: --- 2010-2016
Triton Supermoto 450 53,7/20,4 CV, 39,5/15 kw 1cil. - Bastidores: --- 2008-2009
Triton Supermoto 450 LOF 38 CV, 28 kw 1cil. - Bastidores: --- 2010-2016
Triton Supermoto 450 LOF Black Lizard 38 CV, 28 kw 1cil. - Bastidores: --- 2012-2016
