JT SPROCKETS coarse gear transmission pinion 14T P-525 5 Ø21/25MM 726.47.08

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

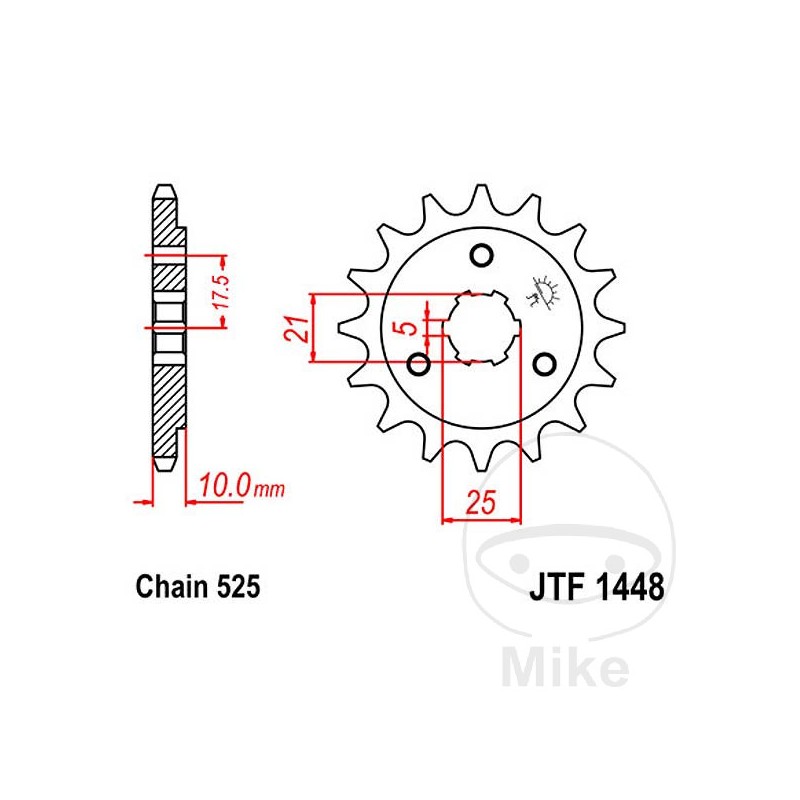

DIVISION: 525
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: 3
HOLES DISTANCE: 17.5 MM
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Sachs Roadster 650 34 CV, 25 kw 1cil. 830 830 Bastidores: --- 2000-2006
Sachs Roadster 650 50 CV, 37 kw 1cil. 830 830 Bastidores: --- 2000-2006
Suzuki DR 650 SE 44 CV, 32 kw 1cil. SP46B T Bastidores: SP46B henceforth00500001-SP46B henceforth00501710 1996
Suzuki DR 650 SE 44 CV, 32 kw 1cil. SP46B V Bastidores: SP46B henceforth00501711-SP46B henceforth00502735 1997
Suzuki DR 650 SE 44 CV, 32 kw 1cil. SP46B W Bastidores: SP46B henceforth00502736-SP46B henceforth00503488 1998
Suzuki DR 650 SE 44 CV, 32 kw 1cil. SP46B X Bastidores: SP46B henceforth00503489-SP46B henceforth00503800 1999
Suzuki DR 650 SE 44 CV, 32 kw 1cil. SP46B Y Bastidores: SP46B henceforth00503801-- 2000
Suzuki DR 650 SEU 34 CV, 25 kw 1cil. SP46B T Bastidores: SP46B henceforth00500001-SP46B henceforth00501710 1996
Suzuki DR 650 SEU 34 CV, 25 kw 1cil. SP46B V Bastidores: SP46B henceforth00501711-SP46B henceforth00502735 1997
Suzuki DR 650 SEU 34 CV, 25 kw 1cil. SP46B W Bastidores: SP46B henceforth00502736-SP46B henceforth00503488 1998
Suzuki DR 650 SEU 34 CV, 25 kw 1cil. SP46B X Bastidores: SP46B henceforth00503489-SP46B henceforth00503800 1999
Suzuki DR 650 SEU 34 CV, 25 kw 1cil. SP46B Y Bastidores: SP46B henceforth00503801-- 2000
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B R Bastidores: SR43B-103043-SR43B-104152 1994
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B S Bastidores: SR43B-104153-SR43B-105520 1995-1996
Suzuki DR 800 S Big 50 CV, 37 kw 1cil. SR43B V Bastidores: SR43B-105521-- 1997-1999
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B R Bastidores: SR43B-103043-SR43B-104152 1994
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B S Bastidores: SR43B-104153-SR43B-105520 1995-1996
Suzuki DR 800 SU Big 34 CV, 25 kw 1cil. SR43B V Bastidores: SR43B-105521-- 1997-1999
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 K1 Bastidores: AC1112 henceforth0114394-- 2001-2002
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 V Bastidores: AC1112 henceforth0100001-AC1112 henceforth0103735 1997
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 W Bastidores: AC1112 henceforth0103736-AC1112 henceforth0109546 1998
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 X Bastidores: AC1112 henceforth0109547-AC1112 henceforth0112016 1999
Suzuki XF 650 Freewind 48 CV, 35 kw 1cil. AC1112 Y Bastidores: AC1112 henceforth0112017-AC1112 henceforth0114393 2000
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 K1 Bastidores: AC2112 henceforth0101790-- 2001-2002
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 V Bastidores: AC2112 henceforth0100001-AC2112 henceforth0104112 1997
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 W Bastidores: AC2112 henceforth0104113-AC2112 henceforth0101379 1998
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 X Bastidores: AC2112 henceforth0101380-AC2112 henceforth0101639 1999
Suzuki XF 650 U Freewind 34 CV, 25 kw 1cil. AC2112 Y Bastidores: AC2112 henceforth0101640-AC2112 henceforth0101789 2000
