JT SPROCKETS coarse gear transmission pinion 14T P-420 3.5 Ø13/16MM 726.45.59

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

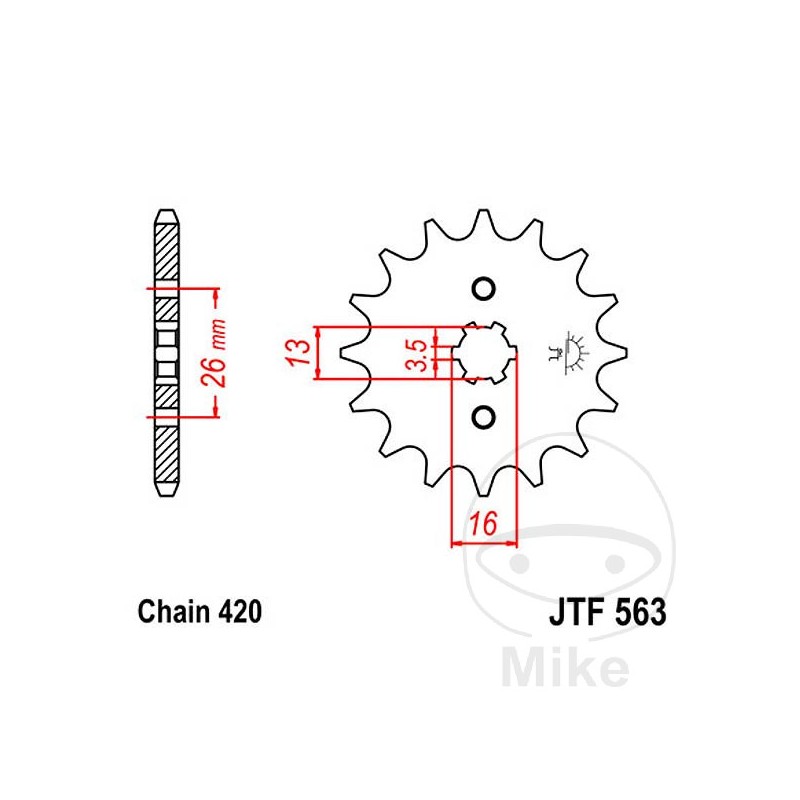

DIVISION: 420
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 13 MM
INTERNAL DIAMETER MAX.: 16 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 3.5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 26 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A K Bastidores: AA11A-K1100001-- 1989
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A K1 Bastidores: AA11A-11100001-- 2001
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A K2 Bastidores: AA11A-21100001-- 2002
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A K3 Bastidores: AA11A-31100001-- 2003
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A L Bastidores: AA11A-L1100001-- 1990-1998
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A X Bastidores: AA11A-X1100001-- 1999
Suzuki LT 50 1,36 CV, 1 kw 1cil. AA11A Y Bastidores: AA11A-Y1100001-- 2000
Suzuki LT-A 50 Quadmaster 1,36 CV, 1 kw 1cil. AA123 K2 Bastidores: AA123-21100001-- 2002
Suzuki LT-A 50 Quadmaster 1,36 CV, 1 kw 1cil. AA123 K3 Bastidores: AA123-31100001-- 2003
Suzuki LT-A 50 Quadmaster 1,36 CV, 1 kw 1cil. AA123 K4 Bastidores: AA123-41100001-- 2004
Suzuki TS 50 ERK 2,7 CV, 2 kw 1cil. TS50XK T Bastidores: TS50XK-102109-TS50XK-116716 1980
Suzuki TS 50 ERK 2,7 CV, 2 kw 1cil. TS50XK X Bastidores: TS50XK-116717-- 1981-1983
Yamaha DT 50 M 3 CV, 2,2 kw 1cil. 2M4 2M4 Bastidores: 2M4-200101-- 1980-1984
Yamaha DT 50 MX 3 CV, 2,2 kw 1cil. 13N 13N Bastidores: 13N henceforth00101-13N henceforth10000 1982
Yamaha DT 50 MX 3 CV, 2,2 kw 1cil. 13N 13N Bastidores: 13N henceforth10101-13N henceforth10301 1983-1985
Yamaha DT 80 MX 6,8 CV, 5 kw 1cil. 5J1 5J1 Bastidores: 5J1 henceforth00101-5J1-100000 1981
Yamaha DT 80 MX 6,8 CV, 5 kw 1cil. 5J1 5J1 Bastidores: 5J1-100101-5J1-150000 1982-1984
Yamaha FS1 50 2,9 CV, 2,1 kw 1cil. 394 1Y0 Bastidores: 394-200101-- 1977-1978
Yamaha FS1 50 DX 2,9 CV, 2,1 kw 1cil. 3F2 3F2 Bastidores: 3F2 henceforth00101-- 1979-1980
Yamaha FS1 50 DX 2,9 CV, 2,1 kw 1cil. 468 1Y2 Bastidores: 468-200101-- 1977-1978
Yamaha FS1G 50 2,9 CV, 2,1 kw 1cil. 468 468 Bastidores: 468 henceforth10101-468 henceforth20000 1975
Yamaha FS1G 50 2,9 CV, 2,1 kw 1cil. 468 468 Bastidores: 468 henceforth20101-468 henceforth30000 1976
Yamaha FS1G 50 DX 2,9 CV, 2,1 kw 1cil. 468 1K0 Bastidores: 468-301101-468-400000 1976
Yamaha RD 50 2,9 CV, 2 kw 1cil. 353 2U1 Bastidores: 353-230101-353-240000 1978
Yamaha RD 50 DX 6,2 CV, 4,6 kw 1cil. 353 526 Bastidores: 353-200101-353-210000 1975
Yamaha RD 50 DX 6,2 CV, 4,6 kw 1cil. 353 526 Bastidores: 353-210101-- 1976-1980
Yamaha RD 50 M 3 CV, 2,2 kw 1cil. 2E0 2L4 Bastidores: 2E0 henceforth40101-- 1980-1984
Yamaha RD 50 MX 3 CV, 2,2 kw 1cil. 13M 13M Bastidores: 13M henceforth00101-13M henceforth10000 1982-1984
Yamaha RD 80 MX 6,8 CV, 5 kw 1cil. 5G1 5G1 Bastidores: 5G1 henceforth00101-5G1 henceforth50000 1981
Yamaha RD 80 MX 6,8 CV, 5 kw 1cil. 5G1 5G1 Bastidores: 5G1 henceforth50101-5G1-100000 1982-1984
Yamaha RX 80 SE 7,5 CV, 5,5 kw 1cil. 12N 12N Bastidores: 12N henceforth00101-12N henceforth10000 1982-1984
Yamaha TY 50 M 2,9 CV, 2 kw 1cil. 1G3 2J8 Bastidores: 1G3-300101-1G3-310000 1980
