JT SPROCKETS coarse gear transmission pinion 18T P-428 5 Ø21/25MM 726.45.42

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

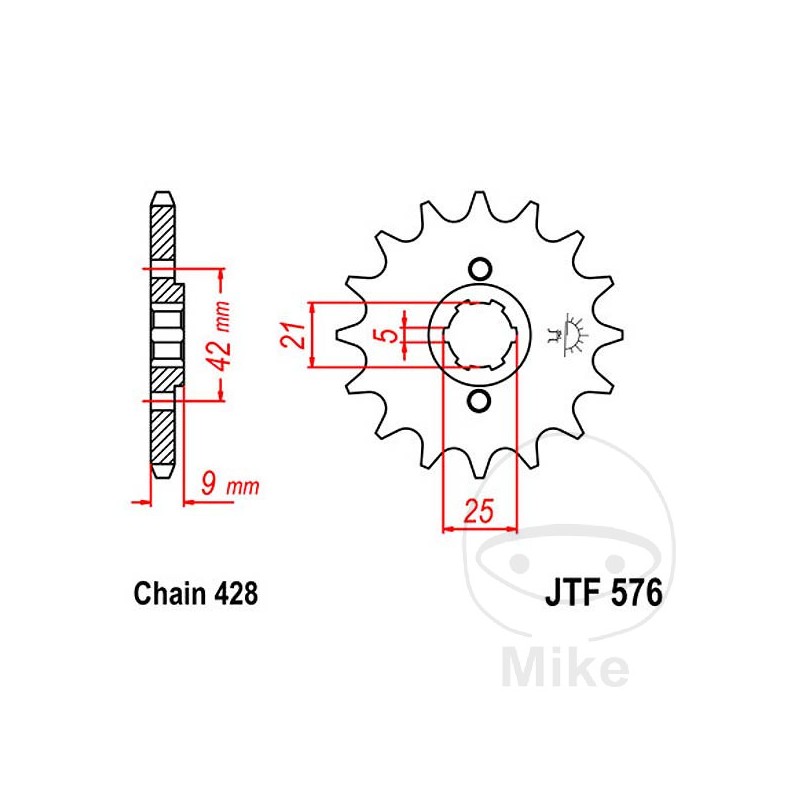

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 9MM
VERSION: STANDARD
QTY TEETH: 18


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha XT 350 H 27 CV, 20 kw 1cil. 55V 59Y Bastidores: 55V henceforth15101-55V henceforth23000 1985
Yamaha XT 350 H 27 CV, 20 kw 1cil. 55V 59Y Bastidores: 55V henceforth40101-55V henceforth45000 1986
Yamaha XT 350 H 27 CV, 20 kw 1cil. 55V 59Y Bastidores: 55V henceforth45101-55V henceforth47000 1987
Yamaha XT 350 H 27 CV, 20 kw 1cil. 55V 59Y Bastidores: 55V henceforth71101-55V henceforth73000 1988-1990
Yamaha XT 350 N 17 CV, 13 kw 1cil. 1WM 1WM Bastidores: 1WM henceforth23101-- 1986
Yamaha XT 350 N 17 CV, 13 kw 1cil. 3YT 3YT1 Bastidores: 3YT henceforth00101-3YT henceforth05000 1991
Yamaha XT 350 N 17 CV, 13 kw 1cil. 3YT 3YT3 Bastidores: 3YT henceforth09101-- 1992-1995
Yamaha XT 350 N 17 CV, 13 kw 1cil. 55V 1WM Bastidores: 55V henceforth57101-55V henceforth59000 1987
Yamaha XT 350 N 17 CV, 13 kw 1cil. 55V 1WM Bastidores: 55V henceforth59101-55V henceforth61000 1988-1990
