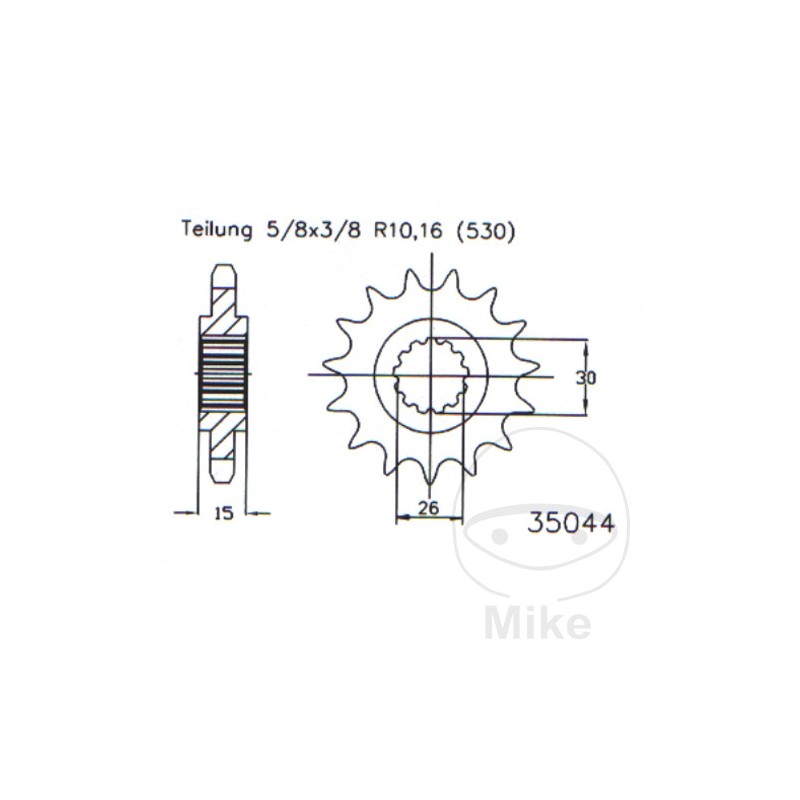

ESJOT Fine gear transmission pinion 17T P-530 Ø26/30MM 726.43.51

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 530
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 26 MM
MAX INSIDE DIAMETER: 30 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 15MM
VERSION: STANDARD
QTY TEETH: 17


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MZ/MUZ 1000 1000 S 100 CV, 73 kw 2cil. MZ1000 Bastidores: --- 2003-2008
MZ/MUZ 1000 1000 S 117 CV, 86 kw 2cil. MZ1000 Bastidores: --- 2003-2008
MZ/MUZ 1000 1000 S 98 CV, 72 kw 2cil. MZ1000 Bastidores: --- 2003-2008
MZ/MUZ 1000 1000 SF 113/98 CV, 83/72 kw 2cil. MZ1000 Bastidores: --- 2005-2008
MZ/MUZ 1000 1000 ST 113/98 CV, 83/72 kw 2cil. MZ1000 Bastidores: --- 2006-2008
