JT SPROCKETS coarse gear transmission pinion 14T P-428 4 Ø16/20MM 726.41.38

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

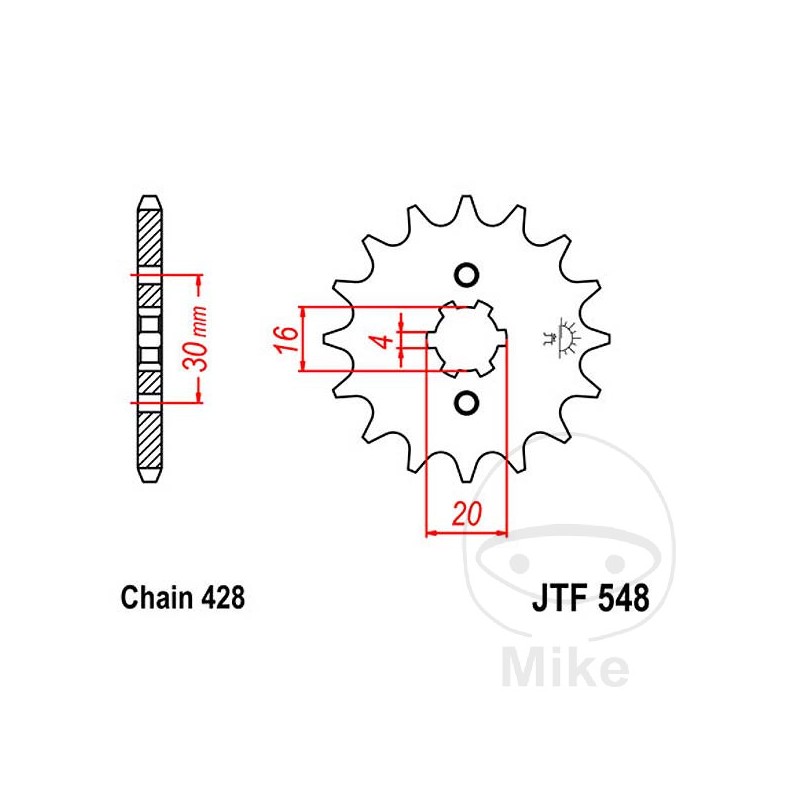

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 30 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha TT-R 125 1cil. CE07W 5HP1 Bastidores: CE07W henceforth00101-- 2000
Yamaha TT-R 125 1cil. CE07Y 5HP6 Bastidores: CE07Y henceforth05554-- 2001
Yamaha TT-R 125 1cil. CE07Y 5HPB Bastidores: CE07Y henceforth23525-- 2002
Yamaha TT-R 125 1cil. CE07Y 5HPF Bastidores: CE07Y henceforth47527-- 2003
Yamaha TT-R 125 1cil. CE07Y 5HPP Bastidores: CE07Y henceforth69640-- 2004
Yamaha TT-R 125 E 1cil. CE11Y 5HPK Bastidores: CE11Y henceforth00008-- 2003
Yamaha TT-R 125 E 1cil. CE11Y 5HPS Bastidores: CE11Y henceforth03710-- 2004
Yamaha TT-R 125 LW 1cil. CE07Y 5HP4 Bastidores: CE07Y henceforth00119-- 2000
Yamaha TT-R 125 LW 1cil. CE07Y 5HP9 Bastidores: CE07Y henceforth05914-- 2001
Yamaha TT-R 125 LW 1cil. CE07Y 5HPD Bastidores: CE07Y henceforth23725-- 2002
Yamaha TT-R 125 LW 1cil. CE07Y 5HPH Bastidores: CE07Y henceforth47427-- 2003
Yamaha TT-R 125 LW 1cil. CE07Y 5HPU Bastidores: CE07Y henceforth69592-- 2004
Yamaha TT-R 125 LW 1cil. CE18W 19CK Bastidores: CE18W henceforth00401-- 2011
Yamaha TT-R 125 LW 1cil. CE18W 19CR Bastidores: CE18W henceforth00551-- 2012
Yamaha TT-R 125 LW 1cil. CE18W 2CP2 Bastidores: CE18W henceforth00601-- 2013
Yamaha TT-R 125 LW 1cil. CE18W 2CP4 Bastidores: CE18W henceforth00651-- 2014
Yamaha TT-R 125 LW 1cil. CE18W 2CP6 Bastidores: CE18W henceforth00701-- 2015
Yamaha TT-R 125 LW 1cil. CE18W 2CP8 Bastidores: CE18W henceforth00851-- 2016
Yamaha TT-R 125 LWE 1cil. CE12Y 5HPM Bastidores: CE12Y henceforth00019-- 2003
Yamaha TT-R 125 LWE 1cil. CE12Y 5HPW Bastidores: CE12Y henceforth06766-- 2004
Yamaha TT-R 125 LWE 1cil. CE21W 19CN Bastidores: CE21W henceforth02351-- 2011
Yamaha TT-R 125 LWE 1cil. CE21W 19CU Bastidores: CE21W henceforth02951-- 2012
Yamaha TT-R 125 LWE 1cil. CE21W 19CX Bastidores: CE21W henceforth03601-- 2013
Yamaha TT-R 125 LWE 1cil. CE21W 2PT3 Bastidores: CE21W henceforth04051-- 2014-2015
Yamaha TT-R 125 LWE 1cil. CE21W 2PT9 Bastidores: CE21W henceforth05001-- 2016
Yamaha TT-R 125 LWE 1cil. CE21W 2PTC Bastidores: CE21W henceforth05401-- 2017-2021
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401G 13D3 Bastidores: 7401G074 henceforth21663-- 2007
Yamaha XT 125 R 10 CV, 7,3 kw 1cil. 7401G 13D5 Bastidores: 7401G074 henceforth24439-- 2008-2012
Yamaha XT 125 X 10 CV, 7,3 kw 1cil. 7401H 13D6 Bastidores: 7401H074 henceforth25142-- 2008-2012
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE051 3D99 Bastidores: RE051-274253-- 2009
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE052 51D1 Bastidores: RE052 000003-- 2010-2011
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE052 51D2 Bastidores: RE052 henceforth45801-- 2012-2013
Yamaha YBR 125 ED 10 CV, 7,5 kw 1cil. RE054 51D3 Bastidores: RE054 henceforth00101-- 2014-2016
Yamaha YBR 125 ED 10,3 CV, 7,6 kw 1cil. RE051 3D92 Bastidores: RE051 henceforth00121-- 2007-2008
Yamaha YBR 125 SPD Custom 10 CV, 7,5 kw 1cil. RE071 27S1 Bastidores: RE071 henceforth04796-- 2008-2016
Yamaha YFM 125 R Raptor 1cil. - Bastidores: --- 2011-2013
