JT SPROCKETS coarse gear transmission pinion 17T P-428 5 Ø17/20MM 726.39.99

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

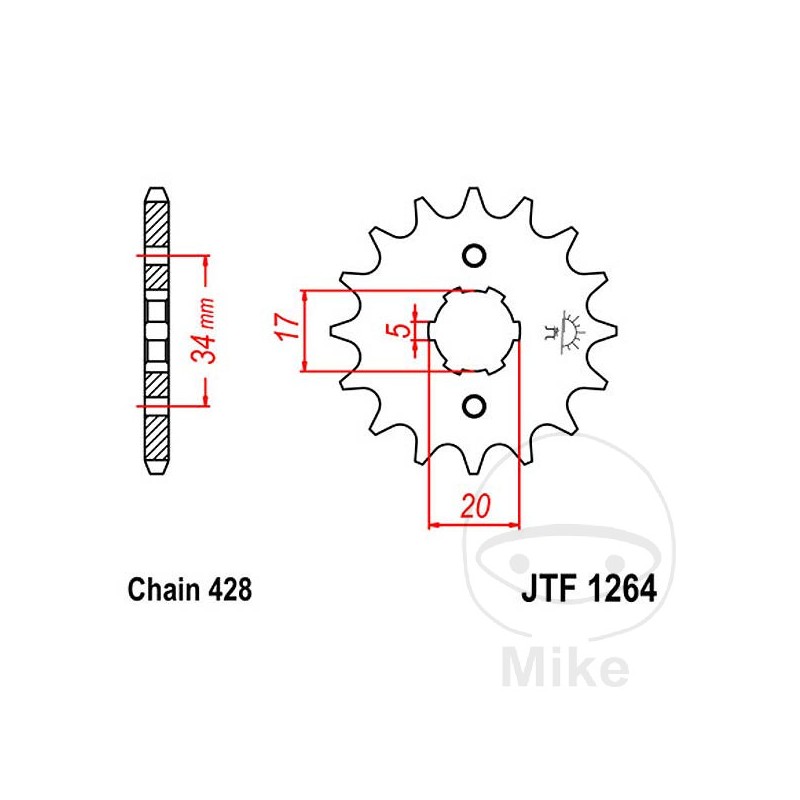

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
VERSION: STANDARD
QTY TEETH: 17


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
ATU Meteorit 125 Cruiser 11 CV, 8 kw 1cil. RF-25 Bastidores: --- 1998-2000
Honda CB 125 F (GLR125) 10,6 CV, 7,8 kw 1cil. JC64A F Bastidores: LWB JC64A-F1000015-LWB JC64A-F1099999 2015-2016
Honda CB 125 F (GLR125WH) CBS 10,6 CV, 7,8 kw 1cil. JC74A H Bastidores: LWB JC74A-H1000017-- 2017-2020
Honda CB 125 FM (CBF125MM) CBS 10,9 CV, 8 kw 1cil. JC84A M Bastidores: ZDC JC84A-MF000001-- 2021-2023
Honda CB 125 R Neo Sports Cafe (CBF125NA) ABS 13,3 CV, 9,8 kw 1cil. JC79E J Bastidores: MLH JC79E-J5000001-- 2018-2020
Honda CB 125 R Neo Sports Cafe (CBF125NA) ABS 15 CV, 11 kw 1cil. JC91A M Bastidores: MLH JC91A-M5000001-- 2021-2022
Honda CBF 125 M 11,3 CV, 8,3 kw 1cil. JC40A 9 Bastidores: ME4 JC40A henceforth98000001-ME4 JC40A henceforth98999999 2009
Honda CBF 125 M 11,3 CV, 8,3 kw 1cil. JC40A A Bastidores: ME4 JC40A-A8000001-ME4 JC40A-A8999999 2010
Honda CBF 125 M 11,3 CV, 8,3 kw 1cil. JC40A B Bastidores: ME4 JF40A-B8000001-ME4 JC40A-B8999999 2011-2012
Honda CBF 125 M 11,3 CV, 8,3 kw 1cil. JC40A D Bastidores: ME4 JC40A-D8000001-- 2013-2016
Honda CBR 125 R 13,3 CV, 10 kw 1cil. JC50A C Bastidores: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
Honda CBR 125 R 13,3 CV, 10 kw 1cil. JC50A D Bastidores: MLH JC50A-D5100001-- 2013-2014
Honda CBR 125 R 13,3 CV, 10 kw 1cil. JC50A F Bastidores: MLH JC50A-D5200001-- 2015-2019
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 4 Bastidores: MLH JC34A-45000001-MLH JC34A-45099999 2004
Honda CBR 125 R 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A 555100001-MLH JC34A-555199999 2005
Honda CBR 125 R 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50A D Bastidores: MLH JC50B-D5100001-- 2013-2014
Honda CBR 125 R 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B C Bastidores: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
Honda CBR 125 R 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B F Bastidores: MLH JC50B-D5200001-- 2015
Honda CBR 125 RS Repsol 13,3 CV, 10 kw 1cil. JC50A D Bastidores: MLH JC50A-D5100001-- 2013-2014
Honda CBR 125 RS Repsol 13,3 CV, 10 kw 1cil. JC50A F Bastidores: MLH JC50A-D5200001-- 2015-2019
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006-2007
Honda CBR 125 RS Repsol 13,6 CV, 10 kw 1cil. JC50A C Bastidores: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
Honda CBR 125 RS Repsol 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B C Bastidores: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
Honda CBR 125 RS Repsol 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B D Bastidores: MLH JC50B-D5100001-- 2013-2014
Honda CBR 125 RS Repsol 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B F Bastidores: MLH JC50B-D5200001-- 2015
Honda CBR 125 RT 13,3 CV, 10 kw 1cil. JC50A C Bastidores: MLH JC50A-C5000001-MLH JC50A-C5099999 2012
Honda CBR 125 RT 13,3 CV, 10 kw 1cil. JC50A D Bastidores: MLH JC50A-D5100001-- 2013-2014
Honda CBR 125 RT 13,3 CV, 10 kw 1cil. JC50A F Bastidores: MLH JC50A-D5200001-- 2015-2019
Honda CBR 125 RT 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B C Bastidores: MLH JC50B-C5000001-MLH JC50B-C5099999 2012
Honda CBR 125 RT 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B D Bastidores: MLH JC50B-D5100001-- 2013-2014
Honda CBR 125 RT 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B F Bastidores: MLH JC50B-D5200001-- 2015
Honda CBR 125 RW 13,3 CV, 10 kw 1cil. JC50A B Bastidores: MLH JC50A-B5000001-MLH JC50A-B5099999 2011
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 5 Bastidores: MLH JC34A-555100001-MLH JC34A-555199999 2005
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC34A 6 Bastidores: MLH JC34A-65200001-MLH JC34A-65299999 2006
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A 7 Bastidores: MLH JC39A-75000001-MLH JC39A-75099999 2007-2008
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A 9 Bastidores: MLH JC39A-95100001-MLH JC39A-95199999 2009
Honda CBR 125 RW 13,6 CV, 10 kw 1cil. JC39A A Bastidores: MLH JC39A-A5200001-- 2010
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B 7 Bastidores: MLH JC39B-75000001-MLH JC39B-75099999 2007-2008
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B 9 Bastidores: MLH JC39B-95100001-MLH JC39B-95199999 2009
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC39B A Bastidores: MLH JC39B-A5200001-- 2010
Honda CBR 125 RW 80 Km/h 6,4 CV, 4,7 kw 1cil. JC50B B Bastidores: MLH JC50B-B5000001-MLH JC50B-B5099999 2011
Kymco Hipster 125 2V 12,6 CV, 9,3 kw 1cil. R10010 Bastidores: RFBR10010-- 2002-2004
Kymco Hipster 125 4V 12,6 CV, 9,3 kw 1cil. R11010 Bastidores: RFBR11010-- 2002-2004
Kymco Stryker 125 II Off Road 10,8 CV, 7,9 kw 1cil. AF25BD Bastidores: RFBAF25BD-- 2006-2007
Kymco Stryker 125 Off Road 10,9 CV, 8 kw 1cil. AF25AB Bastidores: RFBAF25AB-- 2000-2005
Kymco Stryker 125 On Road 10,9 CV, 8 kw 1cil. AF25AA Bastidores: RFBAF25AA-- 2000-2003
Kymco Zing 125 10,9 CV, 8 kw 1cil. RF25AA Bastidores: RFBRF25AA-- 1997-2001
Kymco Zing 125 II i 11,7 CV, 8,6 kw 1cil. RF25BG Bastidores: RFBRF25BG-- 2008-2015
