JT SPROCKETS coarse gear transmission pinion 13T P-520 4 Ø16/20MM 726.37.18

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

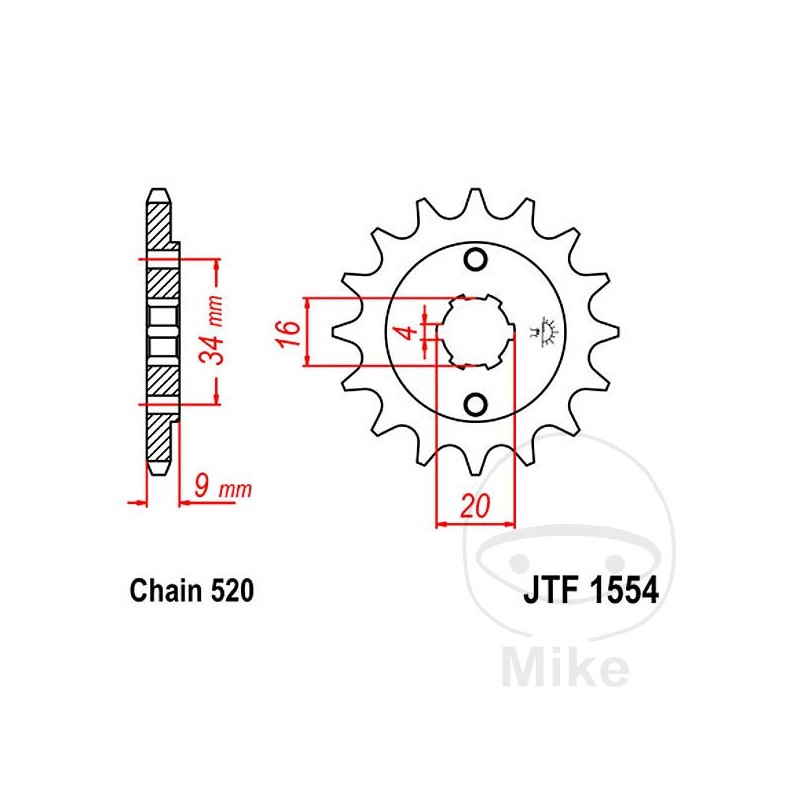

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 9MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Hyosung GD 250 N i Naked 28 CV, 20,6 kw 1cil. KM4NF46C Bastidores: --- 2014-2017
Hyosung GD 250 R i 28 CV, 20,6 kw 1cil. KM4NF46D Bastidores: --- 2015-2017
Hyosung GT 250 N i Naked Version E 26,6 CV, 19,6 kw 2cil. KM4MJ55A Bastidores: --- 2010-2011
Hyosung GT 250 Naked 28 CV, 20,5 kw 2cil. KM4MJ51B Bastidores: --- 2004-2007
Hyosung GT 250 P i Naked Delphi 28 CV, 20,6 kw 2cil. KM4MJ57A Bastidores: --- 2012-2016
Hyosung GT 250 R i Comet 28 CV, 20,6 kw 2cil. - Bastidores: --- 2016-2017
Hyosung GT 250 R i Delphi Version H 28 CV, 20,6 kw 2cil. KM4MJ57B Bastidores: --- 2012-2015
Hyosung GT 250 R i Version F 26,6 CV, 19,6 kw 2cil. KM4MJ55B Bastidores: --- 2011
Hyosung GV 250 Aquila 28 CV, 20,6 kw 2cil. KM4MJ51A Bastidores: --- 2001-2007
Hyosung GV 250 i Aquila Classic Delphi Version D 25,6 CV, 18,8 kw 2cil. KMMJ56A Bastidores: --- 2012-2017
Hyosung GV 250 i Aquila Classic S& Version C 25 CV, 18,3 kw 2cil. KM4MJ54A Bastidores: --- 2009-2011
Hyosung GV 250 i Aquila S& 28 CV, 20,7 kw 2cil. KM4MJ53A Bastidores: --- 2008-2009
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. 3JM 5KJ2 Bastidores: 3JM-318994-- 2000
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. 3JM 5KJ5 Bastidores: 3JM-344998-- 2001
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. 3JM 5KJ8 Bastidores: 3JM-377050-- 2002
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM2 Bastidores: AG02W henceforth00010-- 2003
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM4 Bastidores: AG02W henceforth05480-- 2004
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM6 Bastidores: AG02W henceforth11989-- 2005
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VM8 Bastidores: AG02W henceforth16552-- 2006
Yamaha YFS 200 Blaster 21 CV, 15 kw 1cil. AG02W 5VMB Bastidores: AG02W henceforth19784-- 2007
Yamaha YFS 200 Blaster Special Edition 21 CV, 15 kw 1cil. AG02W 5VMA Bastidores: AG02W henceforth17051-- 2006
