JT SPROCKETS coarse gear transmission pinion 12T P-420 4 Ø16/20MM 726.29.67

The JT Sprockets manufacturing plant is currently the largest and most modern in the world for the production of sprockets and sprockets,

equipped with state-of-the-art CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the aftermarket and original equipment.

Each sprocket goes through 25 production phases and is subjected to more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best profile of the teeth.

After post heat treatment, each part is checked by hand - this is how JT Sprockets sets new standards of quality in the motorcycle industry.

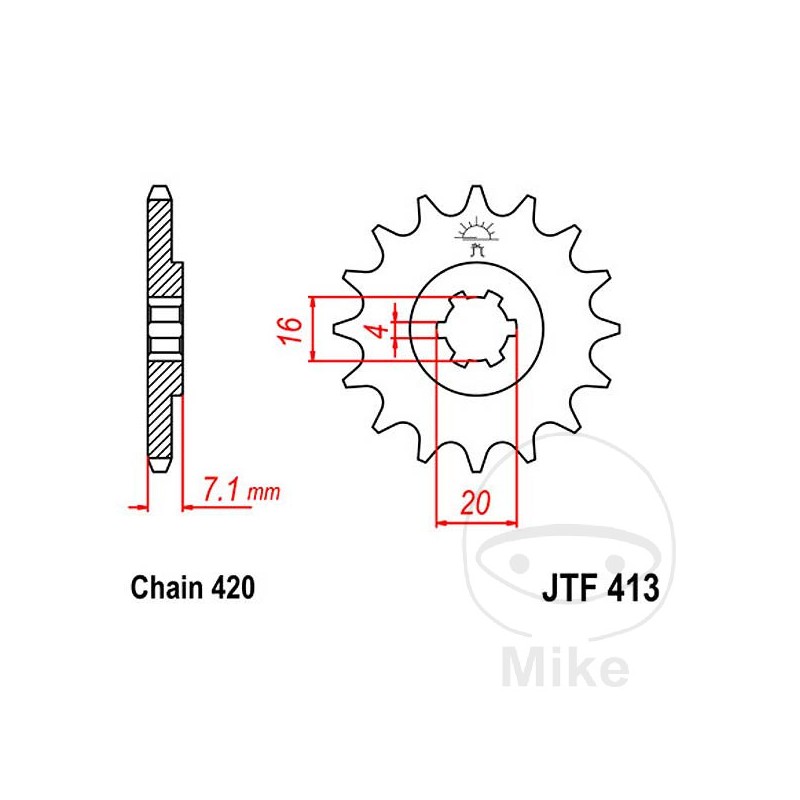

DIVISION: 420
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 7.1MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki RM 80 X 1cil. RC12A G Bastidores: RC12A-100001-RC12A-101483 1986
Suzuki RM 80 X 1cil. RC12A H Bastidores: RC12A-101484-RC12A-102345 1987
Suzuki RM 80 X 26 CV, 19 kw 1cil. RC12A J Bastidores: RC12A-102346-RC12A-102890 1988
Suzuki TS 50 XK 3,2 CV, 2,3 kw 1cil. SA11C R Bastidores: SA11C-143371-- 1994-1997
Suzuki TS 50 XK 3,4 CV, 2,5 kw 1cil. SA11C M Bastidores: SA11C-132261-SA11C-143370 1991-1993
