JT SPROCKETS coarse gear transmission pinion 13T P-520 4 Ø18/20MM 726.26.03

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

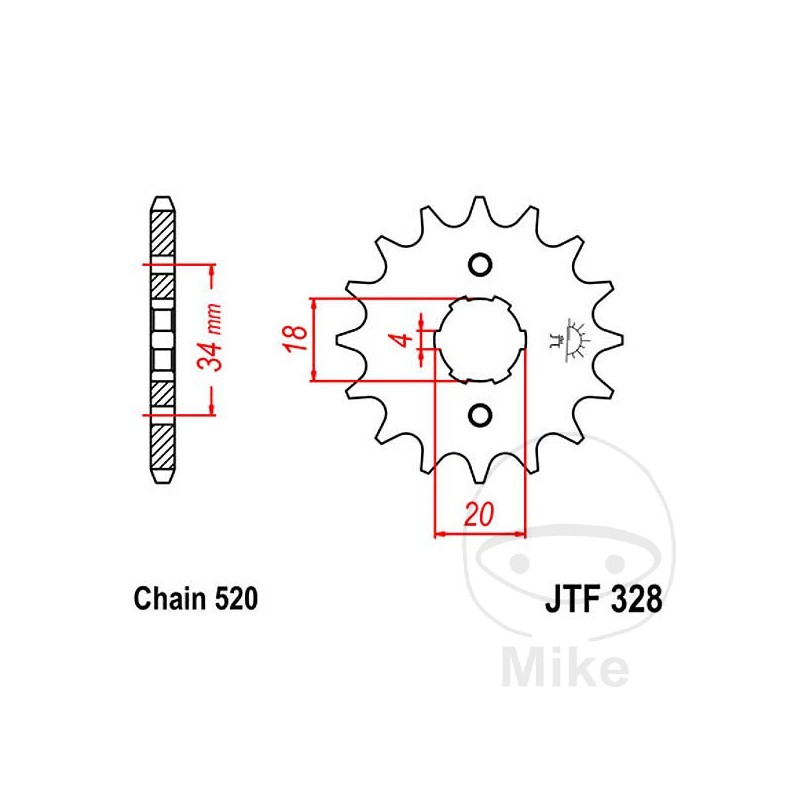

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 18 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 7MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
E-Ton BXL 100 Draco 1cil. - Bastidores: --- 2005-2006
E-Ton BXL 50 Draco 5,2/3,1 CV, 3,8/2,3 kw 1cil. - Bastidores: --- 2004-2006
E-Ton DXL 50 Tornado 1cil. - Bastidores: --- 2004-2006
E-Ton DXL 90 U 2T Sierra 1cil. - Bastidores: --- 2003-2005
E-Ton EXL 50 ST Viper 1cil. - Bastidores: --- 2012-2013
E-Ton EXL 50 ST Viper 3,8 CV, 2,8 kw 1cil. - Bastidores: --- 2009-2011
E-Ton RXL 70 4S 4T Viper 4,6 CV, 3,4 kw 1cil. - Bastidores: --- 2009-2013
E-Ton RXL 90 2T Viper 1cil. - Bastidores: --- 2003-2005
E-Ton RXL 90 4T Viper 6,5 CV, 4,8 kw 1cil. - Bastidores: --- 2009
E-Ton RXL 90 R 4T Viper 6,5 CV, 4,8 kw 1cil. - Bastidores: --- 2009-2013
Explorer Stinger 250 17,7 CV, 13 kw 2cil. - Bastidores: --- 2009-2011
Explorer Titan 300 20,4 CV, 15 kw 2cil. - Bastidores: --- 2009-2011
Honda XL 200 R 17 CV, 13 kw 1cil. MD06 D Bastidores: MD06-5000001-MD06-5099999 1983-1984
Honda XR 200 19 CV, 14 kw 1cil. ME02 A Bastidores: ME02-5100012-ME02-5107049 1980
Honda XR 200 19 CV, 14 kw 1cil. ME020 B Bastidores: ME020-BK200001-ME020-BK202164 1981
Honda XR 200 19 CV, 14 kw 1cil. ME020 C Bastidores: ME020-CK300004-ME020-CK303395 1982
Honda XR 200 19 CV, 14 kw 1cil. ME020 D Bastidores: ME020-DK400001-ME020-DK402563 1983
Honda XR 200 19 CV, 14 kw 1cil. ME020 E Bastidores: ME020-EK500001-- 1984
Honda XR 200 R 1cil. ME040 B Bastidores: ME040-BK000037-ME040-BK004171 1981
Honda XR 200 R 1cil. ME040 C Bastidores: ME040-CK100001-ME040-CK110976 1982
Honda XR 200 R 1cil. ME040 D Bastidores: ME040-DK200001-- 1983
Honda XR 200 R 1cil. ME050 E Bastidores: JH2 ME050-EK000006-- 1984
Honda XR 200 R 1cil. ME050 F Bastidores: JH2 ME050-FK100001-- 1985
Honda XR 200 R 1cil. ME050 G Bastidores: JH2 ME050-GK200001-- 1986
Honda XR 200 R 1cil. ME050 H Bastidores: JH2 ME050-HK300001-- 1987
Honda XR 200 R 1cil. ME050 J Bastidores: JH2 ME050-JK400001-- 1988-1989
Honda XR 200 R 1cil. ME050 L Bastidores: JH2 ME050-LK500001-- 1990
Honda XR 200 R 1cil. ME050 M Bastidores: JH2 ME050-MK600001-- 1991-1992
Honda XR 200 R 1cil. ME050 P Bastidores: JH2 ME050-PK700001-- 1993
SMC/Barossa Cheetah 170 14 CV, 10 kw 1cil. - AAM 170 Bastidores: --- 2003-2008
SMC/Barossa Magna 170 14 CV, 10 kw 1cil. - AAM 170 Bastidores: --- 2005-2006
SMC/Barossa Silver Hawk 170 R 14 CV, 10 kw 1cil. - AAM 170 Bastidores: --- 2006-2007
