JT SPROCKETS coarse gear transmission pinion 15T P-520 6 Ø22/25MM 726.25.79

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

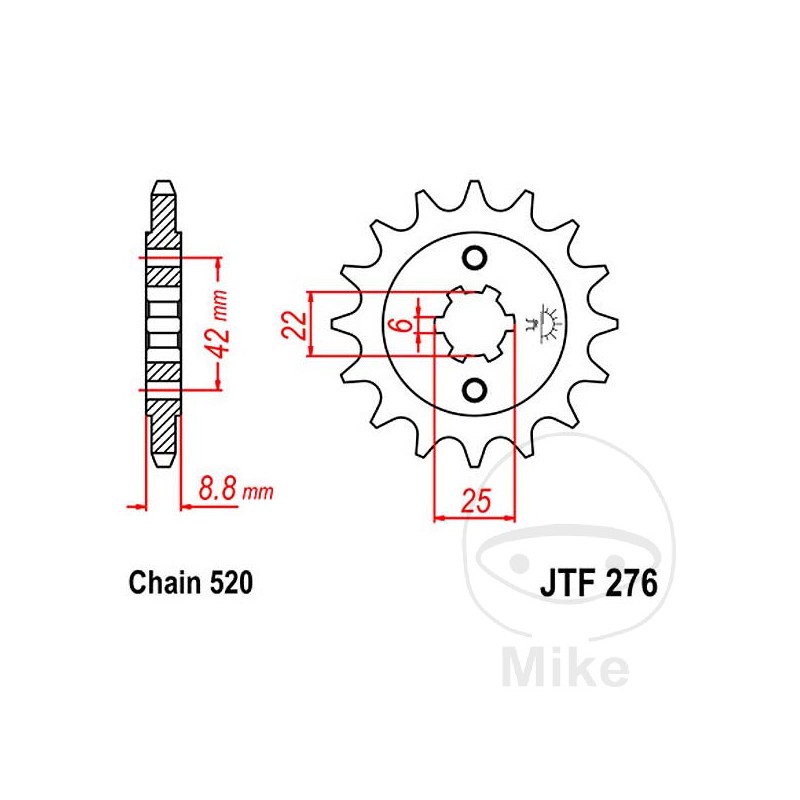

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 8.8MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N Bastidores: CB250N-3000008-CB250N-3004407 1978-1979
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N A Bastidores: CB250N-3100001-CB250N-3199999 1980
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N B Bastidores: CB250N-3200002-CB250N-3299999 1981
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N Bastidores: CB250N-2005191-CB250N-2005240 1978-1979
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N A Bastidores: CB250N-2108874-CB250N-2106923 1980
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N B Bastidores: CB250N-2200001-CB250N-2299999 1981
Honda CB 250 ND Euro 17 CV, 13 kw 2cil. CB250N C Bastidores: CB250N-3300001-CB250N-3399999 1982
Honda CB 250 ND Euro 17 CV, 13 kw 2cil. CB250N D Bastidores: CB250N-3300001-CB250N-3399999 1983
Honda CB 250 ND Euro 27 CV, 20 kw 2cil. CB250N C Bastidores: CB250N-2300056-CB250N-2399999 1982
Honda CB 250 ND Euro 27 CV, 20 kw 2cil. CB250N D Bastidores: CB250N-2400001-CB250N-2499999 1983
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N B Bastidores: CB400N-3200002-CB400N-3207397 1981
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N C Bastidores: CB400N-3300004-CB400N-3399999 1982
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N D Bastidores: CB400N-3400001-CB400N-3499999 1983-1985
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N B Bastidores: CB400N-2200011-CB400N-2203108 1981
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N C Bastidores: CB400N-2300012-CB400N-2399999 1982
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N D Bastidores: CB400N-2400001-CB400N-2499999 1983-1985
Honda CM 250 T Custom 2cil. MC05 B Bastidores: MC05-2000012-- 1981
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 B Bastidores: NC01-3100002-NC01-3106001 1981
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 B Bastidores: NC01-2200466-NC01-2203476 1981
Honda CM 400 T Custom 27 CV, 20 kw 2cil. NC01 C Bastidores: NC01-3200004-NC01-3203044 1982-1983
Honda CM 400 T Custom 43 CV, 32 kw 2cil. NC01 C Bastidores: NC01-2300004-NC01-2301420 1982-1983
