JT SPROCKETS coarse gear transmission pinion 16T P-530 6 Ø21/25MM 726.21.73

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully leave production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

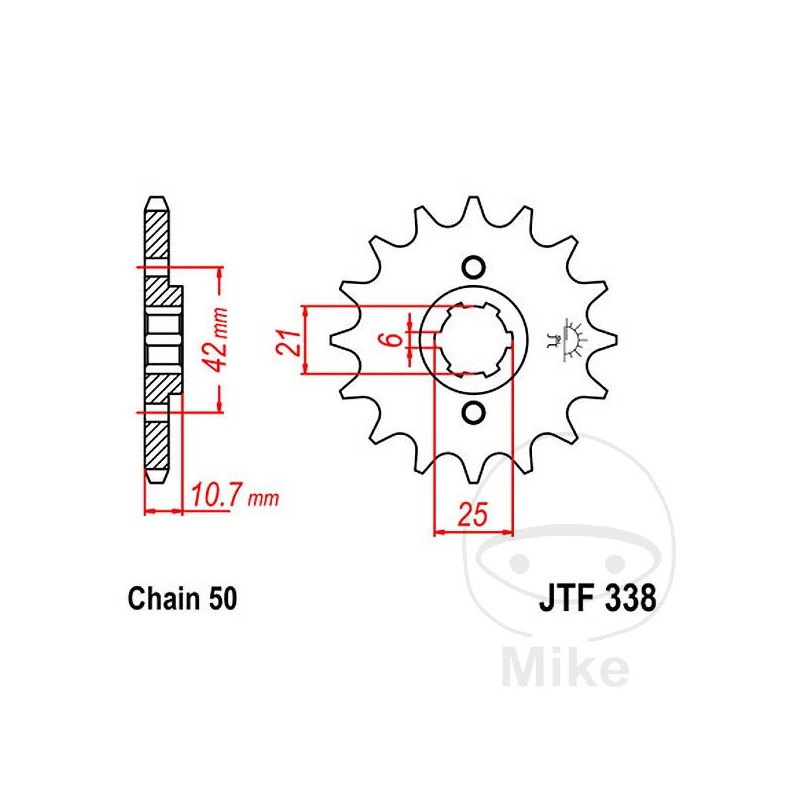

DIVISION: 530
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 10.7MM
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 650 50 CV, 37 kw 4cil. RC03 B Bastidores: RC03-3100003-RC03-3199999 1981-1982
Honda CB 650 50 CV, 37 kw 4cil. RC03 Z Bastidores: RC03-3000002-RC03-3001651 1979-1982
Honda CB 650 63 CV, 46 kw 4cil. RC03 B Bastidores: RC03-2100002-RC03-2199999 1981-1982
Honda CB 650 63 CV, 46 kw 4cil. RC03 Z Bastidores: RC03-2000037-RC03-2020833 1979-1982
Honda CB 650 C Custom 50 CV, 37 kw 4cil. RC05 A Bastidores: RC05-3000002-RC05-3002110 1980
Honda CB 650 C Custom 50 CV, 37 kw 4cil. RC05 B Bastidores: RC05-3100002-RC05-3199999 1981
Honda CB 650 C Custom 63 CV, 46 kw 4cil. RC05 A Bastidores: RC05-2007931-RC05-2020488 1980
Honda CB 650 C Custom 63 CV, 46 kw 4cil. RC05 B Bastidores: RC05-2200002-RC05-2299999 1981
Honda CB 650 SC Custom 50 CV, 37 kw 4cil. RC08 C Bastidores: RC08-3000002-RC08-3099999 1982-1983
Honda CB 650 SC Custom 63 CV, 46 kw 4cil. RC08 C Bastidores: RC08-2000023-RC08-2099999 1982-1983
