JT SPROCKETS coarse gear transmission pinion 16T P-530 6 Ø22/25MM 726.21.16

JT Sprockets Manufacturing is today the largest and most modern sprocket and pinion manufacturing facility in the world,

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 production stages and undergoes more than ten individual quality checks to successfully exit production.

JT Sprockets manufactures the right way - by turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand – this is how JT Sprockets sets new quality standards in the motorcycle industry.

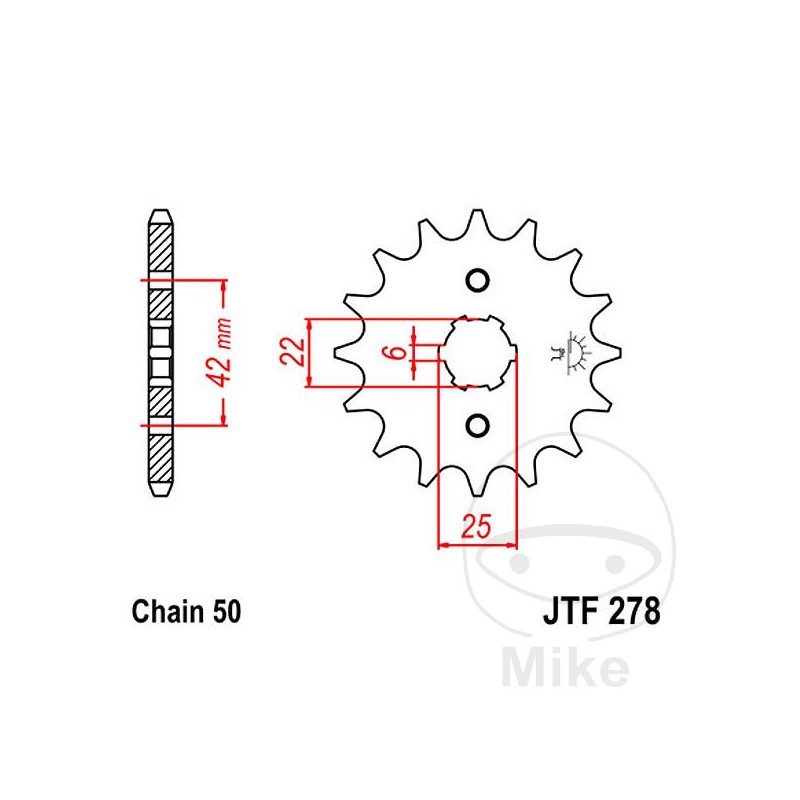

DIVISION: 530
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 22 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 6 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Honda CB 250 G 27 CV, 20 kw 2cil. CB250 5 Bastidores: CB250-6005645-CB250G-6522845 1974-1977
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 3 Bastidores: CB250-4000001-CB250-4099999 1971
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 4 Bastidores: CB250-5000001-CB250-5020345 1972
Honda CB 250 K 30 CV, 22 kw 2cil. CB250 5 Bastidores: CB250-6001805-CB250-6099999 1973
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N Bastidores: CB250N-3000008-CB250N-3004407 1978-1979
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N A Bastidores: CB250N-3100001-CB250N-3199999 1980
Honda CB 250 N Euro 17 CV, 13 kw 2cil. CB250N B Bastidores: CB250N-3200002-CB250N-3299999 1981
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N Bastidores: CB250N-2005191-CB250N-2005240 1978-1979
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N A Bastidores: CB250N-2108874-CB250N-2106923 1980
Honda CB 250 N Euro 27 CV, 20 kw 2cil. CB250N B Bastidores: CB250N-2200001-CB250N-2299999 1981
Honda CB 250 T Twin 17 CV, 13 kw 2cil. CB250T 1 Bastidores: --- 1977
Honda CB 250 T Twin 17 CV, 13 kw 2cil. CB250T 2 Bastidores: CB250T-3000001-CB250T-3001525 1977-1978
Honda CB 250 T Twin 27 CV, 20 kw 2cil. CB250T 1 Bastidores: --- 1977
Honda CB 250 T Twin 27 CV, 20 kw 2cil. CB250T 2 Bastidores: CB250T-2000036-CB250T-2003356 1977-1978
Honda CB 350 F Four 34 CV, 25 kw 4cil. CB350F Bastidores: CB350F-1034587-CB350F-1071219 1973-1975
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 2 Bastidores: CB350-2000001-CB350-2066494 1970
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 3 Bastidores: CB350-3000001-- 1971
Honda CB 350 K 36 CV, 26 kw 2cil. CB350 4 Bastidores: CB350-4000001-- 1972
Honda CB 360 G 34 CV, 25 kw 2cil. CB360 Bastidores: CB360G-1058000-CB360G-1099999 1974-1977
Honda CB 400 A Twin automática 27 CV, 20 kw 2cil. CB400A Bastidores: CB400A-2057901-CB400A-2099999 1979
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 0 Bastidores: CB400F-1000001-- 1974-1975
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 1 Bastidores: CB400F-2000001-- 1976
Honda CB 400 F Four 37 CV, 27 kw 4cil. CB400F 2 Bastidores: CB400F-2100001-- 1977
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N Bastidores: CB400N-3000006-CB400N-3010850 1978-1979
Honda CB 400 N Euro 27 CV, 20 kw 2cil. CB400N A Bastidores: CB400N-3100001-CB400N-3199999 1980
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N Bastidores: CB400N-2000001-CB400N-2099999 1978-1979
Honda CB 400 N Euro 43 CV, 32 kw 2cil. CB400N A Bastidores: CB400N-2100001-CB400N-2199999 1980
Honda CB 400 T 27 CV, 20 kw 2cil. CB400T 2 Bastidores: CB400T-3000001-CB400T-3002700 1977-1978
Honda CB 400 T 43 CV, 32 kw 2cil. CB400T 2 Bastidores: CB400T-4000037-CB400T-4008558 1977-1978
Honda CB 450 N 27 CV, 20 kw 2cil. PC14 F Bastidores: 9C2 PC14-1000001-9C2 PC14-1099999 1985
Honda CB 450 N 44 CV, 32 kw 2cil. PC14 F Bastidores: 9C2 PC14-2000001-9C2 PC14-2099999 1985
Honda CB 450 T Hawk 45 CV, 33 kw 2cil. PC050 C Bastidores: PC050-7000001-- 1982
Honda CB 500 T Twin 42 CV, 31 kw 2cil. CB500T Bastidores: CB500T-1008642-CB500T-1040311 1974-1976
Honda CJ 250 T 27 CV, 20 kw 2cil. CJ250T Bastidores: CJ250T-2000033-CJ250T-2016116 1976-1979
Honda CJ 360 T 34 CV, 25 kw 2cil. CJ360T Bastidores: CJ360T-2013070-CJ360T-2015444 1976-1979
Honda CL 350 K Scrambler 33 CV, 24,3 kw 2cil. CL350 2 Bastidores: CL350-2000001-CL350-2030816 1970
Honda CL 350 K Scrambler 33 CV, 24,3 kw 2cil. CL350 3 Bastidores: CL350-3000001-CL350-3051361 1971
Honda CL 350 K Scrambler 33 CV, 24,3 kw 2cil. CL350 4 Bastidores: CL350-4000001-CL350-4059112 1972-1973
Honda CM 400 T 27 CV, 20 kw 2cil. NC01 A Bastidores: NC01-3000002-NC01-3003047 1980
Honda CM 400 T 43 CV, 32 kw 2cil. NC01 A Bastidores: NC01-2100001-- 1980
Honda CM 450 A Twin automática 37 CV, 27 kw 2cil. PC052 C Bastidores: PC052-CM000001-- 1982
Honda CM 450 C 37 CV, 27 kw 2cil. PC051 C Bastidores: PC051-CM000001-- 1982
