JT SPROCKETS Fine gear transmission pinion 12T P-420 Ø17/20.2MM 726.17.20

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

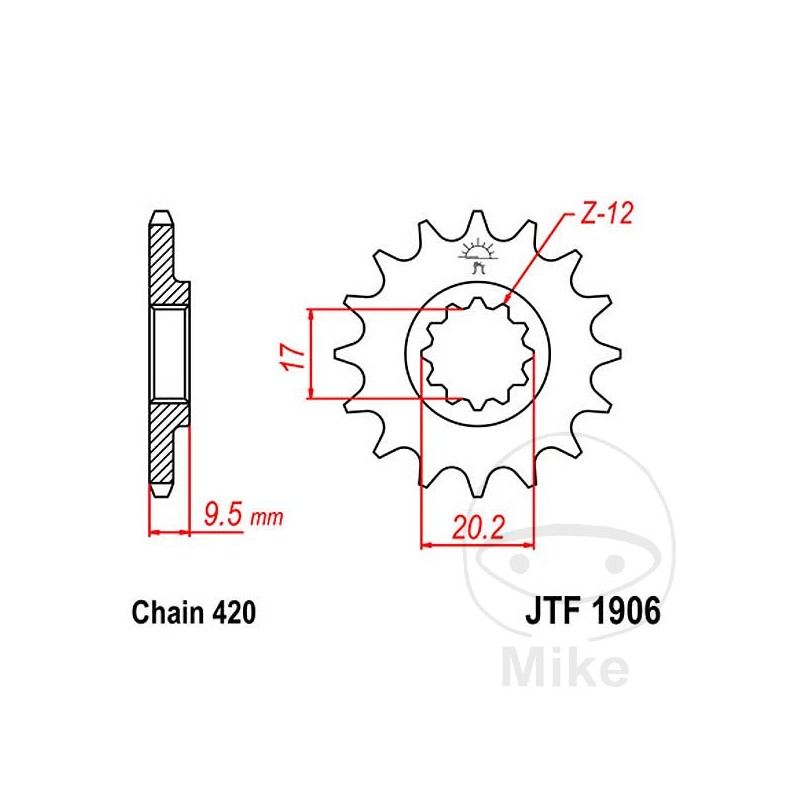

DIVISION: 420
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 17 MM
MAX INTERNAL DIAMETER: 20.2 MM
INNER GEAR (QUANTITY OF TEETH): 12
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 9.5MM
VERSION: STANDARD
QTY TEETH: 12


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 65 1cil. CR6530 Bastidores: ZKH CR6530-CV000001-- 2012-2014
Husqvarna TC 65 1cil. - Bastidores: --- 2017-2020
KTM SX 60 1cil. - Bastidores: --- 1998-2000
KTM SX 65 1cil. - Bastidores: --- 1998-2000
KTM SX 65 1cil. - Bastidores: --- 2013-2022
KTM SX 65 15,5 CV, 11,4 kw 1cil. - Bastidores: --- 2002
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2001-2001
KTM SX 65 16 CV, 12 kw 1cil. - Bastidores: --- 2006-2012
KTM SX 65 17 CV, 12,5 kw 1cil. - Bastidores: --- 2003-2005
