JT SPROCKETS Fine gear transmission pinion 16T P-520 Ø21.3/23MM 726.16.62

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

restriction

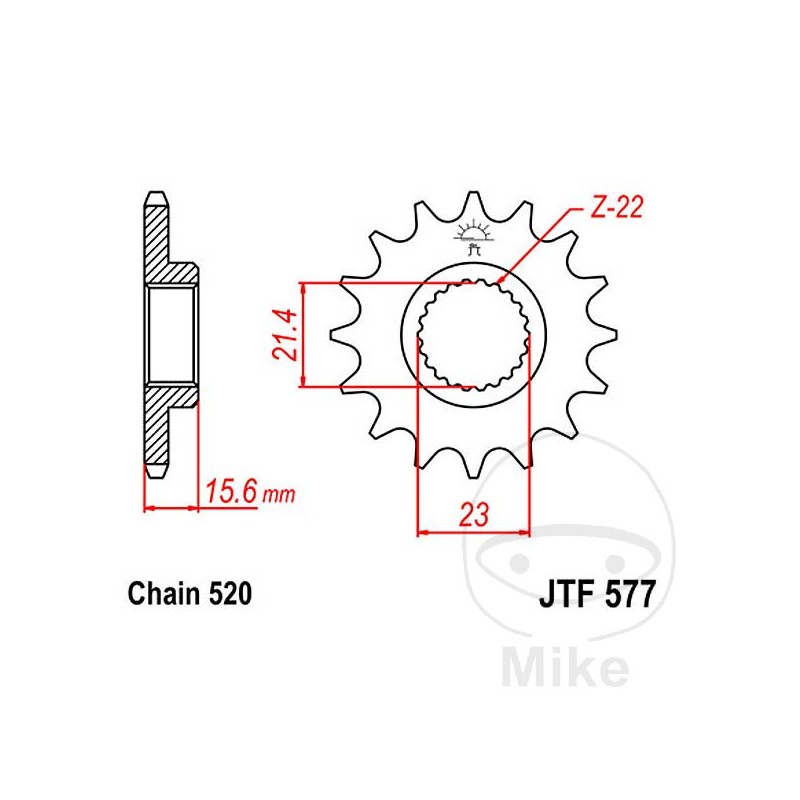

Width over the entire sprocket 15.6 mm
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.4 MM
MAX INTERNAL DIAMETER: 23 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 15.6MM
VERSION: STANDARD
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
MZ/MUZ Baghira 660 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 1998-2008
MZ/MUZ Baghira 660 HR bajada 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 1998-2008
MZ/MUZ Baghira 660 SM Black Panther 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2000-2008
MZ/MUZ Baghira 660 SM HR Black Panther bajada 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2000-2008
MZ/MUZ Baghira 660 SM HR Street Moto bajada 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2000-2008
MZ/MUZ Baghira 660 SM Street Moto 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2000-2008
MZ/MUZ Mastiff 660 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 1998-2005
MZ/MUZ Skorpion 660 Race Replica 50 CV, 37 kw 1cil. MUZ660 Bastidores: --- 1996-1999
MZ/MUZ Skorpion 660 Sport 34 CV, 25 kw 1cil. MUZ660 Bastidores: --- 1994-2002
MZ/MUZ Skorpion 660 Sport 48 CV, 35 kw 1cil. MUZ660 Bastidores: --- 1994-2002
MZ/MUZ Skorpion 660 Tour 34 CV, 25 kw 1cil. MUZ660 Bastidores: --- 1994-2002
MZ/MUZ Skorpion 660 Tour 48 CV, 35 kw 1cil. MUZ660 Bastidores: --- 1994-2002
MZ/MUZ Skorpion 660 Traveller 34 CV, 25 kw 1cil. MUZ660 Bastidores: --- 1995-2002
MZ/MUZ Skorpion 660 Traveller 48 CV, 35 kw 1cil. MUZ660 Bastidores: --- 1995-2002
MZ/MUZ SM 660 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2006-2008
MZ/MUZ SM 660 S 50/34 CV, 37/25 kw 1cil. MUZ660E Bastidores: --- 2006-2008
Yamaha SRX 600 1cil. 2TM 2TM Bastidores: 2TM henceforth00101-2TM henceforth01000 1987
Yamaha SZR 660 34 CV, 25 kw 1cil. 4SU 4SU1 Bastidores: 4SU henceforth00106-- 1995-1996
Yamaha SZR 660 34 CV, 25 kw 1cil. 4SU 4SU3 Bastidores: 4SU henceforth21692-4SU henceforth41560 1997-1998
Yamaha SZR 660 48 CV, 35 kw 1cil. 4SU 4SU1 Bastidores: 4SU henceforth00106-- 1995-1996
Yamaha SZR 660 48 CV, 35 kw 1cil. 4SU 4SU3 Bastidores: 4SU henceforth21692-4SU henceforth41560 1997-1998
Yamaha TT 600 E 41 CV, 30 kw 1cil. 4GV 4GV2 Bastidores: 4GV henceforth10101-- 1994-1995
Yamaha TT 600 E 41 CV, 30 kw 1cil. 4GV 4GV4 Bastidores: 4GV henceforth11319-- 1996-1997
Yamaha TT 600 E 41 CV, 30 kw 1cil. 4LW 4LW3 Bastidores: 4LW henceforth25151-4LW henceforth28982 1996-1997
Yamaha TT 600 E 41 CV, 30 kw 1cil. 4LW 4LW4 Bastidores: 4LW henceforth27508-- 1998
Yamaha TT 600 R 43 CV, 31,5 kw 1cil. DJ011 5CH1 Bastidores: DJ011 henceforth00117-- 1997-1998
Yamaha TT 600 R 43 CV, 31,5 kw 1cil. DJ011 5CH2 Bastidores: DJ011 henceforth05061-- 1999
Yamaha TT 600 R 43 CV, 31,5 kw 1cil. DJ011 5CH3 Bastidores: DJ011 henceforth10508-DJ011 henceforth11551 2000
Yamaha TT 600 R 43 CV, 31,5 kw 1cil. DJ011 5CH4 Bastidores: DJ011 henceforth15004-- 2001-2003
Yamaha TT 600 RE 42 CV, 31 kw 1cil. DJ012 5CH5 Bastidores: DJ012 henceforth00388-- 2004
Yamaha TT 600 S 41 CV, 30 kw 1cil. 4GV 4GV1 Bastidores: 4GV henceforth00101-- 1993-1994
Yamaha TT 600 S 41 CV, 30 kw 1cil. 4GV 4GV3 Bastidores: 4GV henceforth03409-4GV henceforth03409 1995-1997
Yamaha TT 600 S 41 CV, 30 kw 1cil. 4LW 4LW1 Bastidores: 4LW-700101-- 1993-1994
Yamaha TT 600 S 41 CV, 30 kw 1cil. 4LW 4LW2 Bastidores: 4LW-700657-- 1995-1997
Yamaha XT 600 EH 40 CV, 29 kw 1cil. 3TB 4PT3 Bastidores: 3TB-203101-- 1996
Yamaha XT 600 EH 40 CV, 29 kw 1cil. 3TB 4PT5 Bastidores: 3TB-229615-- 1997
Yamaha XT 600 EH 40 CV, 29 kw 1cil. 3TB 4PT7 Bastidores: 3TB-238135-- 1998
Yamaha XT 600 EH 40 CV, 29 kw 1cil. DJ021 4PT9 Bastidores: DJ021 henceforth00301-- 1999
Yamaha XT 600 EH 40 CV, 29 kw 1cil. DJ021 4PTA Bastidores: DJ021 henceforth06337-- 2000-2001
Yamaha XT 600 EH 40 CV, 29 kw 1cil. DJ021 4PTB Bastidores: DJ021 henceforth22489-- 2002-2003
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB1 Bastidores: 3TB henceforth00101-3TB henceforth20000 1990
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB3 Bastidores: 3TB henceforth37101-3TB henceforth56000 1991
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB5 Bastidores: 3TB henceforth58101-3TB henceforth90000 1992
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB7 Bastidores: 3TB-109101-- 1993
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 3TB9 Bastidores: 3TB-161101-3TB-177999 1994
Yamaha XT 600 EH 45 CV, 33 kw 1cil. 3TB 4PT1 Bastidores: 3TB-181101-3TB-200999 1995
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW1 Bastidores: 3UW henceforth00101-3UW henceforth04000 1990
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW2 Bastidores: 3UW henceforth06101-3UW henceforth09000 1991
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW3 Bastidores: 3UW henceforth09101-3UW henceforth12000 1992
Yamaha XT 600 EN 27 CV, 20 kw 1cil. 3UW 3UW4 Bastidores: 3UW henceforth14101-- 1993
Yamaha XT 600 EN 34 CV, 25 kw 1cil. 3UW 4ME1 Bastidores: 3UW henceforth26101-3UW henceforth27999 1994
Yamaha XT 600 EN 34 CV, 25 kw 1cil. 3UW 4SK1 Bastidores: 3UW henceforth30101-3UW henceforth31999 1995
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 2KF Bastidores: 2KF henceforth00101-2KF henceforth35000 1987-1988
Yamaha XT 600 H 45 CV, 33 kw 1cil. 2KF 3PW1 Bastidores: 2KF henceforth19101-- 1989-1990
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP1 Bastidores: 3TB henceforth23101-3TB henceforth35000 1991
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP3 Bastidores: 3TB henceforth95101-3TB-109000 1992
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP5 Bastidores: 3TB-141101-- 1993
Yamaha XT 600 KH 45 CV, 33 kw 1cil. 3TB 3YP6 Bastidores: 3TB-154101-3TB-160999 1994-1995
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE1 Bastidores: 3UW henceforth04101-3UW henceforth06000 1991
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE2 Bastidores: 3UW henceforth12101-3UW henceforth14000 1992
Yamaha XT 600 KN 27 CV, 20 kw 1cil. 3UW 4AE3 Bastidores: 3UW henceforth18101-- 1993
Yamaha XT 600 KN 34 CV, 25 kw 1cil. 3UW 4MF1 Bastidores: 3UW henceforth28101-3UW029999 1994-1995
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 2NF Bastidores: 2NF henceforth00101-2NF henceforth05000 1987-1988
Yamaha XT 600 N 27 CV, 20 kw 1cil. 2NF 3PX1 Bastidores: 2NF henceforth02101-- 1989-1990
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ1 Bastidores: 3AJ henceforth00101-3AJ henceforth31000 1988
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ4 Bastidores: 3AJ henceforth34101-3AJ henceforth54000 1989
Yamaha XT 600 Z Tenere 46 CV, 34 kw 1cil. 3AJ 3AJ6 Bastidores: 3AJ henceforth56101-3AJ henceforth66000 1990-1991
Yamaha XTZ 660 H Tenere 46 CV, 34 kw 1cil. 3YF 4MY3 Bastidores: 3YF-106101-- 1996-1998
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF1 Bastidores: 3YF henceforth00101-3YF henceforth29000 1991
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF4 Bastidores: 3YF henceforth32101-3YF henceforth57000 1992
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 3YF7 Bastidores: 3YF henceforth64101-- 1993
Yamaha XTZ 660 H Tenere 48 CV, 35 kw 1cil. 3YF 4MY1 Bastidores: 3YF henceforth88101-3YF-104099 1994-1995
Yamaha XTZ 660 N Tenere 27 CV, 20 kw 1cil. 3YF 3YF3 Bastidores: 3YF henceforth59101-3YF henceforth62000 1992
Yamaha XTZ 660 N Tenere 27 CV, 20 kw 1cil. 3YF 3YF6 Bastidores: 3YF henceforth62101-- 1993
Yamaha XTZ 660 N Tenere 34 CV, 25 kw 1cil. 4MD 4NW1 Bastidores: 4MD henceforth01101-- 1994-1995
