JT SPROCKETS coarse gear transmission pinion 14T P-520 5 Ø21/25MM 726.13.57

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After subsequent heat treatment, each item is checked by hand, thus setting new quality standards in the motorcycle industry.

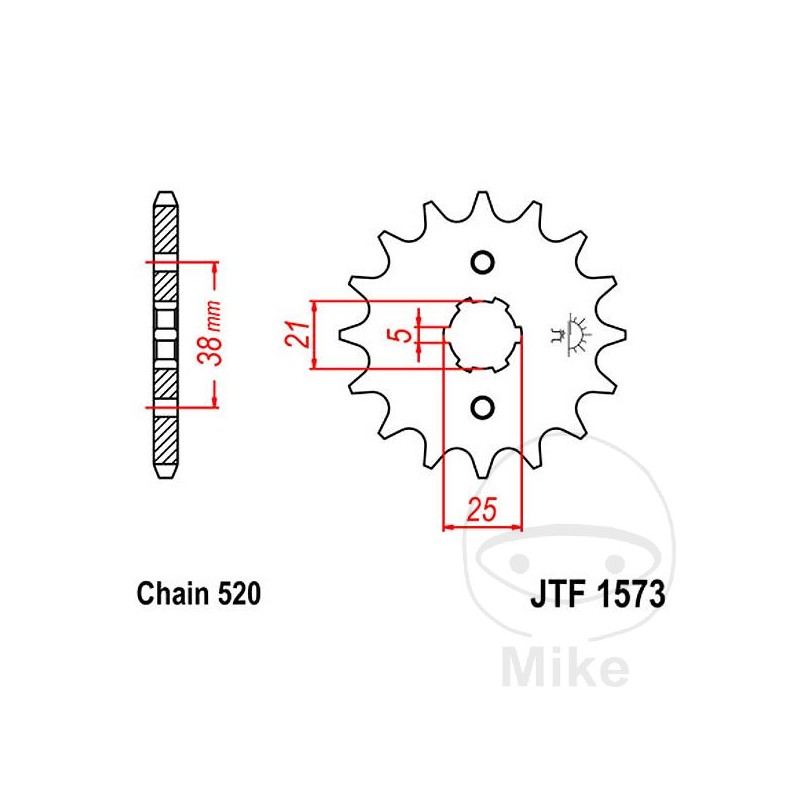

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 38 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Sachs Roadster 125 V2 11/14 CV, 8/10 kw 2cil. 680 680 Bastidores: --- 1998-2003
Yamaha XV 125 H Virago 10,3 CV, 7,6 kw 2cil. 5AJ 5AJ2 Bastidores: 5AJ henceforth05507-- 1997
Yamaha XV 125 H Virago 11,4 CV, 8,4 kw 2cil. 5AJ 5AJ5 Bastidores: 5AJ henceforth71461-- 1998
Yamaha XV 125 H Virago 11,4 CV, 8,4 kw 2cil. 5AJ 5AJ8 Bastidores: 5AJ-115876-- 1999-2000
Yamaha XV 125 N Virago 80 Km/h 10,3 CV, 7,6 kw 2cil. 5AJ 5AJ4 Bastidores: 5AJ henceforth15168-- 1997
Yamaha XV 125 N Virago 80 Km/h 11,4 CV, 8,4 kw 2cil. 5AJ 5AJ6 Bastidores: 5AJ henceforth72361-- 1998
Yamaha XV 125 N Virago 80 Km/h 11,4 CV, 8,4 kw 2cil. 5AJ 5AJ9 Bastidores: 5AJ-119702-- 1999-2000
Yamaha XV 125 SH Virago 11,4 CV, 8,4 kw 2cil. 5AJ 5AJB Bastidores: 5AJ-115276-- 1999
Yamaha XV 125 SH Virago 11,4 CV, 8,4 kw 2cil. 5AJ 5AJF Bastidores: 5AJ-131732-- 2000-2002
Yamaha XV 125 SN Virago 80 Km/h 11,4 CV, 8,4 kw 2cil. 5AJ 5AJC Bastidores: 5AJ-115676-- 1999
Yamaha XV 125 SN Virago 80 Km/h 11,4 CV, 8,4 kw 2cil. 5AJ 5AJG Bastidores: 5AJ-132345-- 2000-2002
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P1 Bastidores: AH19W henceforth00101-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P2 Bastidores: AH19W henceforth00430-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P3 Bastidores: AH19W henceforth00663-- 2007
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P4 Bastidores: AH19W henceforth01733-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P5 Bastidores: AH19W henceforth02573-- 2008
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P6 Bastidores: AH19W henceforth03769-- 2009
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P7 Bastidores: AH19W henceforth05509-- 2010
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P8 Bastidores: AH19W henceforth05704-- 2011
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10P9 Bastidores: --- 2012
Yamaha YFM 350 R 27 CV, 20 kw 1cil. AH19W 10PA Bastidores: AH19W henceforth06286-- 2013
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT3 Bastidores: AH12W henceforth00101-- 2004
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT7 Bastidores: AH12W henceforth02942-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YT9 Bastidores: AH12W henceforth05569-- 2005
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTC Bastidores: AH12W henceforth10783-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH12W 5YTF Bastidores: AH12W henceforth12987-- 2006
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS3 Bastidores: AH18W henceforth04901-- 2010
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS6 Bastidores: AH18W henceforth05783-- 2011
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 1BS8 Bastidores: AH18W henceforth06933-- 2012
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTJ Bastidores: AH18W henceforth00003-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTM Bastidores: AH18W henceforth00244-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTR Bastidores: AH18W henceforth01106-- 2007
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTU Bastidores: AH18W henceforth01841-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTV Bastidores: AH18W henceforth02659-- 2008
Yamaha YFM 350 R Raptor 27 CV, 20 kw 1cil. AH18W 5YTY Bastidores: AH18W henceforth03430-- 2009
Yamaha YFM 350 X Warrior 20 CV, 15 kw 1cil. 3GD 3GDW Bastidores: 3GD-255467-- 2000
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF2 Bastidores: 3GD-291441-- 2001
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NF6 Bastidores: 3GD-319138-- 2002
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFA Bastidores: 3GD-337826-- 2003
Yamaha YFM 350 X Warrior 27 CV, 20 kw 1cil. 3GD 5NFD Bastidores: 3GD-354198-- 2004
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 24Y 24Y Bastidores: 24Y-100101-24Y-200000 1983
Yamaha YZ 250 2T 51 CV, 37 kw 1cil. 43N 43N Bastidores: 43N henceforth00101-43N henceforth08000 1984
Yamaha YZ 250 2T 52 CV, 38 kw 1cil. 4JX 4JX1 Bastidores: 4JX henceforth00101-4JX henceforth08999 1994
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4MX 4MX1 Bastidores: 4MX henceforth00101-4MX henceforth06099 1995
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4SR 4SR1 Bastidores: 4SR henceforth00101-- 1996
Yamaha YZ 250 2T 53 CV, 39 kw 1cil. 4XL 4XL1 Bastidores: 4XL henceforth01138-- 1997
