JT SPROCKETS coarse gear transmission pinion 14T P-428 4 Ø14/17MM 726.12.20

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

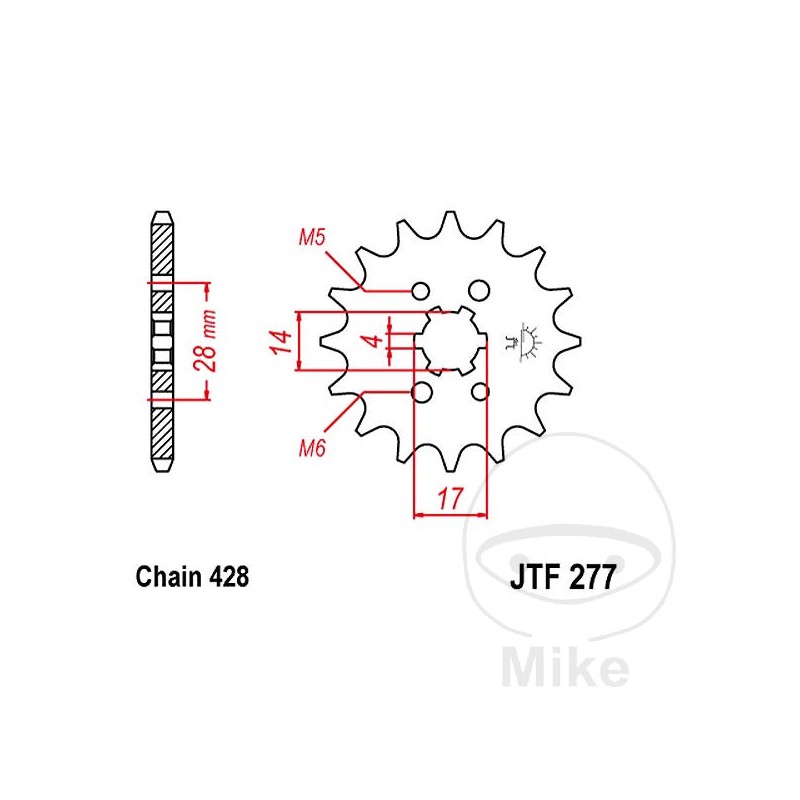

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 14 MM
MAX INTERNAL DIAMETER: 17 MM
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 28 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Derbi GPR 125 4T Racing 15 CV, 11 kw 1cil. RG1A1A Bastidores: --- 2009-2016
Derbi Mulhacen 125 Cafe Gussrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: VTHMS1A1A7N001791-- 2008-2009
Derbi Mulhacen 125 Cafe Gussrad 15 CV, 11 kw 1cil. MS1A2A Bastidores: --- 2010-2011
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: --VTHMS1A1A7N001790 2007
Derbi Mulhacen 125 Speichenrad 15 CV, 11 kw 1cil. MS1A1A Bastidores: VTHMS1A1A7N001791-- 2007-2010
Derbi Senda 125 R 4V DRD 15 CV, 11 kw 1cil. DR1A1A Bastidores: VTHDR1A1A00000001-- 2010-2015
Derbi Senda 125 SM 4V DRD 15 CV, 11 kw 1cil. DR2A1A Bastidores: VTHDR2A1A00000001-- 2010-2013
Derbi Senda 125 SM 4V DRD 15 CV, 11 kw 1cil. PKA Bastidores: --- 2013-2016
Derbi Senda 125 Terra 15 CV, 11 kw 1cil. TS1A1A Bastidores: VTHTS1A1A8H384751-- 2008-2014
Derbi Senda 125 Terra Adventure 15 CV, 11 kw 1cil. TS1A2B Bastidores: VTHTS1A2B8H407288-- 2008-2016
Honda CRF 125 F 17/14 pulgadas 9 CV, 6,6 kw 1cil. JE03A E Bastidores: LAL JE03A-E3000001-LAL JE03A-E3999999 2014-2016
Honda CRF 125 F 17/14 pulgadas 9 CV, 6,6 kw 1cil. JE03A H Bastidores: LAL JE03A-H3100001-LAL JE03A-H3199999 2017-2018
Honda CRF 125 F 17/14 pulgadas 9 CV, 6,6 kw 1cil. JE03A K Bastidores: --- 2019-2021
Honda CRF 125 F 17/14 Zoll 1cil. JE03A N Bastidores: LAL JE03A-N3300001-- 2022
Honda TRX 90 X Sportrax 1cil. TE18A B Bastidores: JH2 TE18A-BK000001-JH2 TE18A-BK099999 2011
Honda TRX 90 X Sportrax 1cil. TE18A C Bastidores: JH2 TE18A-CK100001-JH2 TE18A-CK199999 2012
Honda TRX 90 X Sportrax 1cil. TE18A D Bastidores: JH2 TE18A-DK200001-JH2 TE18A-DK299999 2013
Honda TRX 90 X Sportrax 1cil. TE18A E Bastidores: JH2 TE18A-EK300001-- 2014-2016
Honda TRX 90 X Sportrax 1cil. TE18A H Bastidores: JH2 TE18A-HK400001-JH2 TE18A-HK499999 2017-2020
