JT SPROCKETS coarse gear transmission pinion 15T P-520 5 Ø21/25MM 726.11.00

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

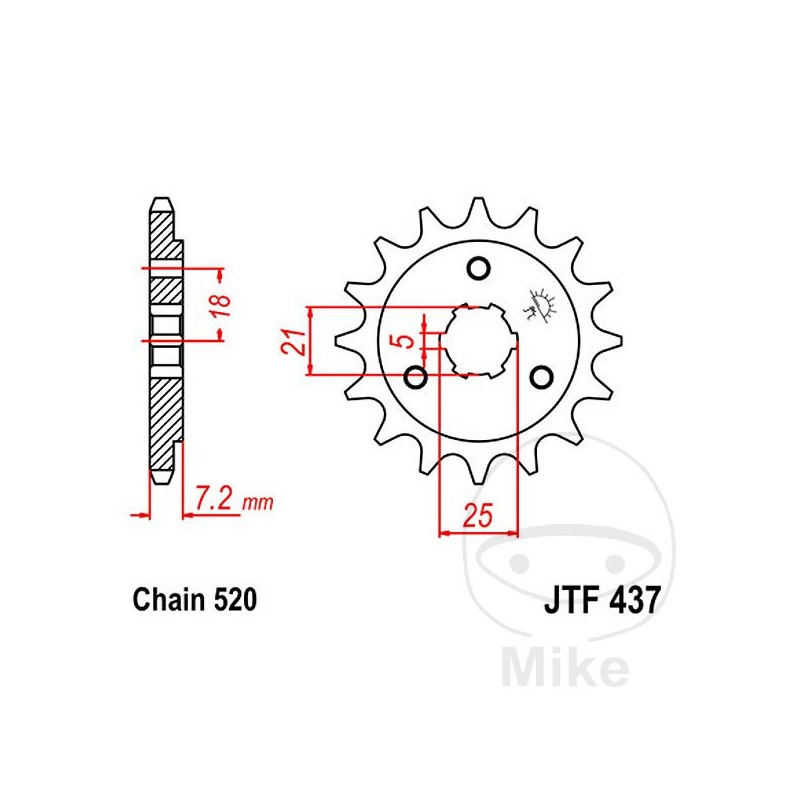

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: 3
HOLES DISTANCE: 18 MM
WIDTH: 7.2MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A G Bastidores: SN41A-114731-SN41A-123966 1986
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A H Bastidores: SN41A-123967-SN41A-132194 1987
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A J Bastidores: SN41A-132195-SN41A-139722 1988
Suzuki DR 600 R Dakar 45 CV, 33 kw 1cil. SN41A K Bastidores: SN41A-139723-- 1989
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A H Bastidores: SN41A-123967-SN41A-132194 1987
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A J Bastidores: SN41A-132195-SN41A-139722 1988
Suzuki DR 600 RU Dakar 27 CV, 20 kw 1cil. SN41A K Bastidores: SN41A-139723-- 1989
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD F Bastidores: SN41AD-100001-SN41AD-110318 1985
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD G Bastidores: SN41AD-110319-SN41AD-120042 1986
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD H Bastidores: SN41AD-120043-SN41AD-132184 1987
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD J Bastidores: SN41AD-132185-SN41AD-139712 1988
Suzuki DR 600 S 45 CV, 33 kw 1cil. SN41AD K Bastidores: SN41AD-139713-- 1989
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD F Bastidores: SN41AD-100001-SN41AD-110318 1985
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD G Bastidores: SN41AD-110319-SN41AD-120042 1986
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD H Bastidores: SN41AD-120043-SN41AD-132184 1987
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD J Bastidores: SN41AD-132185-SN41AD-139712 1988
Suzuki DR 600 SU 27 CV, 20 kw 1cil. SN41AD K Bastidores: SN41AD-139713-- 1989
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP41B M Bastidores: SP41B-100704-- 1991
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B N Bastidores: SP44B-100001-SP44B-101523 1992
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B P Bastidores: SP44B-101524-SP44B-103805 1993
Suzuki DR 650 R 45 CV, 33 kw 1cil. SP44B R Bastidores: SP44B-103806-- 1994-1995
Suzuki DR 650 R Dakar 45 CV, 33 kw 1cil. SP41B L Bastidores: SP41B-100001-SP41B-100703 1990-1991
Suzuki DR 650 RE 45 CV, 33 kw 1cil. SP45B R Bastidores: SP45B-100001-SP45B-101314 1994
Suzuki DR 650 RE 45 CV, 33 kw 1cil. SP45B S Bastidores: SP45B-101315-- 1995
Suzuki DR 650 REU 34 CV, 25 kw 1cil. SP45B R Bastidores: SP45B-100001-SP45B-101314 1994
Suzuki DR 650 REU 34 CV, 25 kw 1cil. SP45B S Bastidores: SP45B-101315-- 1995
Suzuki DR 650 RS 46 CV, 34 kw 1cil. SP42B L Bastidores: SP42B-100001-SP42B-101105 1990
Suzuki DR 650 RS 46 CV, 34 kw 1cil. SP42B M Bastidores: SP42B-101106-- 1991
Suzuki DR 650 RSE 45 CV, 33 kw 1cil. SP43B T Bastidores: SP43B-105569-- 1996
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B M Bastidores: SP43B-100001-SP43B-100904 1991
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B N Bastidores: SP43B-100905-SP43B-101857 1992
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B P Bastidores: SP43B-101858-SP43B-103588 1993
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B R Bastidores: SP43B-103589-SP43B-104946 1994
Suzuki DR 650 RSE 46 CV, 34 kw 1cil. SP43B S Bastidores: SP43B-104947-SP43B-105568 1995
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B M Bastidores: SP43B-100001-SP43B-100904 1991
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B N Bastidores: SP43B-100905-SP43B-101857 1992
Suzuki DR 650 RSEU 27 CV, 20 kw 1cil. SP43B P Bastidores: SP43B-101858-SP43B-103588 1993
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B R Bastidores: SP43B-103589-SP43B-104946 1994
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B S Bastidores: SP43B-104947-SP43B-105568 1995
Suzuki DR 650 RSEU 34 CV, 25 kw 1cil. SP43B T Bastidores: SP43B-105569-- 1996
Suzuki DR 650 RSU 27 CV, 20 kw 1cil. SP42B L Bastidores: SP42B-100001-SP42B-101105 1990
Suzuki DR 650 RSU 27 CV, 20 kw 1cil. SP42B M Bastidores: SP42B-101106-- 1991
Suzuki DR 650 RU 27 CV, 20 kw 1cil. SP41B M Bastidores: SP41B-100704-- 1991
Suzuki DR 650 RU 27 CV, 20 kw 1cil. SP44B N Bastidores: SP44B-100001-SP44B-101523 1992
Suzuki DR 650 RU 27 CV, 20 kw 1cil. SP44B P Bastidores: SP44B-101524-SP44B-103805 1993
Suzuki DR 650 RU 34 CV, 25 kw 1cil. SP44B R Bastidores: SP44B-103806-- 1994-1995
Suzuki DR 650 RU Dakar 27 CV, 20 kw 1cil. SP41B L Bastidores: SP41B-100001-SP41B-100703 1990
