JT SPROCKETS Fine gear transmission pinion 13T P-520 Ø22.7/25MM 726.10.50

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages, going through more than ten individual quality controls to successfully leave the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

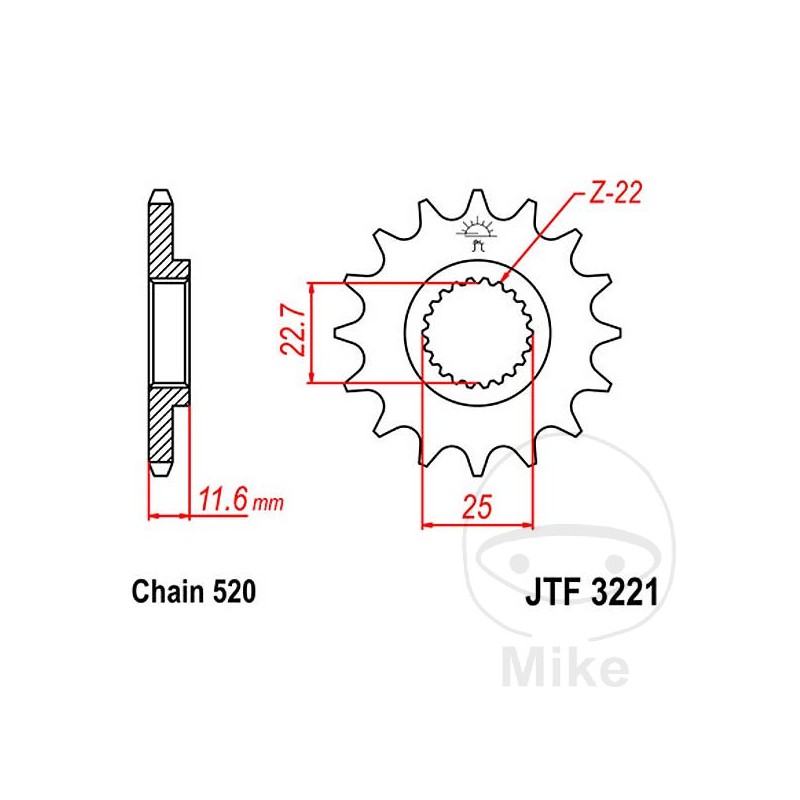

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22.7 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 11.6MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2000-2008
Polaris Scrambler 500 4WD 1cil. - Bastidores: --- 2010-2012
Polaris Scrambler 500 4WD 28,5 CV, 21 kw 1cil. - Bastidores: --- 2009
Polaris Trail Blazer 330 2WD 19 CV, 14 kw 1cil. - Bastidores: --- 2008-2013
Polaris Trail Boss 330 2WD 20 CV, 14,7 kw 1cil. - Bastidores: --- 2003-2013
Polaris Trail Boss 350 4WD 1cil. - Bastidores: --- 1990-1992
