JT SPROCKETS coarse gear transmission pinion 13T P520 6 Ø16/20MM 726.10.13

JT Sprockets Manufacturing is today the largest and most modern production facility for sprockets and pinions worldwide,

equipped, among others, with the latest generation of CNC manufacturing machines.

JT Sprockets produces the entire range of sprockets and sprockets for the original equipment and aftermarket.

Each sprocket and sprocket goes through 25 stages of production, going through more than ten individual quality tests to successfully roll off the production line.

JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the tightest tolerances and the best tooth profile.

After post heat treatment, each item is checked by hand, thus setting new JT Sprockets quality standards in the motorcycle industry.

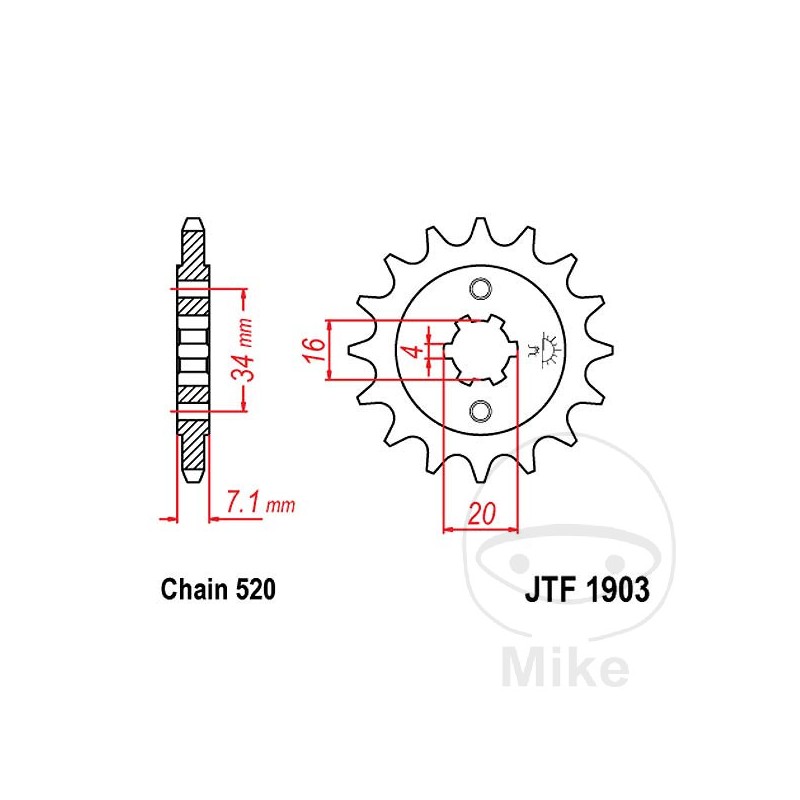

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 34 MM
WIDTH: 7.1MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna Svartpilen 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2021-2022
Husqvarna Vitpilen 701 75/48 CV, 55/35 kw 1cil. HQV701 Bastidores: --- 2020-2022
KTM Duke 125 15 CV, 11 kw 1cil. - Bastidores: --- 2011-2012
KTM Duke 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2013-2022
KTM Duke 200 26 CV, 19,1 kw 1cil. - Bastidores: --- 2012
KTM Duke 200 ABS 26 CV, 19,1 kw 1cil. - Bastidores: --- 2013-2017
KTM RC 125 ABS 15 CV, 11 kw 1cil. - Bastidores: --- 2014-2020
KTM RC 125 ABS Euro4 15 CV, 11 kw 1cil. - Bastidores: --- 2021
KTM RC 125 ABS Euro5 15 CV, 11 kw 1cil. - Bastidores: --- 2022
KTM RC 200 ABS 26 CV, 19 kw 1cil. - Bastidores: --- 2014-2017
