JT SPROCKETS Pinion transmission racing fine gear 15T P-520 Ø22.2/25MM 726.09.61

Advantages of JT Racing sprockets

- Lighter weight thanks to relief holes

- Made of high quality SCM420 Chromoly steel for maximum durability

- Ideal for the sporty motorcyclist

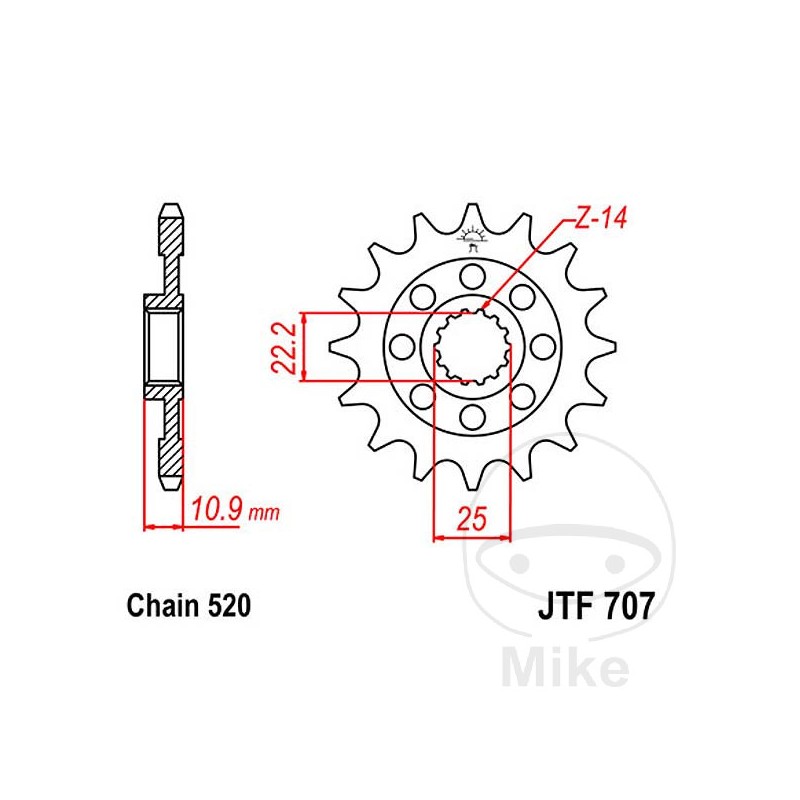

DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 22.2 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 14
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10.9MM
VERSION: REDUCED WEIGHT
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia MXV 450 52 CV, 38 kw 2cil. VTC0C Bastidores: --- 2008-2015
Aprilia RXV 450 17 CV, 12,5 kw 2cil. VPH00 Bastidores: --- 2006-2007
Aprilia RXV 450 17 CV, 12,5 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 450 24 CV, 18 kw 2cil. VPT00 Bastidores: --- 2009-2015
Aprilia RXV 450 52 CV, 38 kw 2cil. VPT00 Bastidores: --- 2009-2015
Aprilia RXV 450 52/34 CV, 38/25 kw 2cil. VPH00 Bastidores: --- 2006-2007
Aprilia RXV 450 52/34 CV, 38/25 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 550 20 CV, 15 kw 2cil. VPL00 Bastidores: --- 2006-2007
Aprilia RXV 550 20 CV, 15 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia RXV 550 20 CV, 15 kw 2cil. VPX00 Bastidores: --- 2009-2013
Aprilia RXV 550 58/27 CV, 43/20 kw 2cil. VPX00 Bastidores: --- 2009-2013
Aprilia RXV 550 58/34 CV, 43/25 kw 2cil. VPL00 Bastidores: --- 2006-2007
Aprilia RXV 550 58/34 CV, 43/25 kw 2cil. VPT00 Bastidores: --- 2008
Aprilia SXV 450 19 CV, 14 kw 2cil. VSH00 Bastidores: --- 2006-2007
Aprilia SXV 450 19 CV, 14 kw 2cil. VSR00 Bastidores: --- 2008-2010
Aprilia SXV 450 19 CV, 14 kw 2cil. VSU41 Bastidores: --- 2011-2013
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSH00 Bastidores: --- 2006-2007
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSR00 Bastidores: --- 2008-2010
Aprilia SXV 450 55/34 CV, 41/25 kw 2cil. VSU41 Bastidores: --- 2011-2013
Aprilia SXV 550 17 CV, 13 kw 2cil. VSS00/VSU51 Bastidores: --- 2011-2015
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSL00 Bastidores: --- 2006-2007
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00 Bastidores: --- 2009
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00/VSR00 Bastidores: --- 2008
Aprilia SXV 550 20 CV, 14,5 kw 2cil. VSS00/VSU51 Bastidores: --- 2010
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSL00 Bastidores: --- 2006-2007
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00 Bastidores: --- 2009
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00/VSR00 Bastidores: --- 2008
Aprilia SXV 550 69/34 CV, 51/25 kw 2cil. VSS00/VSU51 Bastidores: --- 2010-2015
SWM RS 650 R Euro3 54 CV, 40 kw 1cil. A400AAB Bastidores: --- 2016-2017
SWM RS 650 R Euro4 Facelift 54 CV, 40 kw 1cil. A100AAG Bastidores: --- 2016-2017
SWM SM 500 R 27 CV, 20 kw 1cil. A203ABG Bastidores: --- 2016-2017
SWM SM 500 R ABS 34 CV, 25 kw 1cil. B600AAK Bastidores: --- 2018-2019
SWM SM 500 R ABS 34 CV, 25 kw 1cil. B600AAL Bastidores: ZN0B600AALV000000-ZN0B600AALV999999 2020
SWM SM 500 R ABS Euro5 34 CV, 25 kw 1cil. - Bastidores: --- 2021
SWM SM 500 R ABS Euro5 34/51 CV, 25/37 kw 1cil. - Bastidores: --- 2022
SWM SM 650 R Euro3 54 CV, 40 kw 1cil. A400ABB Bastidores: --- 2016
SWM Superdual 650 Euro3 54 CV, 40 kw 1cil. A100ACG Bastidores: --- 2017
SWM Superdual 650 T ABS 19 pulgadas 54 CV, 40 kw 1cil. B500AA Bastidores: --- 2018-2020
SWM Superdual 650 X ABS 21 pulgadas 54 CV, 40 kw 1cil. B500AA Bastidores: --- 2018-2020
