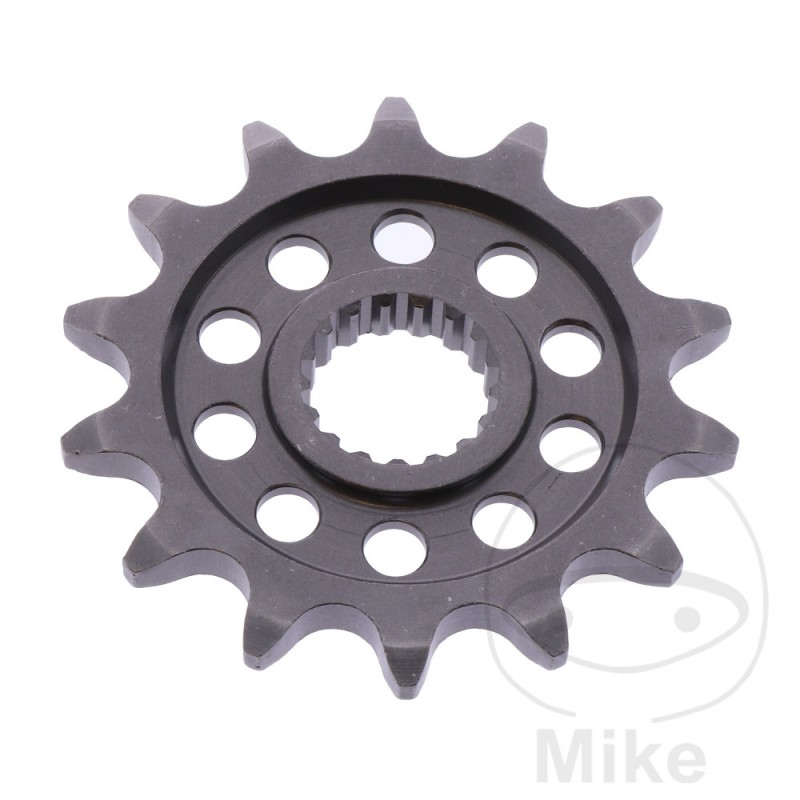

ESJOT Racing transmission sprocket 14T P-520 726.08.82

ESJOT sprockets have been specially developed for the high requirements of original equipment manufacturers and are among the best sprockets on the market worldwide.

Special steel, high-quality hardening and precise toothing ensure extraordinarily high strength and durability, optimal for severe-wear conditions in all industries

- Steel 16 MnCR 5

- Machining on automatic CNC lathes

- Case hardening of 700 HV 40 with an insertion depth of 0.4 mm

- Modern broaching machines guarantee an exact fit on the drive shaft

- Tolerance of concentricity and axial eccentricity of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
MIN. INTERNAL DIAMETER: 20.2 MM
MAX INTERNAL DIAMETER: 22.8 MM
INNER GEAR (QUANTITY OF TEETH): 17
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 9MM
VERSION: RACING
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Sherco SE 250 R 2T Factory 1cil. - Bastidores: --- 2021-2023
Sherco SE 250 R 2T Racing 1cil. - Bastidores: --- 2021-2022
Sherco SE 300 R 2T Factory 1cil. - Bastidores: --- 2021-2023
Sherco SE 300 R 2T Racing 1cil. - Bastidores: --- 2021-2022
