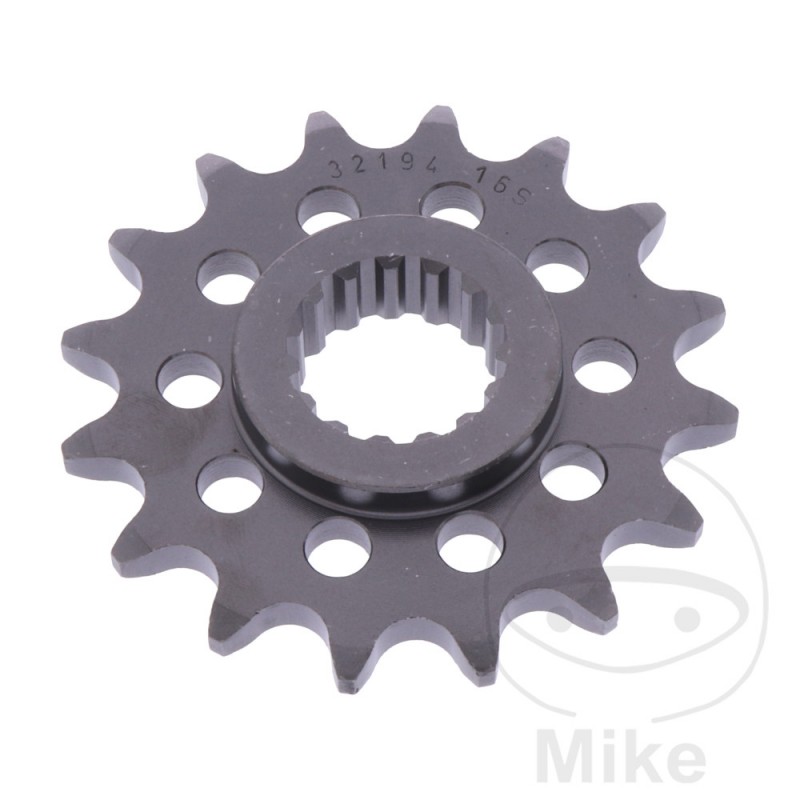

ESJOT Racing transmission sprocket 16T P-520 726.08.74

ESJOT sprockets have been specially developed for the high requirements of original equipment manufacturers and are among the best sprockets on the market worldwide.

Special steel, high-quality case-hardening and precise toothing ensure extraordinarily high strength and durability, making it ideal for high-wear conditions in all industries

- Steel 16 MnCR 5

- Machining on automatic CNC lathes

- Case hardening of 700 HV 40 with an insertion depth of 0.4 mm

- Modern broaching machines guarantee an exact fit on the drive shaft

- Tolerance of concentricity and axial eccentricity less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 25 MM
MAX INTERNAL DIAMETER: 28 MM
INNER GEAR (QUANTITY OF TEETH): 15
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 13.5MM
VERSION: RACING
QTY TEETH: 16


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Aprilia RS 660 ABS 100 CV, 74 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021
Aprilia RS 660 ABS 100 CV, 74 kw 2cil. 4KSP00 Bastidores: ZD4KSP00000000001-ZD4KSP00000999999 2022
Aprilia RS 660 ABS 48CV, 35 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021
Aprilia RS 660 ABS 48CV, 35 kw 2cil. 4KSP00 Bastidores: ZD4KSP00000000001-ZD4KSP00000999999 2022
Aprilia RS 660 ABS 95CV, 70 kw 2cil. 4KSA00 Bastidores: ZD4KSA00000000001-ZD4KSA00000999999 2020-2021
Aprilia RS 660 ABS 95CV, 70 kw 2cil. 4KSP00 Bastidores: ZD4KSP00000000001-ZD4KSP00000999999 2022
Aprilia RS 660 Limited Edition ABS 100 CV, 74 kw 2cil. KSR00 Bastidores: --- 2022-2023
Aprilia Tuareg 660 ABS 48 CV, 35 kw 2cil. 4XBA00 Bastidores: --- 2022
Aprilia Tuareg 660 ABS 80 CV, 59 kw 2cil. 4XBA00 Bastidores: --- 2022
Aprilia Tuono 660 ABS 48 CV, 35 kw 2cil. 4ZTPIAG Bastidores: ZD4ZTPIAG00000001-ZD4ZTPIAG99999999 2020-2022
Aprilia Tuono 660 ABS 95 CV, 70 kw 2cil. 4ZTPIAG Bastidores: ZD4ZTPIAG00000001-ZD4ZTPIAG99999999 2020-2022
Aprilia Tuono 660 Factory ABS 100 CV, 74 kw 2cil. KSM00 Bastidores: ZD4KSM00000000001-- 2022-2023
