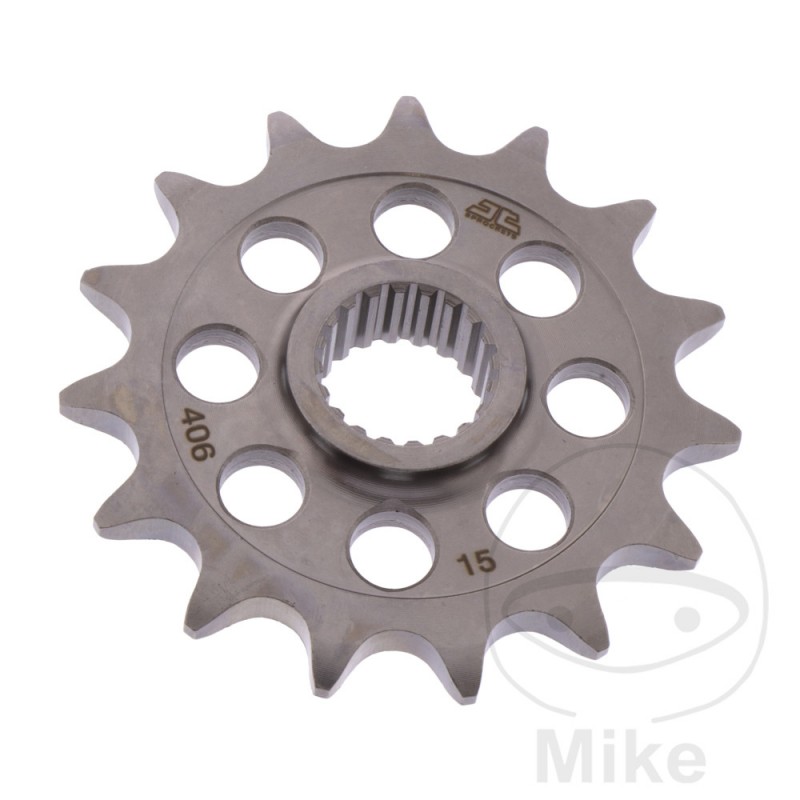

JT SPROCKETS Pinion transmission racing fine gear 15T P-520 Ø20/22MM 726.08.48

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 20 MM
MAX INTERNAL DIAMETER: 22 MM
INNER GEAR (QUANTITY OF TEETH): 20
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 14.3MM
VERSION: RACING
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
BMW G 310 GS ABS 34 CV, 25 kw 1cil. 5G31/K02 0G02 Bastidores: --- 2017-2020
BMW G 310 GS ABS 34 CV, 25 kw 1cil. K02 0G31 Bastidores: --- 2021-2022
BMW G 310 GS Edition 40 Years ABS 34 CV, 25 kw 1cil. K02 0G31 Bastidores: --- 2021
BMW G 310 R ABS 34 CV, 25 kw 1cil. 5R31/K03 0G01 Bastidores: --- 2016-2020
BMW G 310 R ABS 34 CV, 25 kw 1cil. K03 0G41 Bastidores: --- 2021-2022
