JT SPROCKETS coarse gear transmission pinion 15T P-520 5 Ø21/25MM 726.06.72

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.

Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.

JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

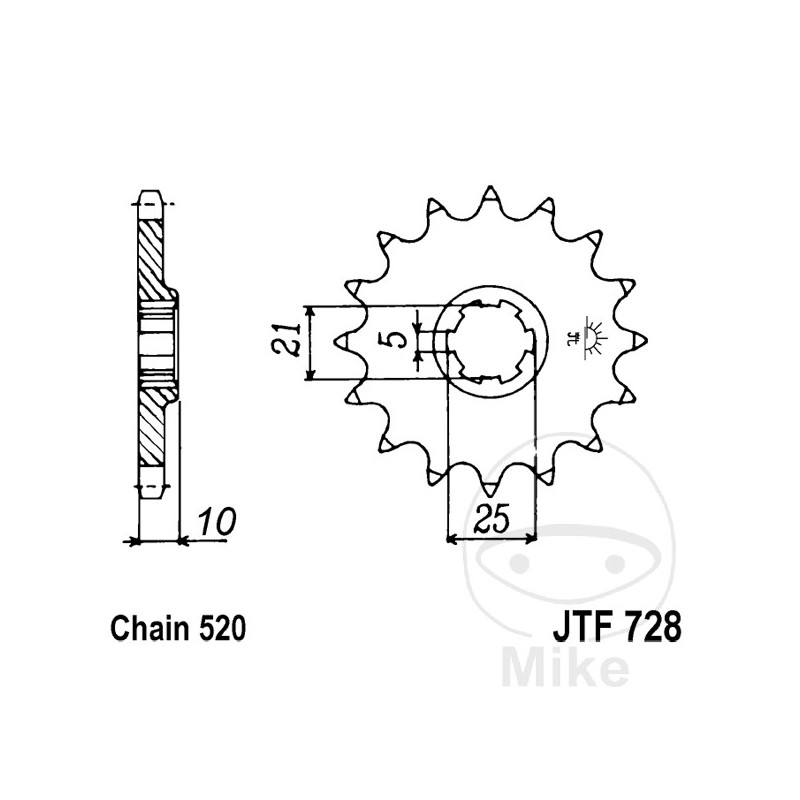

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Cagiva Canyon 500 39/34 CV, 29/25 kw 1cil. M100AA Bastidores: ZCGM100AA-VV000001-- 1998-2001
Cagiva Canyon 600 38 CV, 28 kw 1cil. 5G Bastidores: --- 1996-1997
Cagiva River 600 34 CV, 25 kw 1cil. 3G Bastidores: --- 1995-1997
Cagiva T4E 350 27 CV, 19 kw 1cil. - Bastidores: --- 1987-1989
Cagiva T4E 500 38 CV, 28 kw 1cil. 7N Bastidores: --- 1988-1991
Cagiva T4R 350 27 CV, 19 kw 1cil. - Bastidores: --- 1987-1989
Cagiva T4R 500 38 CV, 28 kw 1cil. 7N Bastidores: --- 1988-1991
Cagiva W12 350 34 CV, 25 kw 1cil. 2N Bastidores: --- 1993-1995
Cagiva W16 600 34 CV, 25 kw 1cil. 2G Bastidores: --- 1994-1997
