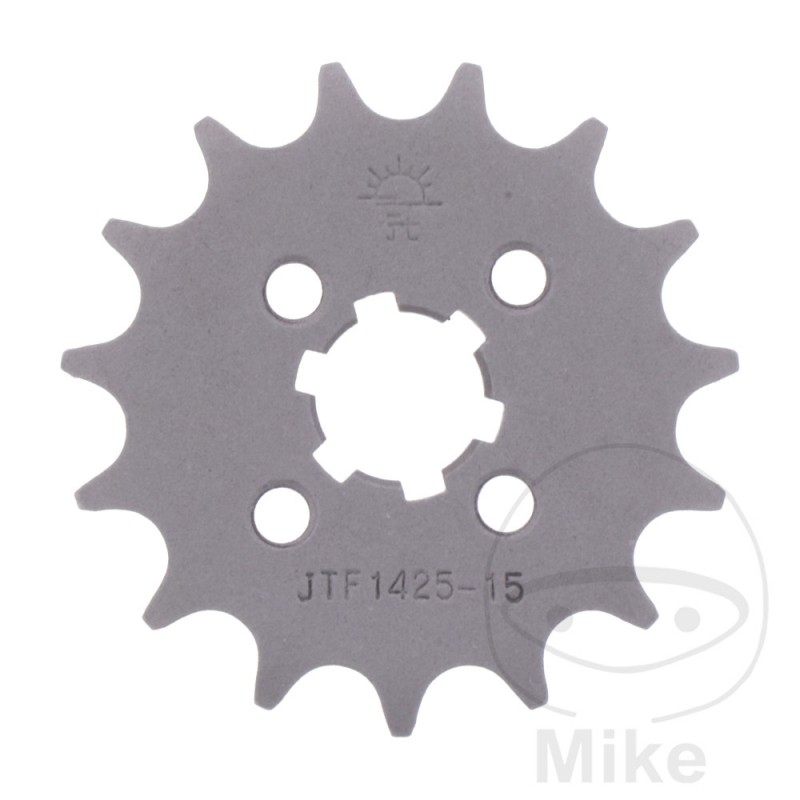

JT SPROCKETS coarse gear transmission pinion 15T P-428 4 Ø16/20MM 726.05.54

The JT Sprockets manufacturing plant is currently the largest and most modern in the world for the production of sprockets and sprockets,

equipped with state-of-the-art CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the aftermarket and original equipment.



Each sprocket goes through 25 production phases and is subjected to more than ten individual quality controls to successfully leave the production line.



JT Sprockets manufactures the right way - turning, milling and drilling! This is the only way to achieve the highest quality with the smallest tolerances and the best profile of the teeth.

After post heat treatment, each part is checked by hand - this is how JT Sprockets sets new standards of quality in the motorcycle industry.
DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 32 MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Suzuki GP 125 10 CV, 7,4 kw 1cil. GP125 C Bastidores: GP125-100001-- 1978
Suzuki GP 125 U 10 CV, 7,4 kw 1cil. GP125U C Bastidores: GP125U-100001-- 1978
Suzuki GSX-R 125 A ABS 15 CV, 11 kw 1cil. DL33AZ M0 Bastidores: DL33AZ-LJ100001-DL33AZ-LJ999999 2020
Suzuki GSX-R 125 RL ABS 15 CV, 11 kw 1cil. DL33AZ L8 Bastidores: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
Suzuki GSX-R 125 RLX ABS 15 CV, 11 kw 1cil. DL33AZ L8 Bastidores: DL33AZ-JJ100001-DL33AZ-JJ199999 2017-2018
Suzuki GSX-R 125 RLZ ABS 15 CV, 11 kw 1cil. DL33AZ M1 Bastidores: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
Suzuki GSX-R 125 XA ABS 15 CV, 11 kw 1cil. DL33AZ L9 Bastidores: DL33AZ-KJ100001-DL33AZ-KJ199999 2019
Suzuki GSX-R 125 XA ABS 15 CV, 11 kw 1cil. DL33AZ M1 Bastidores: DL33AZ-MJ100001-DL33AZ-MJ999999 2021
Suzuki GSX-S 125 ML ABS 15 CV, 11 kw 1cil. DL32AZ L8 Bastidores: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
Suzuki GSX-S 125 MLX ABS 15 CV, 11 kw 1cil. DL32AZ L8 Bastidores: DL32AZ-JJ100001-DL32AZ-JJ199999 2017-2018
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ L9 Bastidores: DL32AZ-KJ100001-DL32AZ-KJ999999 2019
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ M0 Bastidores: DL32AZ-LJ100001-DL32AZ-LJ999999 2020
Suzuki GSX-S 125 XA ABS 15 CV, 11 kw 1cil. DL32AZ M1 Bastidores: DL33AZMJ-100001-DL33AZMJ-999999 2021
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 A Bastidores: GT125-44163-GT125-71025 1976
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 B Bastidores: GT125-71026-GT125-78297 1977
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 C Bastidores: GT125-78298-GT125-84746 1978
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 L Bastidores: 10351-25742 1974
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 M Bastidores: 25743-44162 1975
Suzuki GT 125 14 CV, 10 kw 2cil. GT125 N Bastidores: GT125-84747-- 1979
Suzuki GT 125 E 14 CV, 10 kw 2cil. GT125 C Bastidores: GT125-500001-GT125-503486 1978
Suzuki GT 125 E 14 CV, 10 kw 2cil. GT125 N Bastidores: GT125-503487-- 1979
Suzuki RG 125 U Gamma 25 CV, 18 kw 1cil. NF12B J Bastidores: NF12B-107384-- 1988
Suzuki RG 125 UC Gamma 25 CV, 18 kw 1cil. NE12B G Bastidores: NE12B-100001-- 1986
Suzuki RG 125 UC Gamma 25 CV, 18 kw 1cil. NF12B H Bastidores: NF12B-101779-- 1987
Suzuki RG 80 C Gamma 9,9 CV, 7,3 kw 1cil. NC11A F Bastidores: NC11A-100001-NC11A-102095 1985-1986
Suzuki RG 80 C Gamma 9,9 CV, 7,3 kw 1cil. NC11A H Bastidores: NC11A-102096-NC11A-102670 1987
Suzuki RG 80 Gamma 9,5 CV, 7 kw 1cil. NC11A J Bastidores: NC11A-102671-NC11A-105325 1988-1990
Suzuki RG 80 Gamma 9,5 CV, 7 kw 1cil. NC11A M Bastidores: NC11A-105326-- 1991-1995
Suzuki RM 80 26 CV, 19 kw 1cil. RD15C K1 Bastidores: RD15C-11100001-- 2001
Suzuki RM 80 27 CV, 20 kw 1cil. RD15C Y Bastidores: RD15C-Y1100001-- 2000
Suzuki RM 80 H 21 pulgadas 22 CV, 16 kw 1cil. RC11B D Bastidores: RC11B-100001-- 1983
Suzuki RM 80 H 21 pulgadas 22 CV, 16 kw 1cil. RC11B E Bastidores: RC11B-102363-- 1984
Suzuki RM 80 H 21 pulgadas 22 CV, 16 kw 1cil. RC11B F Bastidores: RC11B-103221-- 1985
Suzuki RM 80 X 1cil. RC12A G Bastidores: RC12A-100001-RC12A-101483 1986
Suzuki RM 80 X 1cil. RC12A H Bastidores: RC12A-101484-RC12A-102345 1987
Suzuki RM 80 X 1cil. RM80X X Bastidores: RM80X-104055-RM80X-107813 1981
Suzuki RM 80 X 1cil. RM80X Z Bastidores: RM80X-107814-- 1982
Suzuki RM 80 X 15,5 CV, 11,4 kw 1cil. RM80X T Bastidores: RM80X-100001-RM80X-104054 1980
Suzuki RM 80 X 26 CV, 19 kw 1cil. RC12A J Bastidores: RC12A-102346-RC12A-102890 1988
Suzuki RM 80 X 26 CV, 19 kw 1cil. RC12A K Bastidores: RC12A-102891-RC12A-103393 1989
Suzuki RM 80 X 26 CV, 19 kw 1cil. RC12A L Bastidores: RC12A-103394-RC12A-104018 1990
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A M Bastidores: RC12A-104019-RC12A-104543 1991
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A N Bastidores: RC12A-104544-RC12A-105235 1992
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A P Bastidores: RC12A-105236-RC12A-105754 1993
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A R Bastidores: RC12A-105755-RC12A-106209 1994
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A S Bastidores: RC12A-106210-RC12A-106363 1995
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A T Bastidores: RC12A-106364-RC12A-106521 1996
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A V Bastidores: RC12A-106522-RC12A-106684 1997
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A W Bastidores: RC12A-106685-RC12A-106822 1998
Suzuki RM 80 X 27 CV, 20 kw 1cil. RC12A X Bastidores: RC12A-106823-- 1999
Suzuki RM 80 X 17 pulgadas 22 CV, 16 kw 1cil. RC11C D Bastidores: RC11C-100001-RC11C-103634 1983
Suzuki RM 80 X 17 pulgadas 22 CV, 16 kw 1cil. RC11C E Bastidores: RC11C-103635-- 1984
Suzuki RM 85 26 CV, 19 kw 1cil. RD16C K2 Bastidores: RD16C-21100001-- 2002
Suzuki RM 85 26 CV, 19 kw 1cil. RD16C K3 Bastidores: RD16C-31100001-- 2003
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K4 Bastidores: RD16C-41100001-- 2004
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K5 Bastidores: RD16C-51100001-- 2005
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K6 Bastidores: RD16C-61100001-- 2006
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K7 Bastidores: RD16C-71100001-- 2007
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K8 Bastidores: RD16C-81100001-- 2008
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C K9 Bastidores: RD16C-91100001-- 2009
Suzuki RM 85 29 CV, 21,5 kw 1cil. RD16C L0 Bastidores: RD16C-A1100001-- 2010-2013
Suzuki RM 85 L Grossrad 1cil. RD17C M2 Bastidores: RD17C henceforthN0000001-RD17C henceforthN0999999 2022
Suzuki RM 85 L rueda grande 1cil. RD17C L0 Bastidores: RD17C-A1100001-- 2010-2015
Suzuki RM 85 L rueda grande 1cil. RD17C L6 Bastidores: RD17C henceforthG0500001-- 2016-2017
Suzuki RM 85 L rueda grande 1cil. RD17C L8 Bastidores: RD17C henceforthJ0500001-RD17C henceforthJ0599999 2018
Suzuki RM 85 L rueda grande 1cil. RD17C L9 Bastidores: RD17C henceforthK0500001-RD17C henceforthK0599999 2019
Suzuki RM 85 L rueda grande 1cil. RD17C M0 Bastidores: RD17C henceforthL0100001-RD17C henceforthL0199999 2020
Suzuki RM 85 L rueda grande 1cil. RD17C M1 Bastidores: RD17C henceforthM0100001-RD17C henceforthM0999999 2021
Suzuki RM 85 L rueda grande 26 CV, 19 kw 1cil. RD17C K3 Bastidores: RD17C-31100001-- 2003
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K4 Bastidores: RD17C-41100001-- 2004
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K5 Bastidores: RD17C-51100001-- 2005
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K6 Bastidores: RD17C-61100001-- 2006
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K7 Bastidores: RD17C-71100001-- 2007
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K8 Bastidores: RD17C-81100001-- 2008
Suzuki RM 85 L rueda grande 29 CV, 21,5 kw 1cil. RD17C K9 Bastidores: RD17C-91100001-- 2009
Suzuki RV 125 Van Van 11,6 CV. 8,5 kw 1cil. WVBT1111 K7 Bastidores: BT1111 henceforth0111063-BT1111 henceforth0112755 2007
Suzuki RV 125 Van Van 11,6 CV. 8,5 kw 1cil. WVBT1111 K8 Bastidores: BT1111 henceforth0112756-BT1111 henceforth0115181 2008
Suzuki RV 125 Van Van 11,6 CV. 8,5 kw 1cil. WVBT1111 K9 Bastidores: BT1111 henceforth0115182-BT1111 henceforth0116732 2009
Suzuki RV 125 Van Van 11,8 CV. 8,7 kw 1cil. WVBT1111 K3 Bastidores: BT1111 henceforth0100001-BT1111 henceforth0103534 2003
Suzuki RV 125 Van Van 11,8 CV. 8,7 kw 1cil. WVBT1111 K4 Bastidores: BT1111 henceforth0103535-BT111-100106979 2004
Suzuki RV 125 Van Van 11,8 CV. 8,7 kw 1cil. WVBT1111 K5 Bastidores: BT1111 henceforth0106980-BT1111 henceforth0107684 2005
Suzuki RV 125 Van Van 11,8 CV. 8,7 kw 1cil. WVBT1111 K6 Bastidores: BT1111 henceforth0107685-BT1111 henceforth0111062 2006
Suzuki RV 125 Van Van 12 CV. 8,8 kw 1cil. WVBT1111 L0 Bastidores: BT1111 henceforth0116733-BT1111 henceforth0122088 2010-2012
Suzuki RV 125 Van Van 12 CV. 8,8 kw 1cil. WVBT1111 L3 Bastidores: BT1111 henceforth0122089-BT1111 henceforth0125553 2013-2014
Suzuki RV 125 Van Van 12 CV. 8,8 kw 1cil. WVBT1111 L5 Bastidores: BT1111 henceforth0125554-- 2015-2017
Suzuki RV 125 Van Van 8 CV, 6 kw 1cil. RV125 A Bastidores: RV125-43112-RV125-46525 1976
Suzuki RV 125 Van Van 8 CV, 6 kw 1cil. RV125 B Bastidores: RV125-46526-- 1977-1981
Suzuki RV 125 Van Van 8 CV, 6 kw 1cil. RV125 K Bastidores: RV125-10001-RV125-23434 1973
Suzuki RV 125 Van Van 8 CV, 6 kw 1cil. RV125 L Bastidores: RV125-23435-RV125-34029 1974
Suzuki RV 125 Van Van 8 CV, 6 kw 1cil. RV125 M Bastidores: RV125-34040-RV125-43111 1975
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 A Bastidores: RV90-85971-RV90-90673 1976
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 B Bastidores: RV90-90674-RV90-97129 1977-1981
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 K Bastidores: RV90-35601-RV90-47054 1973
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 L Bastidores: RV90-57055-RV90-70622 1974
Suzuki RV 90 Van Van 6,3 CV, 4,6 kw 1cil. RV90 M Bastidores: RV90-70623-RV90-85970 1975
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 K Bastidores: TS125-58493-TS125-74801 1973
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 L Bastidores: TS125-74802-TS125-98282 1974
Suzuki TS 125 13 CV, 9,5 kw 1cil. TS125 M Bastidores: TS125-98283-TS125-116375 1975
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS125 A Bastidores: TS125-116376-TS125-147378 1976
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS125 B Bastidores: TS125-147379-- 1977
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS1252 C Bastidores: TS1252-100001-TS1252-123870 1978
Suzuki TS 125 14 CV, 10,3 kw 1cil. TS1252 C2 Bastidores: TS1252-123871-- 1978
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 N Bastidores: TS1252-300032-TS1252-307474 1979
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 T Bastidores: TS1252-307475-TS1252-329768 1980
Suzuki TS 125 ER 10 CV, 7,4 kw 1cil. TS1252 X Bastidores: TS1252-329769-- 1981
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A E Bastidores: SC11A-100001-SC11A-104793 1984-1985
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A G Bastidores: SC11A-104794-SC11A-105405 1986
Suzuki TS 80 X 9,5 CV, 7 kw 1cil. SC11A H Bastidores: SC11A-105406-- 1987
