JT SPROCKETS coarse gear transmission pinion 13T P-520 4 Ø16/20MM 726.05.14

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

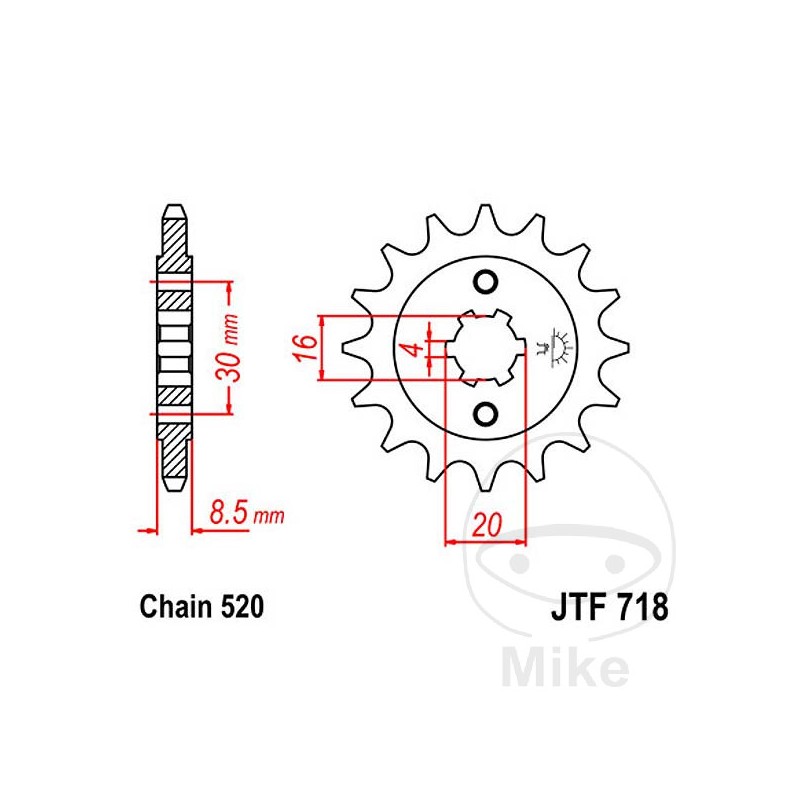

DIVISION: 520
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 30 MM
WIDTH: 8.5MM
VERSION: STANDARD
QTY TEETH: 13


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Husqvarna CR 125 37 CV, 27 kw 1cil. 1AE Bastidores: 1AE henceforth50001-1AE-50155 1992
Husqvarna CR 125 37 CV, 27 kw 1cil. 1AE Bastidores: 1AE henceforth50156-- 1993-1994
Husqvarna WR 125 35/10 CV, 26/7 kw 1cil. 1AE Bastidores: 1AE henceforth01190-- 1993
Husqvarna WR 125 35/10 CV, 26/7 kw 1cil. 1AE Bastidores: 1AE henceforth01842-- 1994
