JT SPROCKETS coarse gear transmission pinion 14T P-530 6 Ø21/25MM 726.05.06

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

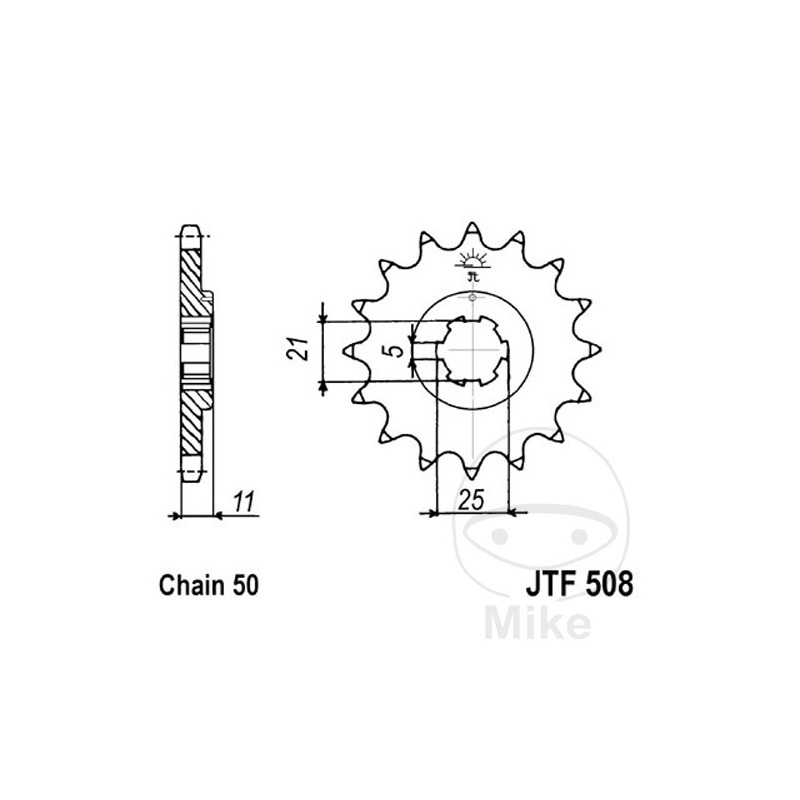

DIVISION: 525
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 10MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki H1 500 A Mach 3 60 CV, 44 kw 3cil. KAF Bastidores: KAF-23626-KAF-48762 1971
Kawasaki H1 500 B 54 CV, 40 kw 3cil. KAF Bastidores: KAF-48763-- 1972
Kawasaki H1 500 D 54 CV, 40 kw 3cil. H1F Bastidores: H1F henceforth0001-H1F-17000 1973
Kawasaki H1 500 E 58 CV, 42,6 kw 3cil. H1F Bastidores: H1F-17001-H1F-32399 1974
Kawasaki H1 500 F 58 CV, 42,6 kw 3cil. H1F Bastidores: H1F-32400-- 1975
Kawasaki H1 500 Mach 3 60 CV, 44 kw 3cil. KAF Bastidores: KAF henceforth0001-KAF henceforth6726 1969
Kawasaki H1 500 Mach 3 60 CV, 44 kw 3cil. KAF Bastidores: KAF henceforth6727-KAF-23625 1970
Kawasaki H2 750 A Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F-23671-H2F-32200 1973
Kawasaki H2 750 B Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F-32201-H2F-42546 1974
Kawasaki H2 750 C Mach 4 71 CV, 52 kw 3cil. H2F Bastidores: H2F-42547-- 1975
Kawasaki H2 750 Mach 4 74 CV, 54 kw 3cil. H2F Bastidores: H2F henceforth0001-H2F-23670 1972
Kawasaki KH 400 A 36 CV, 26 kw 3cil. S3F 3 Bastidores: S3F-26200-S3F-33600 1976
Kawasaki KH 400 A 36 CV, 26 kw 3cil. S3F 4 Bastidores: S3F-33601-- 1977-1978
Kawasaki S1 250 A Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F henceforth4691-S1F-12000 1973
Kawasaki S1 250 B Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F-12001-S1F-16299 1974
Kawasaki S1 250 C Mach 1 28 CV, 20,6 kw 3cil. S1F Bastidores: S1F-16300-- 1975
Kawasaki S2 350 A Mach 2 41 CV, 30 kw 3cil. S2F Bastidores: S2F henceforth0000-- 1973
Kawasaki S2 350 Mach 2 41 CV, 30 kw 3cil. S2F Bastidores: S2F henceforth0001-- 1972
Kawasaki S3 400 A Mach 2 40 CV, 29 kw 3cil. S3F Bastidores: S3F-14300-S3F-26199 1975
Kawasaki S3 400 Mach 2 40 CV, 29 kw 3cil. S3F Bastidores: S3F henceforth0001-S3F-14299 1974
