JT SPROCKETS coarse gear transmission pinion 13T P-428 6 Ø16/20MM 726.04.99

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

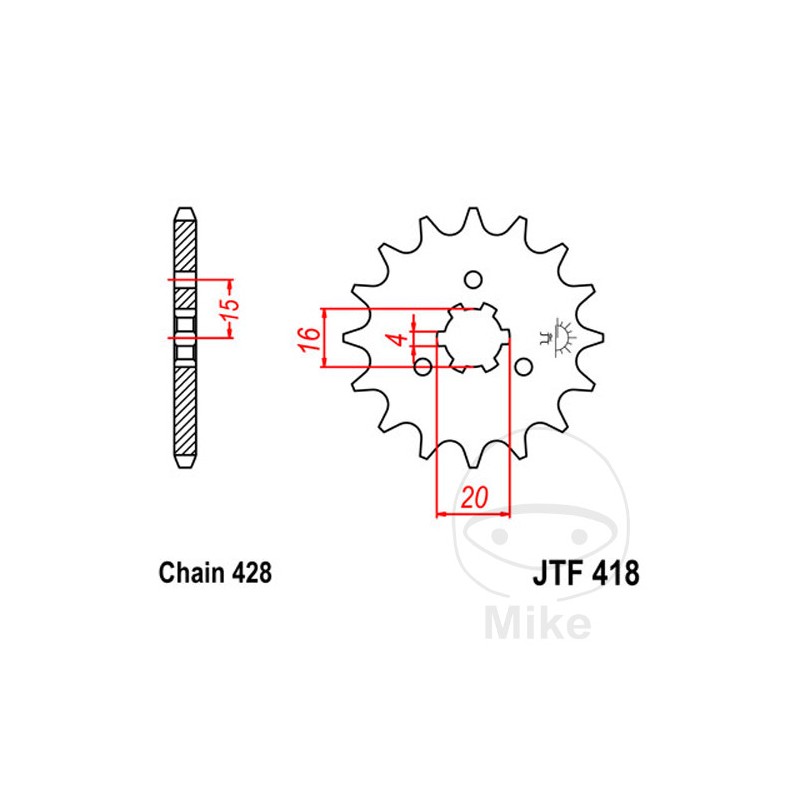

DIVISION: 428
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 16 MM
MAX INSIDE DIAMETER: 20 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 4 MM
QUANTITY OF HOLES: 3
HOLES DISTANCE: 15 MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Kawasaki KE 125 A 10 CV, 7,4 kw 1cil. K1 3 Bastidores: K1 henceforth33500-K1 henceforth48100 1976
Kawasaki KE 125 A 10 CV, 7,4 kw 1cil. K1 4 Bastidores: K1 henceforth48101-K1 henceforth60500 1977
Kawasaki KE 125 A 10 CV, 7,4 kw 1cil. K1 5 Bastidores: K1 henceforth60501-- 1978-1980
Kawasaki KE 125 A 10 CV, 7,4 kw 1cil. K1 8 Bastidores: K1 henceforth91501-- 1981-1982
Kawasaki KE 175 D 16 CV, 12 kw 1cil. KE175D 1 Bastidores: KE175D henceforth00101-KE175D henceforth00600 1979
Kawasaki KE 175 D 16 CV, 12 kw 1cil. KE175D 2 Bastidores: KE175D henceforth00601-KE175D henceforth09200 1980
Kawasaki KE 175 D 16 CV, 12 kw 1cil. KE175D 3 Bastidores: KE175D henceforth09201-KE175D henceforth16700 1981
Kawasaki KE 175 D 16 CV, 12 kw 1cil. KE175D 4 Bastidores: KE175D henceforth16701-- 1982
Kawasaki KE 175 F 16 CV, 12 kw 1cil. KE175D 1 Bastidores: KE175D henceforth16701-- 1982
Kawasaki KH 125 A 14/10 CV, 10/7,4 kw 1cil. KH125A 1 Bastidores: KH125A henceforth00001-- 1977
Kawasaki KH 125 A 14/10 CV, 10/7,4 kw 1cil. KH125A 2 Bastidores: KH125A henceforth00001-- 1978-1980
Kawasaki KX 125 1cil. - Bastidores: --- 1974
Kawasaki KX 125 A 1cil. - 2 Bastidores: --- 1975
Kawasaki KX 125 A 1cil. - 3 Bastidores: --- 1976-1977
Kawasaki KX 125 A 1cil. - 4 Bastidores: --- 1978
Kawasaki KX 125 A 1cil. - 5 Bastidores: --- 1979
