JT SPROCKETS coarse gear transmission pinion 14T P-530 5 Ø21/25MM 726.04.81

The JT Sprockets production is today the largest and most modern production facility for sprockets and sprockets in the world.

equipped with the latest generation of CNC manufacturing machines.

JT Sprockets produces the full range of sprockets and sprockets for the original equipment and aftermarket.



Each pinion and sprocket goes through 25 production stages and undergoes more than ten individual quality tests to successfully leave production.



JT Sprockets manufactures the right way: turning, milling, and drilling. This is the only way to achieve the highest quality with the lowest tolerances and the best tooth profile.

After subsequent heat treatment, each element is checked by hand; this is how JT Sprockets sets new standards of quality in the motorcycle industry.

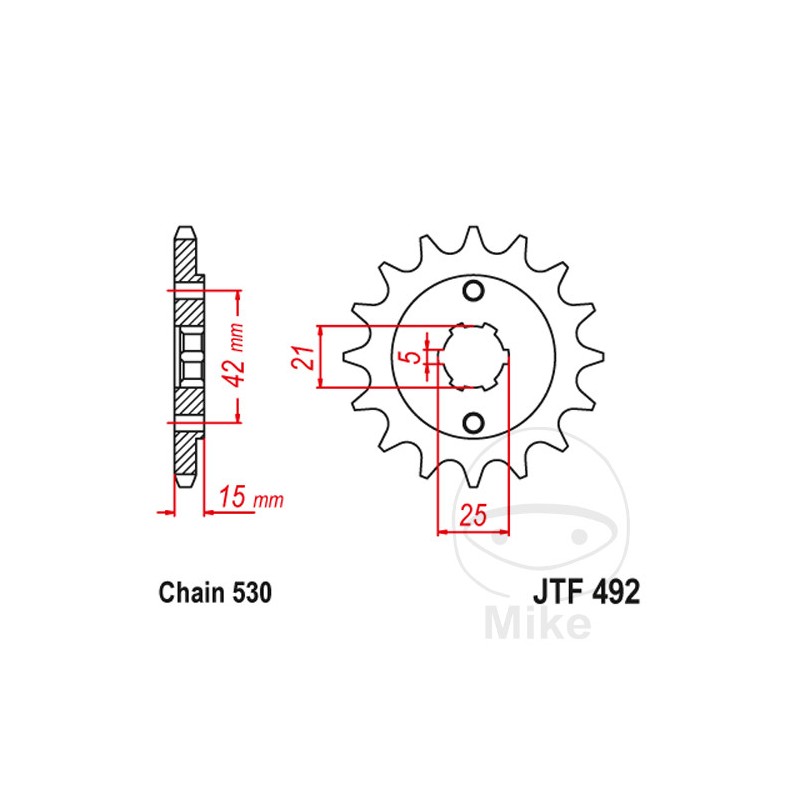

DIVISION: 530
CENTRAL FIXING: COARSE GEAR
INSIDE DIAMETER MIN.: 21 MM
MAX INTERNAL DIAMETER: 25 MM
INNER GEAR (QUANTITY OF TEETH): 6
INNER GEAR (DISTANCE): 5 MM
HOLES QUANTITY: 2
HOLES DISTANCE: 42 MM
WIDTH: 15MM
VERSION: STANDARD
QTY TEETH: 14


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Ducati F1 750 70 CV, 51,5 kw 2cil. 750F1 Bastidores: --- 1985-1988
Ducati Pantah 500 SL 46 CV, 34 kw 2cil. 500SL-PANT Bastidores: --- 1979-1983
Ducati Pantah 600 SL 56/50 CV, 41/37 kw 2cil. 600SL-PANT Bastidores: --- 1981-1984
Ducati Pantah 600 TL 56/50 CV, 41/37 kw 2cil. 600TL-PANT Bastidores: --- 1982-1984
Ducati Pantah 650 SL 58 CV, 42,6 kw 2cil. 650SL-PANT Bastidores: --- 1983-1985
