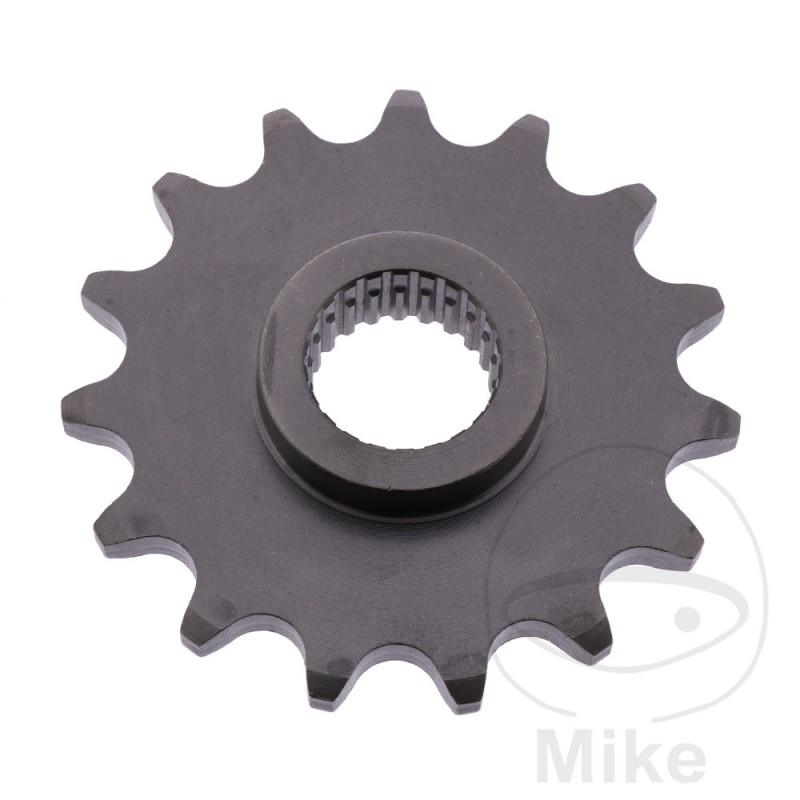

ESJOT Fine gear transmission pinion 15T P-520 Ø21.4/23MM 726.04.36

ESJOT sprocket has been specifically developed to meet OEM requirements and is among the world's best sprockets on the market.

A special steel, high-quality hardening and precise teeth provide extremely high strength and durability - ideal for wear-intensive conditions in all areas

- Steel 16 MnCR 5

- worked on CNC lathes

- hardening of 700 HV 40, for a depth of 0.4 mm

- modern broaching ensure a precise fit size on the motor shaft

- radial and axial run-out tolerance of less than 0.1 mm

- 100% Made in Germany

- OEM quality
DIVISION: 520
CENTRAL FIXATION: FINE GEAR
INSIDE DIAMETER MIN.: 21.4 MM
MAX INTERNAL DIAMETER: 23 MM
INNER GEAR (QUANTITY OF TEETH): 22
QUANTITY OF HOLES: WITHOUT HOLE
WIDTH: 12.4MM
VERSION: STANDARD
QTY TEETH: 15


APPLICATIONS OF THIS PRODUCT:
According to the data provided by the manufacturer, this article is compatible with the following brands, models and years:
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3K Bastidores: AG03W henceforth05863-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG03W 4D3P Bastidores: AG03W henceforth05602-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B2 Bastidores: AG06W henceforth00808-- 2009
Yamaha YFM 250 R SE Special Edition YFM25RSE 20 CV, 15 kw 1cil. AG06W 33B3 Bastidores: AG06W henceforth00656-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BT3 Bastidores: AG03W henceforth06736-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTA Bastidores: AG03W henceforth07473-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTH Bastidores: AG03W henceforth09546-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 1BTP Bastidores: AG03W henceforth10490-- 2013-2014
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D33 Bastidores: AG03W henceforth00047-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D37 Bastidores: AG03W henceforth00669-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3B Bastidores: AG03W henceforth00638-- 2008
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG03W 4D3F Bastidores: AG03W henceforth05034-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B1 Bastidores: AG06W henceforth00017-- 2009
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B4 Bastidores: AG06W henceforth01750-- 2010
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B5 Bastidores: AG06W henceforth02432-- 2011
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B7 Bastidores: AG06W henceforth03346-- 2012
Yamaha YFM 250 R YFM25R 20 CV, 15 kw 1cil. AG06W 33B8 Bastidores: AG06W henceforth03346-- 2013-2014
